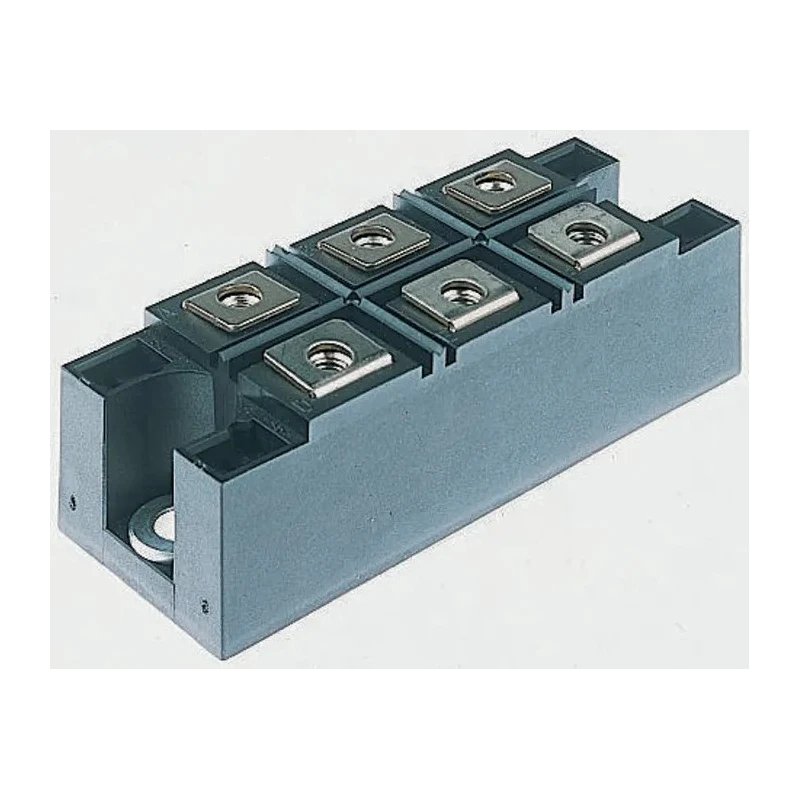

Vishay Bridge Rectifier Module 3-Phase Panel Mount INT-A-PAK Package 1600 V 110 A 1 kA VS-110MT160KPBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 30mm |
| Length | 94mm |
| Model | VS-110MT160KPBF |
| Width | 35mm |
| Mount Type | Panel |
| Series | VS-110MT |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | INT-A-PAK |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 3 |
| Pin Count | 6 |
| Peak Reverse Repetitive Voltage Vrrm | 1600V |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1kA |
| Forward Current If | 110A |
| Peak Forward Voltage Vf | 1.4V |
| Bridge rectifier,110MT80K 110A 800VBrand | Vishay |
| Diode,rectifier,bridge,3-phaseBrand | Vishay |
Key Features
- Three-phase configuration for efficient full-wave rectification.
- INT-A-PAK industry-standard package for easy panel mounting.
- High maximum operating temperature of 150°C ensures durability.
- Isolated electrically insulated case with 4000 Vrms isolation voltage.
- Six-pin design for reliable connections in power modules.
- Forward voltage of 1.4 V optimizes power efficiency.
- Wide operating temperature range from -40°C to 150°C.
- High peak non-repetitive surge current rating of 1 kA.
Product Description
Vishay VS-110MT160KPBF Bridge Rectifier Module is a robust three-phase full-wave rectification semiconductor module designed for industrial power conversion applications. The device converts alternating current (AC) input into a direct current (DC) output using a six-diode bridge configuration, optimized for high reliability and thermal performance.
This rectifier module is housed in the INT-A-PAK package, characterized by excellent power-to-volume ratio and high heat dissipation capability, supporting efficient electrical isolation with a 4000 Vrms isolation voltage. It is panel mountable, providing stability and ease of installation in complex electrical assemblies.
Its peak reverse repetitive voltage rating of 1600 V and forward current rating of 110 A make it suitable for demanding environments requiring high-voltage handling and significant current flow. The module supports surge conditions with a peak non-repetitive forward surge current of 1 kA, ensuring robustness against transient overloads.
The device operates reliably within the temperature range of -40°C to 150°C, making it suitable for industrial, laboratory, and manufacturing settings involving high thermal stress. The forward voltage drop of 1.4 V contributes towards minimizing power losses during operation.
Three-phase bridge rectifier configuration using six diodes. Panel mountable INT-A-PAK package ensuring mechanical and electrical stability. High thermal conductivity package for efficient heat dissipation. Electrical isolation at 4000 Vrms for safety and performance.

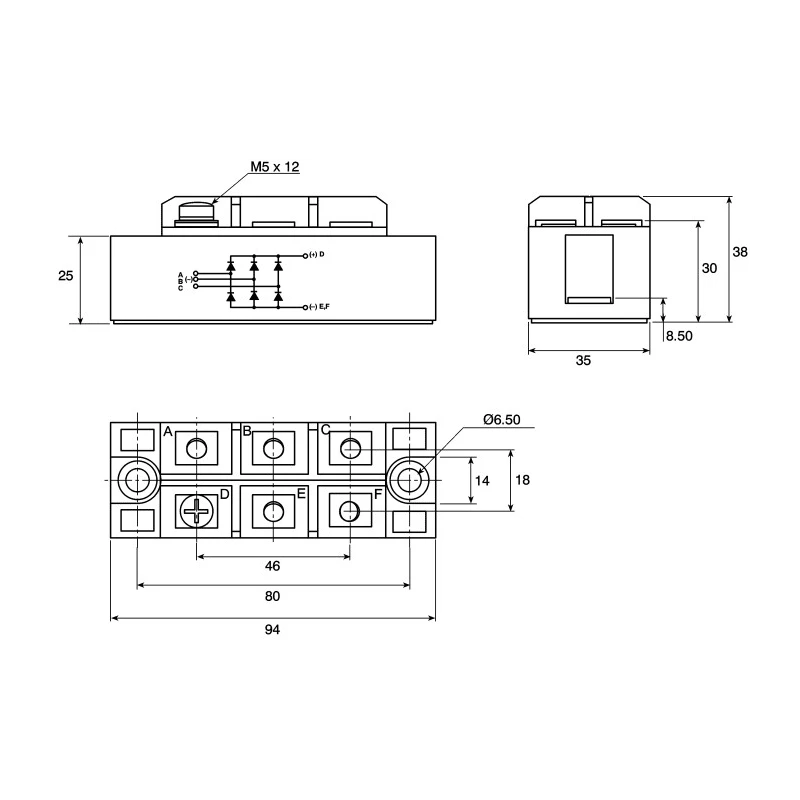

Rated for 110 A forward current and 1600 V reverse voltage. Peak non-repetitive surge current of 1 kA for transient protection. Wide operating temperature range from -40°C to 150°C. Compact dimensions of 94 mm (L) x 35 mm (W) x 30 mm (H).
Suitable for use in power electronics, HVAC, and industrial automation.
This Vishay Bridge Rectifier Module is ideal for incorporation into power rectification circuits requiring reliable three-phase conversion, such as in industrial motor drives, power supplies, and automation equipment. EnvMart offers this module for applications demanding high performance and durability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this module is 150°C.
The forward current rating of this model is 110 A.
This rectifier module has a peak reverse repetitive voltage rating of 1600 V.
It is designed for panel mounting, providing stability and ease of installation.
The peak non-repetitive forward surge current rating is 1 kA.
The dimensions are 94 mm in length, 35 mm in width, and 30 mm in height.
The forward voltage drop is 1.4 V, which helps minimize power losses during operation.
The minimum operating temperature is -40°C.
This model supports a three-phase configuration for efficient full-wave rectification.
It comes in an INT-A-PAK package, which is designed for high heat dissipation and electrical isolation.
This module features a six-pin design for reliable connections in power modules.
It is suitable for industrial power conversion applications, including motor drives and power supplies.
