Samtec TLE Series Straight Surface PCB Socket, 10-Contact, 2 Row, 2 mm Pitch, 3.2 A Current, Solder TLE-105-01-G-DV

Free Delivery in India | Lowest Global Shipping Charges

Samtec TLE Series Straight Surface PCB Socket, 10-Contact, 2 Row, 2 mm Pitch, 3.2 A Current, Solder TLE-105-01-G-DV

Name: Samtec TLE Series Straight Surface PCB Socket, 10-Contact, 2 Row, 2 mm Pitch, 3.2 A Current, Solder TLE-105-01-G-DV
Brand: Samtec
SKU: 130382
Price: 2.9 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Brand	Samtec
Orientation	Straight
Current	3.2A
Temperature range	-55 → 125 °C
Model	TLE-105-01-G-DV
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Bronze
Series	TLE
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2mm
Contact Plating	Gold
Number of Contacts	10
Contact Gender	Female
Connector System	Board-to-Board
Insulator Material	Black LCP

Key Features

This socket uses a solder termination type suitable for SMT applications.
Constructed with a Liquid Crystal Polymer housing material ensuring durability and heat resistance.
The contacts are made of bronze with gold plating to provide reliable electrical connection and corrosion resistance.
Capable of carrying a current of 3.2 A with operation temperatures ranging from -55 to 125 °C.
Designed with a straight orientation and a female contact gender for compatibility with TLE series connectors.
Black LCP insulator material supports stable mechanical and thermal performance.
Connector system is board-to-board, supporting dual row configurations for dense PCB layouts.
Features Tiger Beam contacts with 0.25 μm gold plating on both contact and PCB tail areas.

Product Description

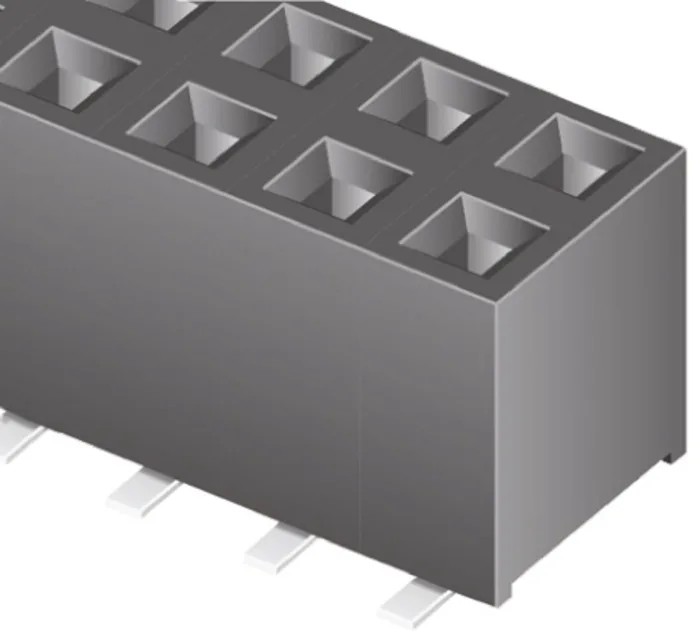

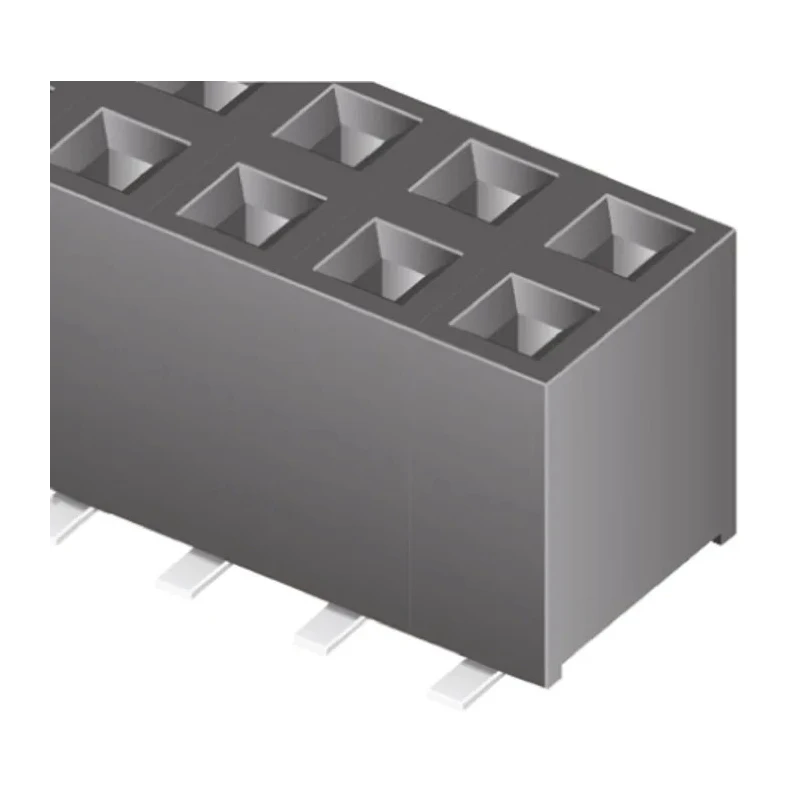

Samtec TLE-105-01-G-DV is a high-quality straight surface mount PCB socket designed for board-to-board connections. It incorporates 10 contacts arranged in 2 rows with a 2 mm pitch, optimized for reliable solder termination in surface mount technology (SMT) applications.

The housing is made from black Liquid Crystal Polymer (LCP), providing strong mechanical stability and excellent temperature resistance from -55 °C to 125 °C, suitable for demanding industrial electronics environments.

The contact material is bronze plated with 0.25 μm of gold, offering superior conductivity and corrosion resistance. The Tiger Beam contact design ensures a secure and long-lasting electrical connection, both at the contact area and reliable solder tails on the PCB.

This socket is designed with a straight orientation and a female contact gender to perfectly mate with TLE series headers, ensuring seamless board-to-board interfacing in dual-row configurations. The row pitch is 2 mm, matching the connector pitch for precise alignment.

Its current rating of 3.2 A supports moderate power signal transmission making it ideal for various electronic components and industrial equipment. Solder termination type supports reliable surface mounting. Durable black LCP housing material for high performance.

Gold-plated bronze contacts resist corrosion and maximize conductivity. Tiger Beam contacts for enhanced electrical connection reliability. Wide temperature operating range from -55 °C to 125 °C. Designed for board-to-board SMT applications in industrial and commercial electronics.

10 contacts in 2 rows with 2 mm pitch for dense PCB layouts. Straight orientation female socket for versatile mating options. Row pitch of 2 mm matches common header components.

This Samtec TLE series PCB socket is commonly utilized in electronics manufacturing, industrial control systems, automation equipment, and embedded device interconnections where reliable and durable PCB connectors are critical.

Explore more PCB Sockets and connector solutions at EnvMart to fulfill your industrial and electronics component needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a current rating of 3.2 A, suitable for moderate power signal transmission.

It operates within a temperature range of -55 °C to 125 °C, making it suitable for demanding industrial environments.

The housing is made from Liquid Crystal Polymer (LCP), while the contacts are bronze with gold plating for enhanced conductivity and corrosion resistance.

This socket features 10 contacts arranged in 2 rows, with a 2 mm pitch.

It utilizes a solder termination type, which is suitable for surface mount technology (SMT) applications.

This socket is designed with a straight orientation, facilitating easy mating with compatible connectors.

The contact gender of this model is female, allowing it to mate with TLE series headers.

The pitch of the contacts is 2 mm, which matches common header components for precise alignment.

It supports a board-to-board connector system, suitable for dense PCB layouts.

The Tiger Beam contact design enhances the reliability of the electrical connection, ensuring secure mating at both the contact area and solder tails.

This socket is manufactured in India, ensuring compliance with local manufacturing standards.

It is commonly utilized in electronics manufacturing, industrial control systems, and embedded device interconnections.
