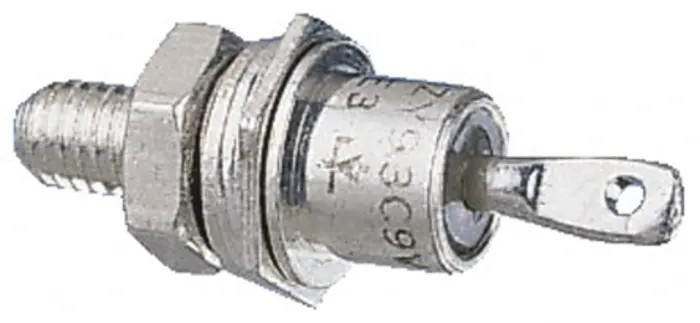

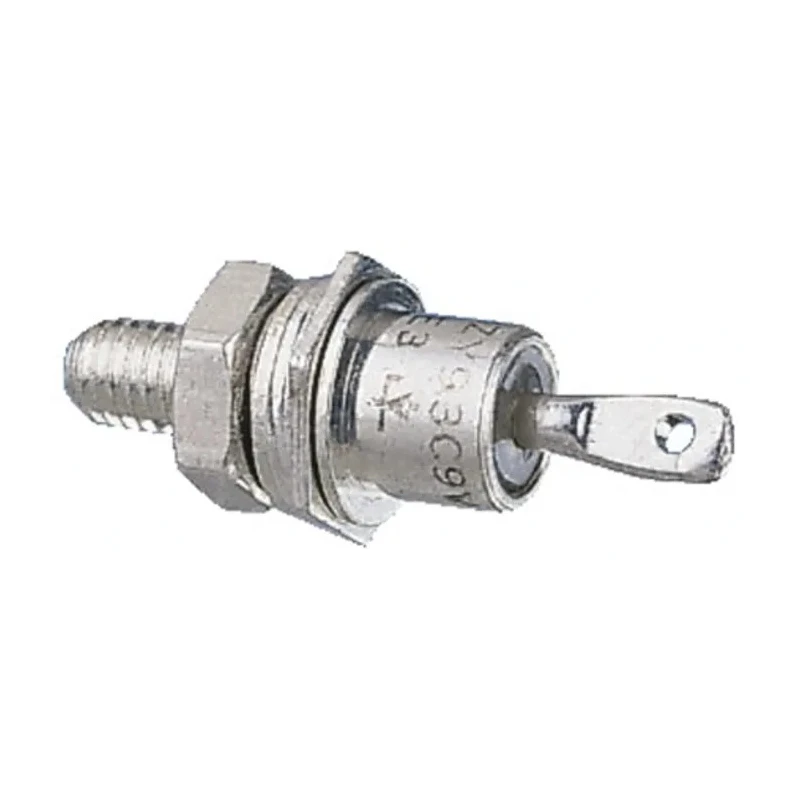

Vishay 600 V 85 A Fast Recovery Diode 2-Pin DO-203AB VS-85HFLR60S02

Free Delivery in India | Lowest Global Shipping Charges

Vishay 600 V 85 A Fast Recovery Diode 2-Pin DO-203AB VS-85HFLR60S02

Name: Vishay 600 V 85 A Fast Recovery Diode 2-Pin DO-203AB VS-85HFLR60S02
Brand: Vishay
SKU: 376767
Price: 16.91 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	17.35mm
Brand	Vishay
Height	17.35mm
Length	36.5mm
Model	VS-85HFLR60S02
Mount Type	Screw
Series	VSX
Maximum Operating Temperature	125°C
Package Type	DO-203AB
Minimum Operating Temperature	-40°C
Pin Count	2
Maximum Continuous Forward Current If	85A
Peak Reverse Repetitive Voltage Vrrm	600V
Diode Configuration	Stud Anode
Rectifier Type	Fast Recovery
Peak Reverse Current Ir	20mA
Peak Non-Repetitive Forward Surge Current Ifsm	1.4kA
Maximum Forward Voltage Vf	1.75V
Peak Reverse Recovery Time trr	200ns

Key Features

This diode supports a maximum continuous forward current of 85 amperes.
It features a peak reverse repetitive voltage of 600 volts suitable for demanding power applications.
The device has a peak reverse recovery time of 200 nanoseconds for swift switching.
Operating temperature range extends from -40° to 125°C ensuring durability in harsh environments.
The diode uses a stud anode configuration in an industry-standard DO-203AB package.
It supports a peak non-repetitive forward surge current of 1.4 kiloamperes for transient tolerance.
The maximum forward voltage drop is 1.75 volts minimizing power loss during conduction.
Pin count is 2, designed for screw mounting to enable reliable electrical connection.

Product Description

Vishay VS-85HFLR60S02 is a high-performance fast recovery diode designed for industrial and power electronic applications requiring efficient high-current rectification.

The diode features a maximum continuous forward current of 85 amperes and withstands reverse voltages up to 600 volts, ensuring reliability in power conversion and protection circuits.

Its fast recovery time of 200 nanoseconds allows rapid switching to minimize switching losses and electromagnetic interference.

The device is packaged in a durable DO-203AB 2-pin stud anode package with screw mounting, facilitating easy integration into equipment and ensuring stable mechanical and electrical connections.

With an operating temperature range from -40°C to 125°C, this diode delivers robust performance across various industrial environments, including manufacturing, power supplies, motor drives, and HVAC systems.

This diode supports a maximum continuous forward current of 85 amperes. It features a peak reverse repetitive voltage of 600 volts suitable for demanding power applications. The device has a peak reverse recovery time of 200 nanoseconds for swift switching.

Operating temperature range extends from -40° to 125°C ensuring durability in harsh environments. The diode uses a stud anode configuration in an industry-standard DO-203AB package. It supports a peak non-repetitive forward surge current of 1.4 kiloamperes for transient tolerance.

The maximum forward voltage drop is 1.75 volts minimizing power loss during conduction. Pin count is 2, designed for screw mounting to enable reliable electrical connection. Explore a broad range of Vishay semiconductor devices and fast recovery rectifiers on EnvMart for your contemporary electronic engineering needs.
