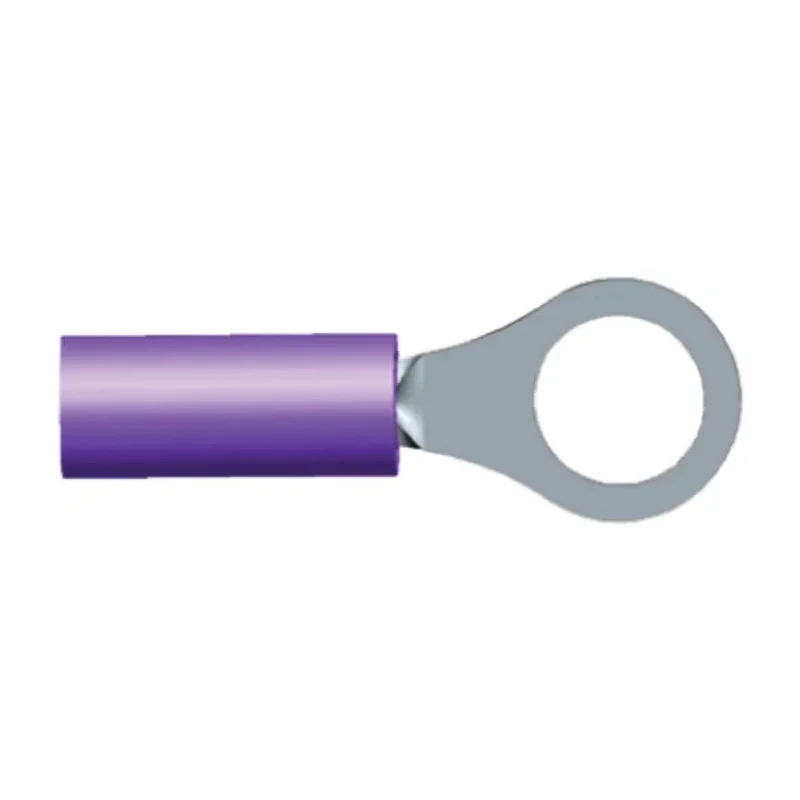

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 20 AWG Wire Size Nylon Purple 152894

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 20 AWG Wire Size Nylon Purple 152894

Name: TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 20 AWG Wire Size Nylon Purple 152894
Brand: TE Connectivity
SKU: 356193
Price: 5.94 USD
Availability: InStock



Category Ring Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Colour	Purple
THICKNESS	0.79mm
Model	152894
Insulation	Insulated
Overall Length	19.99mm
Contact Material	Copper
Series	PIDG
Maximum Operating Temperature	105°C
Insulation Material	Nylon
Standards/Approvals	RoHS
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	710-5385PBrand: TE ConnectivityManufacturers Part No.: 152894
Contact Plating	Tin
Minimum Wire Size mm²	0.4mm²
Maximum Wire Size mm²	0.65mm²
Minimum Wire Size AWG	20AWG
Outer Ring Diameter	7.14mm
Inner Ring Diameter	4.34mm
Stud Size	M4

Key Features

High conductivity copper body ensures efficient electrical performance.
Nylon insulated sleeve in purple color for easy wire size identification.
Precision-formed ring terminal with 7.14mm outer ring diameter and 4.34mm inner ring diameter.
Compatible with 20 AWG wire size with insulation support from copper sleeve.
Designed for industrial and commercial electrical connection applications.
Operating temperature up to 105°C for demanding environmental conditions.
Features serrations inside wire barrel for maximum contact and tensile strength after crimping.
Meets RoHS standards for environmental compliance.

Product Description

TE Connectivity 152894 PIDG Insulated Ring Terminal is engineered for electrical and power connector applications requiring a reliable M4 stud size connection and suitable for 20 AWG wire size. This ring terminal features a copper contact material with tin plating for excellent conductivity and corrosion resistance.

The terminal incorporates a nylon insulated sleeve colored purple for quick wire size identification and enhanced insulation support, while the copper sleeve inside improves wire support and prevents fraying. The 7.14mm outer ring diameter and 4.34mm inner ring diameter provide compatibility with standard M4 studs. Its overall length is approximately 19.99mm with a thickness of 0.79mm, allowing secure and durable electrical connections.

Designed for industrial use, this PIDG terminal series offers high reliability with serrations inside the barrel to maximize contact and tensile strength after crimping. The funnelled wire entry facilitates fast wire insertion, improving production efficiency in assembly processes.

This ring terminal is RoHS compliant and rated for maximum operating temperatures of 105°C, ensuring safe use in demanding and high-temperature environments. Applications include instrumentation, control panels, power supplies, lighting, transportation, motors, aerospace, and appliance wiring systems.

Overall, the TE Connectivity PIDG Insulated Ring Terminal 152894 delivers a trustworthy and versatile solution for electrical connection needs in manufacturing, HVAC, automotive, and other industrial sectors.

High conductivity copper body. Color-coded nylon insulation sleeve. Compatible with 20 AWG wire size. Improved wire insulation support by copper sleeve. Serrated barrel for enhanced electrical contact. Funnelled wire entry for easy insertion.
