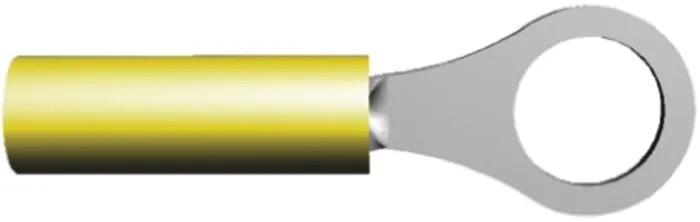

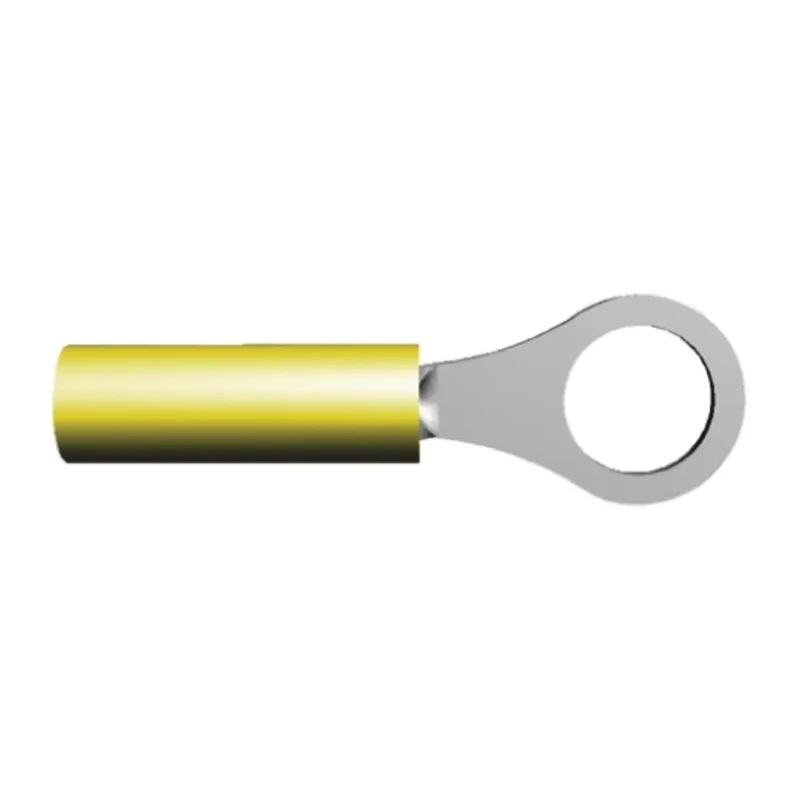

TE Connectivity PIDG Insulated Ring Terminal M3.5 Stud Size, 26 AWG - 22 AWG Wire Size, Yellow 321019
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| THICKNESS | 0.79mm |
| Model | 321019 |
| Insulation | Insulated |
| Overall Length | 16.4mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 719-6120Brand: TE ConnectivityManufacturers Part No.: 321019 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.4mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Outer Ring Diameter | 5.16mm |
| Inner Ring Diameter | 3.68mm |
| Stud Size | M3.5 |
Key Features
- Constructed with high conductivity copper body for optimal electrical performance.
- Features a copper sleeve enhancing wire insulation support and preventing fraying.
- Serrated wire barrel provides maximum contact and tensile strength after crimping.
- Colour coded nylon insulation sleeve enables easy wire size identification.
- Funnelled wire entry allows fast and reliable wire insertion during production.
- Rated for maximum operating temperature of 105°C for durable usage.
- Compatible with a range of wiring applications including instruments, lighting, panel boxes, and aerospace.
- Designed to meet or exceed MIL-T-7928, Type II, Class 1 and 2 standards.
Product Description
TE Connectivity 321019 PIDG Insulated Ring Terminal is designed with a high conductivity copper body and tin plating for superior electrical contact and corrosion resistance. Featuring an M3.5 stud size and compatible with wire sizes from 26 AWG to 22 AWG, this ring terminal incorporates a nylon insulated yellow sleeve to facilitate effortless wire size identification.
The design includes a copper sleeve around the wire barrel improving insulation support and preventing fraying for secure connections. Serrations inside the wire barrel ensure maximum contact and tensile strength after crimping, providing a consistent, reliable electrical connection.
The funnelled wire entry enables quick wire insertion, making it suitable for high-speed production environments. The ring terminal is rated for a maximum operating temperature of 105°C, making it ideal for demanding industrial and commercial applications.
Applications span diverse fields such as instrumentation, lighting, power supplies, control panels, transportation, motors, aerospace, and lifting equipment. This product meets or surpasses stringent standards including MIL-T-7928, Type II, Class 1 and 2, ensuring performance reliability and safety in electrical systems.
Constructed with a high conductivity copper body for efficient electrical flow. Copper sleeve enhances wire insulation and prevents fraying. Serrated barrel delivers strong and reliable crimp connections. Colour coded nylon sleeve simplifies wire size and tooling identification.
Funnelled wire entry for improved wire insertion speed and reliability. Suitable for industrial, manufacturing, aerospace, and electrical distribution uses. Compliance with RoHS standards assures environmental safety. Dimensions: Outer Ring Diameter 5.16mm, Inner Ring Diameter 3.68mm, Thickness 0.79mm, Overall Length 16.4mm.
Stud Size M3.5 with Yellow insulation.
Choose this TE Connectivity PIDG Insulated Ring Terminal for dependable and efficient electrical connections across a broad range of industrial and commercial applications. Explore more products within the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ring terminal is rated for a maximum operating temperature of 105°C.
It is compatible with wire sizes ranging from 26 AWG to 22 AWG.
The stud size for this terminal is M3.5.
This model features a high conductivity copper body with tin plating for superior electrical contact and corrosion resistance, and it has a nylon insulation sleeve.
The outer ring diameter is 5.16mm, the inner ring diameter is 3.68mm, and the thickness is 0.79mm, with an overall length of 16.4mm.
It features a serrated wire barrel that provides maximum contact and tensile strength after crimping, ensuring a reliable electrical connection.
Yes, it meets or exceeds MIL-T-7928, Type II, Class 1 and 2 standards, and complies with RoHS standards for environmental safety.
This terminal is suitable for a variety of applications including instrumentation, lighting, power supplies, control panels, transportation, motors, aerospace, and lifting equipment.
The funnelled wire entry allows for fast and reliable wire insertion, making it suitable for high-speed production environments.
The insulation material used is nylon, which aids in wire size identification and enhances insulation support.
The contact material is copper, which ensures efficient electrical flow.
The thickness of the terminal is 0.79mm.
