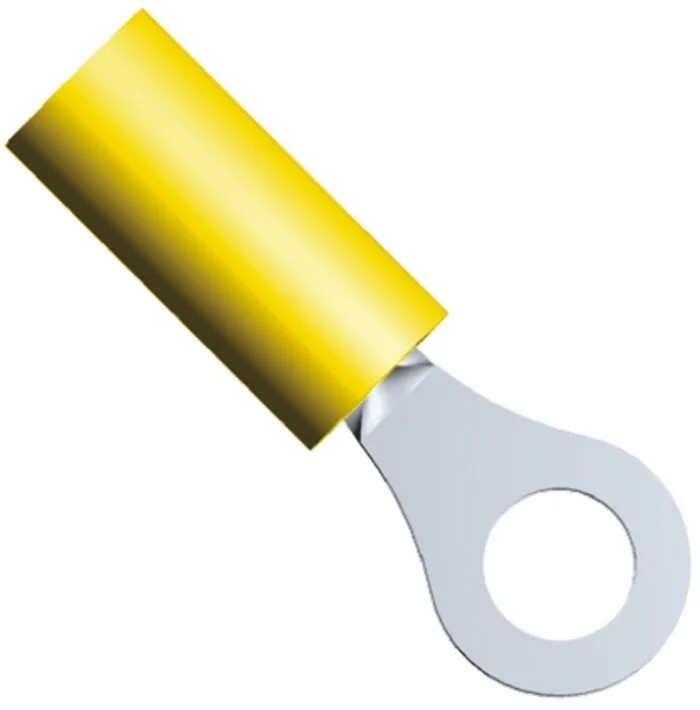

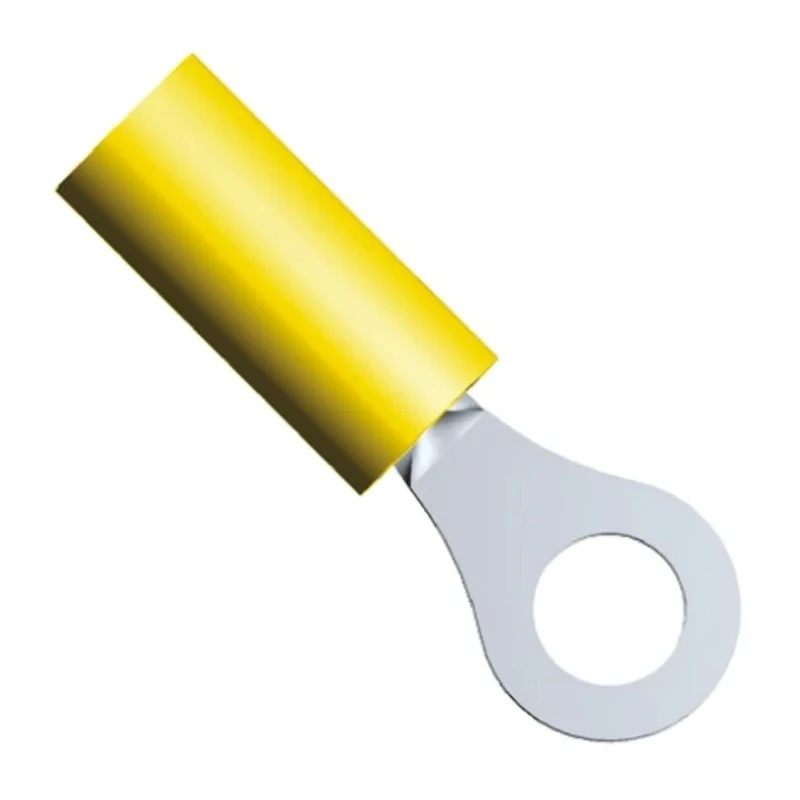

TE Connectivity PIDG Insulated Ring Terminal M3.5 Stud Size 26 AWG 24 AWG Wire Size Yellow 53073
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| THICKNESS | 0.74mm |
| Model | 53073 |
| Insulation | Insulated |
| Overall Length | 0.792in |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.26mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 24AWG |
| Outer Ring Diameter | 0.25in |
| Inner Ring Diameter | 0.145in |
| Stud Size | M3.5 |
Key Features
- Constructed with high conductivity copper body ensuring excellent electrical performance.
- Features nickel-plated copper sleeve for enhanced wire insulation support and strand protection.
- Precision serrations in the wire barrel provide maximum contact and tensile strength after crimping.
- Color-coded nylon insulation sleeve enables easy wire size and tooling identification.
- Funnel-shaped wire entry prevents wire strand fraying and allows fast insertion during high-volume production.
- Suitable for use in instruments, power supplies, panel boxes, aerospace, automotive, and industrial applications.
- Meets or exceeds military specifications MIL-T-7928, Type II, Class 1 and 2 for durability and reliability.
- Designed for uniform and reliable crimps with specialized crimping tools.
Product Description
TE Connectivity 53073 PIDG Insulated Ring Terminal is designed to provide reliable and uniform connections in electronic and electrical systems. It features a high conductivity copper body with a tin-plated finish on the contacts to ensure excellent conductivity and corrosion resistance. The insulated nylon sleeve, colored yellow, aids in quick wire size identification and protects the termination from environmental factors. This ring terminal fits an M3.5 stud and supports wire sizes from 26 AWG to 24 AWG, making it versatile for various wiring tasks.
The terminal barrel contains serrations that secure the wire strands firmly, preventing loosening or disconnection, while the copper sleeve around the wire barrel supports insulation and prevents fraying of wire strands. The funnelled entry design facilitates quick and reliable insertion of wires, which is beneficial for high-speed production environments.
These PIDG Ring Terminals conform to MIL-T-7928 standards, ensuring suitability for critical applications including instrumentation, control panels, automotive wiring, aerospace assemblies, and power supply connections. Their robust construction supports safe and efficient electrical connections under demanding industrial and commercial conditions.
High conductivity copper body ensures efficient electrical flow. Copper sleeve enhances wire insulation support and prevents fraying. Serrated barrel provides strong mechanical bond with wire strands. Yellow nylon insulation aids identification and environmental protection.
Funnelled wire entry supports quick wire insertion. Complies with MIL-T-7928 standards for high reliability. Suitable for industrial, automotive, aerospace, and instrumentation applications. Reliable performance at maximum operating temperature of 105°C.
This terminal is manufactured in the United States to stringent quality standards. It is ideal for industrial, laboratory, manufacturing, electrical, and automotive wiring tasks that demand durable, consistent connectivity solutions. EnvMart offers this TE Connectivity PIDG terminal for professionals requiring dependable high-quality wire terminations.
Explore related connectors and terminals in the Electronics & Electricals category at EnvMart for comprehensive wiring solutions.
