TE Connectivity PIDG Insulated Ring Terminal 1.68 mm Stud Size 26 AWG 22 AWG Wire Size Yellow 321013

Free Delivery in India | Lowest Global Shipping Charges

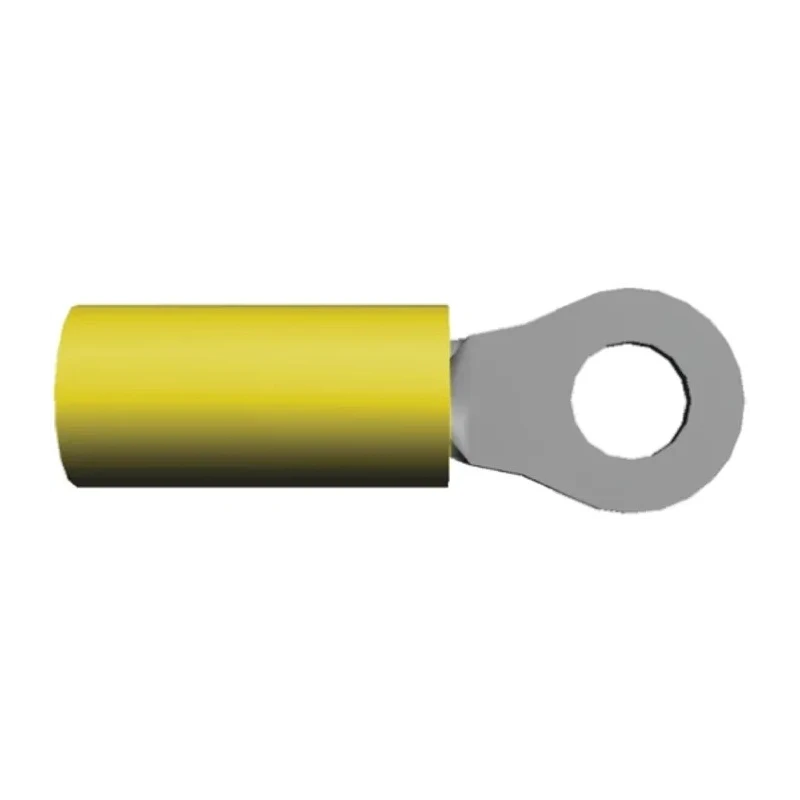

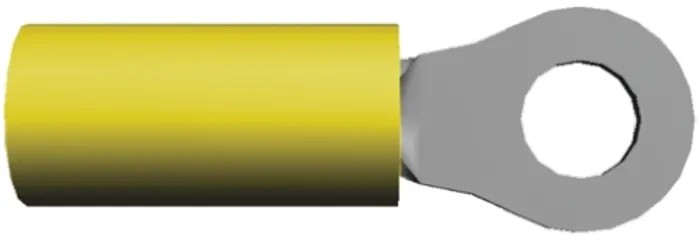

TE Connectivity PIDG Insulated Ring Terminal 1.68 mm Stud Size 26 AWG 22 AWG Wire Size Yellow 321013

Name: TE Connectivity PIDG Insulated Ring Terminal 1.68 mm Stud Size 26 AWG 22 AWG Wire Size Yellow 321013
Brand: TE Connectivity
SKU: 372050
Price: 0.92 USD
Availability: InStock



Category Ring Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	United States
Brand	TE Connectivity
Colour	Yellow
THICKNESS	0.5mm
Model	321013
Insulation	Insulated
Overall Length	13.36mm
Contact Material	Copper
Series	PIDG
Maximum Operating Temperature	105°C
Insulation Material	Nylon
Minimum Operating Temperature	-40°C
Contact Plating	Tin
Minimum Wire Size mm²	0.1mm²
Maximum Wire Size mm²	0.4mm²
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	22AWG
Outer Ring Diameter	3.56mm
Inner Ring Diameter	1.7mm
Stud Size	1.68 mm

Key Features

Constructed with high conductivity copper and tin plating for optimal electrical performance.
Features a nylon insulated sleeve for improved wire insulation support and color coding.
Overall length of 13.36 mm with a thickness of 0.5 mm ensures compact design.
Copper sleeve inside barrel prevents wire fraying and serrations provide excellent tensile strength.
Suitable for temperatures ranging from -40°C to 105°C for versatile industrial applications.
Compliant with PIDG series design for uniform and reliable crimps.
Designed for easy wire insertion with funnelled wire entry to enhance production efficiency.
Yellow color aids quick wire size identification during installation.

Product Description

TE Connectivity 321013 PIDG insulated ring terminal, featuring a 1.68 mm stud size and compatible with wire sizes from 26 AWG to 22 AWG, with yellow nylon insulation for clear wire size identification.

This ring terminal is engineered with a precision-formed high conductivity copper body and barrel, enhanced with tin plating to prevent corrosion and ensure long-lasting electrical contact.

The terminal includes a copper sleeve inside the barrel that prevents wire fraying, complemented by serrations in the barrel that deliver maximum contact and tensile strength after crimping.

The outer nylon sleeve provides durable insulation, improving wire support and preventing electrical shorts. The funnelled wire entry design facilitates fast wire insertion during high-speed manufacturing processes. The color-coded yellow sleeve allows for quick and easy wire size recognition.

Operating temperature ranges from -40°C to a maximum of 105°C, making it suitable for various industrial, electronic, automotive, aerospace, and manufacturing applications.

These terminals meet high reliability demands, useful in instruments, control panels, lighting systems, power supplies, and transportation equipment. They provide a secure and consistent crimp that aids in maintaining circuit integrity in demanding environments.

High conductivity copper body with tin plating for corrosion resistance. Copper sleeve for improved wire insulation support and prevention of wire fraying. Serrated barrel for maximum contact and tensile strength. Color-coded nylon sleeve for easy identification and insulation.

Funnelled wire entry allowing easy and quick wire insertion. Supports wire sizes ranging from 26 AWG to 22 AWG. Temperature rating from -40°C to 105°C for extended industrial use. Ideal for electronic, automotive, aerospace, and manufacturing applications.
