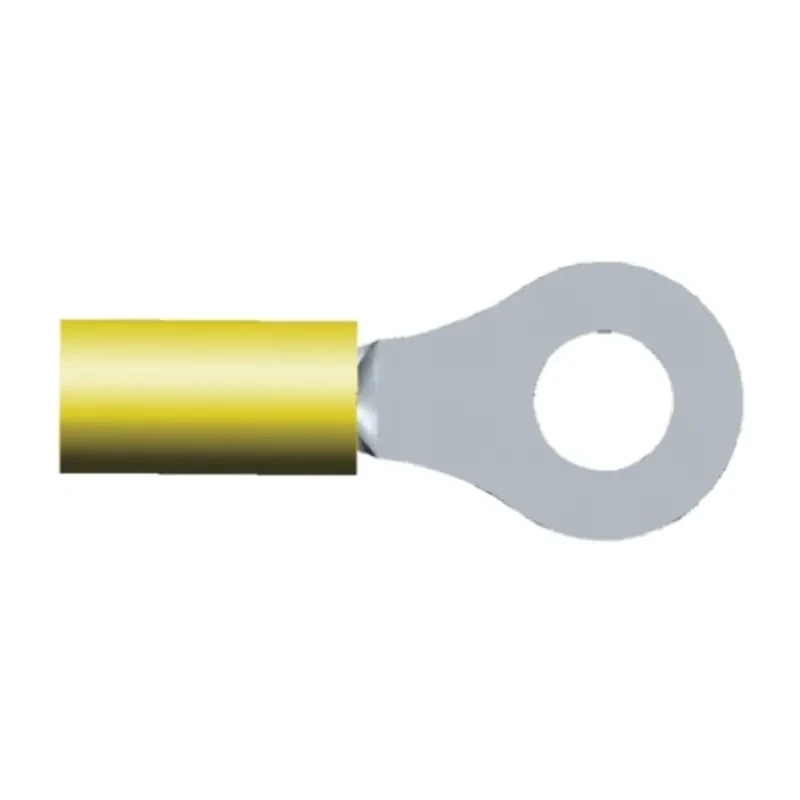

TE Connectivity PIDG Insulated Ring Terminal M6 Stud Size Yellow 12 AWG 10 AWG Wire Size 2-35110-1
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| THICKNESS | 0.79mm |
| Insulation | Insulated |
| Overall Length | 33.58mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 719-6158Brand: TE ConnectivityManufacturers Part No.: 2-35110-1 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 2.6mm² |
| Maximum Wire Size mm² | 6.6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 0.531mm |
| Inner Ring Diameter | 0.265mm |
| Stud Size | M6 |
Key Features
- Constructed with a high conductivity copper body for reliable electrical connection.
- Features copper sleeve for improved wire insulation support and prevention of wire fraying.
- Serrations in the wire barrel ensure maximum contact and strong tensile strength after crimping.
- Colour coded yellow nylon sleeve enables easy wire size identification and tooling.
- Funnelled wire entry facilitates fast and easy wire insertion during production.
- Operates reliably up to a maximum temperature of 105°C.
- Complies with RoHS standards ensuring material safety and environmental compliance.
- Designed for use in instrumentation, control panels, power supplies, transportation, aerospace, and appliances.
Product Description
TE Connectivity 2-35110-1 is a PIDG Insulated Ring Terminal featuring an M6 stud size and designed for wire sizes ranging from 12 AWG to 10 AWG with yellow nylon insulation. The terminal has an overall length of 33.58mm and a thickness of 0.79mm, optimizing it for secure electrical connections in demanding environments.
This ring terminal's high conductivity copper construction with tin plating ensures excellent electrical performance and corrosion resistance. Its copper sleeve surrounds the wire barrel, providing enhanced insulation support and preventing wire fraying. Serrations inside the wire barrel maximize contact and tensile strength after crimping, resulting in a uniform and reliable crimp.
The terminal includes a funnelled wire entry which allows fast wire insertion, boosting efficiency during high-speed production processes. The outer yellow nylon sleeve not only provides insulation but also aids in quick wire size identification and tooling.
TE Connectivity PIDG Ring Terminals are engineered to meet or exceed standards such as RoHS and operate effectively up to 105°C. They are suitable for a wide range of industrial, commercial, and aerospace applications including control instruments, lighting systems, power supplies, panel boxes, transportation equipment, motors, lifting gear, and appliances.
High conductivity copper body with tin plating for reliable electrical connection. Copper sleeve enhances wire insulation support and prevents fraying. Serrated wire barrel ensures maximum contact and tensile strength. Colour coded nylon insulation sleeve for easy wire size identification.
Funnelled wire entry facilitates quick wire insertion during crimping. Complies with RoHS environmental and safety standards. Suitable for temperatures up to 105°C. Ideal for instrumentation, aerospace, transportation, and industrial control applications.
Manufactured in the United States ensuring quality and reliability. Part of the PIDG series designed for uniform and durable crimps. Explore the wide range of TE Connectivity PIDG terminals at EnvMart for reliable and efficient wiring solutions in industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates reliably up to a maximum temperature of 105°C.
It is designed for wire sizes ranging from 12 AWG to 10 AWG.
The terminal features a high conductivity copper body with tin plating, and it has a nylon insulation sleeve.
The overall length of this unit is 33.58mm and its thickness is 0.79mm.
The serrations inside the wire barrel maximize contact and tensile strength after crimping, ensuring a reliable connection.
Yes, it complies with RoHS standards, ensuring material safety and environmental compliance.
The stud size for this terminal is M6.
It is suitable for use in instrumentation, control panels, power supplies, transportation, aerospace, and appliances.
The funnelled wire entry facilitates fast and easy wire insertion during production, enhancing installation efficiency.
The contact material is copper, which provides reliable electrical connections.
The minimum wire size is 2.6mm² and the maximum wire size is 6.6mm².
This terminal is manufactured in the United States, ensuring quality and reliability.
