onsemi 40 V 200 mA Surface Mount Schottky Diode 2-Pin SOD-923 NSR0340P2T5G

Free Delivery in India | Lowest Global Shipping Charges

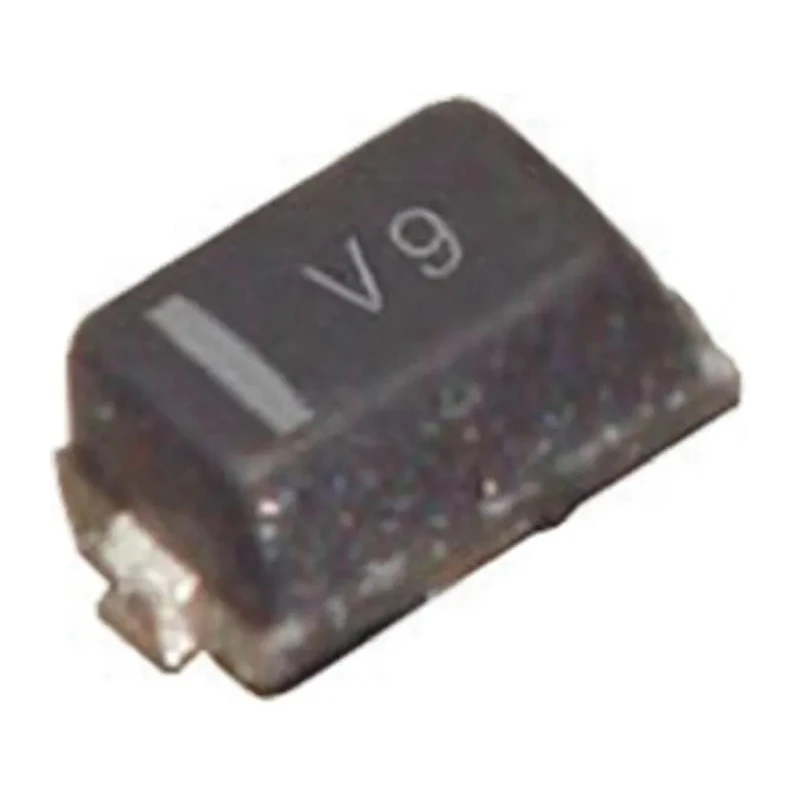

onsemi 40 V 200 mA Surface Mount Schottky Diode 2-Pin SOD-923 NSR0340P2T5G

Name: onsemi 40 V 200 mA Surface Mount Schottky Diode 2-Pin SOD-923 NSR0340P2T5G
Brand: onsemi
SKU: 374775
Price: 0.04 USD
Availability: InStock



Category Schottky Diode Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	0.4mm
Length	0.85mm
Model	NSR0340P2T5G
Width	0.65mm
Mount Type	Surface
Maximum Operating Temperature	125°C
Package Type	SOD-923
Minimum Operating Temperature	-55°C
Pin Count	2
Maximum Continuous Forward Current If	200mA
Peak Reverse Repetitive Voltage Vrrm	40V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	20μA
Peak Non-Repetitive Forward Surge Current Ifsm	1A
Maximum Forward Voltage Vf	560mV
Peak Reverse Recovery Time trr	3ns

Key Features

This diode is designed for low voltage, high frequency rectification applications.
It features a maximum continuous forward current of 200 mA.
The peak reverse repetitive voltage rating is 40 V.
The diode offers a low forward voltage drop of 560 mV.
It has a peak non-repetitive surge current of 1 A for transient events.
The operating temperature range is from -55°C to 125°C.
The package dimensions are compact with a length of 0.85 mm and width of 0.65 mm.
The diode configuration is single with 2 pins for surface mounting on PCBs.

Product Description

onsemi NSR0340P2T5G is a Schottky barrier diode designed for use in a wide variety of electronic circuits requiring low voltage and high frequency rectification capabilities. The diode is housed in a compact 2-pin SOD-923 surface mount package, making it suitable for modern automated PCB assembly processes.

This diode supports a maximum continuous forward current rating of 200 mA, suitable for applications requiring efficient freewheeling or polarity protection in power-related circuits. It has a peak reverse repetitive voltage of 40 V, providing reliable operation in environments with moderate voltage loads.

Its low forward voltage drop of 560 mV helps reduce power losses, enhancing overall efficiency. The diode is capable of handling a transient peak non-repetitive forward surge current of 1 A, offering robustness for occasional surge conditions.

Designed to operate between -55°C and 125°C, this diode meets typical industrial temperature standards. Its small package size (0.85 mm length and 0.65 mm width with a height of 0.4 mm) is ideal for compact electronic designs requiring space-saving components.

The onsemi NSR0340P2T5G diode is epoxy moulded for durability and is lead-free, supporting environmentally responsible manufacturing. This diode finds applications in industrial, consumer electronics, communications equipment, and automotive circuits where size, efficiency, and reliability are critical.

This diode is suitable for surface mount technology (SMT) manufacturing processes. It can be used in power supply circuits as a rectifier or polarity protection diode. The small SOD-923 package facilitates high-density PCB layouts.

It contributes to power efficiency with a low forward voltage characteristic. Designed with Schottky barrier technology for fast switching and low forward voltage. Meets environmental standards with lead-free construction.

Robust package protects against mechanical and thermal stress. Explore more semiconductor and diode products in EnvMart for your industrial and electronic component needs.

Explore more products in our Schottky Diode category.
