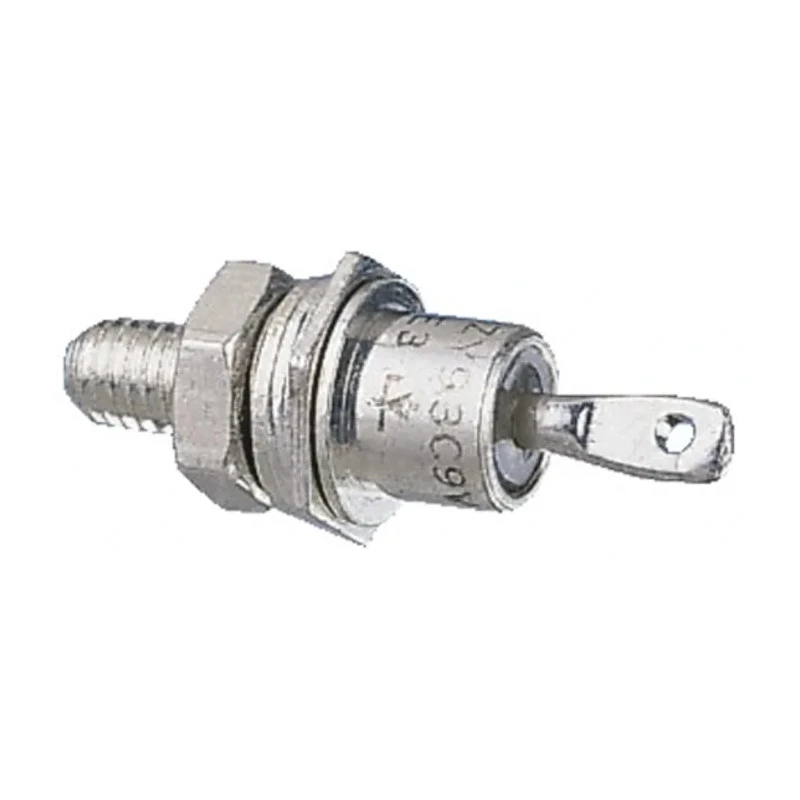

Vishay Fast Recovery 800 V 70 A Diode 2-Pin DO-203AB VS-70HFL80S05

Vishay VS-70HFL80S05 fast recovery diode is designed for high-efficiency power rectification in industrial and electronic applications. This diode features a 2-pin DO-203AB package with a stud cathode configuration that supports a maximum continuous forward current of 70 amperes and a peak reverse repetitive voltage of 800 volts.

With a peak non-repetitive forward surge current capability up to 870 amps and fast recovery time of 500 nanoseconds, it is suitable for circuits requiring rapid switching and high surge tolerance. The diode's maximum forward voltage drop of 1.85 volts ensures low conduction losses, important for power efficiency.

Operating reliably across a temperature range from -40°C to 125°C, this device meets the demanding conditions of industrial environments. Its compact form factor, approximately 36.5 mm in length and 17.4 mm in diameter, allows easy integration into assemblies with space constraints.

Applications include power supplies, motor drives, industrial machinery, and energy conversion systems. This diode features a maximum continuous forward current of 70 amps. It has a peak reverse repetitive voltage rating of 800 volts.

The device uses a stud cathode diode configuration for reliable operation. Peak reverse current is minimal at 15 milliamps ensuring low leakage. Capable of peak non-repetitive forward surge current up to 870 amps. Maximum forward voltage drop of 1.85 volts reduces power loss.

Fast peak reverse recovery time of 500 nanoseconds enhances switching efficiency. Operates within -40°C to 125°C temperature range. Compact design with 36.5 mm length and 17.4 mm diameter. RoHS compliant and manufactured in India.
