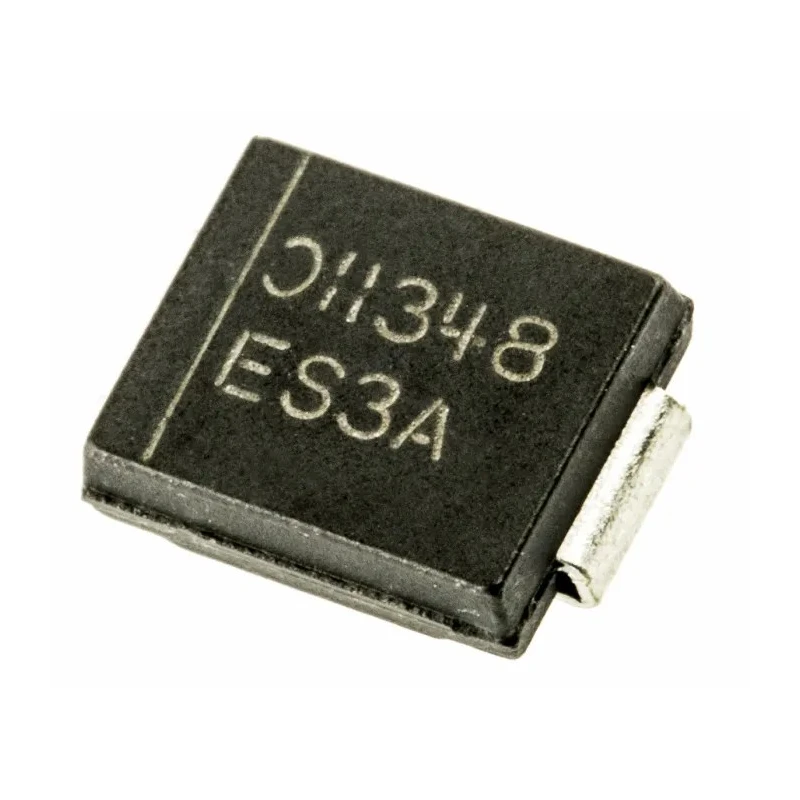

DiodesZetex Switching Diode Single 3 A 2-Pin 50 V Surface Mount SMC ES3A-13-F

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex Switching Diode Single 3 A 2-Pin 50 V Surface Mount SMC ES3A-13-F

Name: DiodesZetex Switching Diode Single 3 A 2-Pin 50 V Surface Mount SMC ES3A-13-F
Brand: DiodesZetex
SKU: 225953
Price: 0.42 USD
Availability: InStock



Category Switching Diode Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Height	2.3mm
Length	7.11mm
Model	ES3A-13-F
Width	6.22mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	SMC
Sub Type	Silicon Junction
Minimum Operating Temperature	-55°C
Pin Count	2
Diode Configuration	Single
Peak Non-Repetitive Forward Surge Current Ifsm	100A
Maximum Forward Voltage Vf	900mV
Peak Reverse Recovery Time trr	25ns
Maximum Forward Current If	3A
Maximum Peak Reverse Repetitive Voltage Vrrm	50V

Key Features

Compact surface mount SMC package suitable for automated assembly.
Rated for maximum forward current of 3 amperes.
Peak reverse repetitive voltage of 50 volts for reliable switching performance.
Low maximum forward voltage of 900 millivolts for efficient conduction.
Fast peak reverse recovery time of 25 nanoseconds to minimize switching losses.
Wide operating temperature range from -55°C to 150°C.
Maximum peak non-repetitive surge current capability of 100 amperes.
Designed without specific automotive standards or additional certifications.

Product Description

DiodesZetex ES3A-13-F is a high-performance switching diode designed as a single silicon junction device in a compact surface mount SMC package. It supports a maximum forward current of 3 amperes and withstands a peak reverse repetitive voltage of 50 volts, making it suitable for various power switching and electronic circuit protection applications.

This diode features a low maximum forward voltage of 900 millivolts, enabling efficient conduction with minimal power dissipation. Its peak reverse recovery time of 25 nanoseconds supports fast switching speeds necessary for high-frequency circuits.

With a wide operating temperature range from -55°C up to 150°C, this diode is reliable in demanding thermal environments. It also supports a high peak non-repetitive forward surge current up to 100 amperes, providing robustness during transient surge conditions.

The physical dimensions of 7.11 mm length, 6.22 mm width, and 2.3 mm height ensure easy surface mounting on printed circuit boards using automated assembly lines with the 2-pin configuration.

While this product does not conform to automotive standards or other specific industry approvals, its technical specifications and characteristics make it well suited for industrial electronics, power management systems, and consumer electronics assembly.

Compact surface mount SMC package for automated assembly efficiency. Maximum forward current of 3 A for reliable power switching. Peak reverse voltage rating of 50 V to ensure safe operation. Low forward voltage drop of 900 mV reduces conduction losses.

Fast reverse recovery time of 25 ns allows for high-frequency operation. Wide operating temperature range from -55°C to 150°C ensures durability. High surge current capability up to 100 A protects against transient spikes.

Precise 2-pin design simplifies PCB mounting and layout. Suitable for electronic component manufacturing, repair, and prototyping. Does not carry automotive standards or certifications. Explore more Switching Diode products and electronic components at EnvMart for your manufacturing, industrial, and repair needs.
