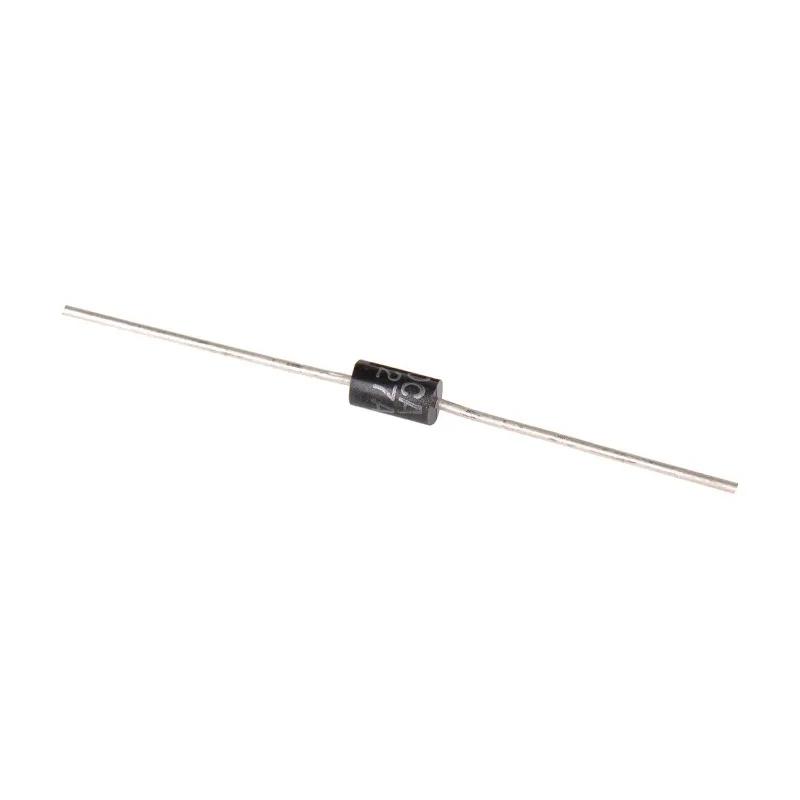

Vishay 1-Element Bi-Directional TVS Diode 500 W 2-Pin DO-204AC SA10CA-E3/54
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 3.6mm |
| Brand | Vishay |
| Height | 3.3mm |
| Length | 7.6mm |
| Model | SA10CA-E3/54 |
| Width | 3.3mm |
| Mount Type | Through Hole |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-204AC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 17V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 11.1V |
| Maximum Reverse Stand-off Voltage Vwm | 10V |
| Peak Pulse Power Dissipation Pppm | 500W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 29.4A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- This single diode device offers effective transient voltage suppression with bi-directional configuration.
- It features a minimum breakdown voltage of 11.1 V and a maximum reverse stand-off voltage of 10 V.
- The diode has a clamping voltage of 17 V ensuring protection against voltage spikes.
- Designed for through-hole mounting with a compact DO-204AC package type.
- It operates efficiently from -55°C up to 175°C, suitable for demanding environments.
- The device withstands a maximum peak pulse current of 29.4 A, ideal for ESD protection.
- It complies with Automotive Standard AEC-Q101, ensuring automotive-grade quality.
- Constructed in China, assuring reliable manufacturing standards.
Product Description
Vishay SA10CA-E3/54 is a 1-element bi-directional transient voltage suppressor (TVS) diode designed to protect sensitive electronics from transient voltage spikes. Rated for a peak pulse power dissipation of 500 W and housed in a through-hole DO-204AC package with 2 pins, this device suits industrial, automotive, and electronic applications where voltage surge protection is critical.
This TVS diode supports a minimum breakdown voltage of 11.1 V and operates with a maximum reverse stand-off voltage of 10 V, ensuring it triggers protection just above normal operating voltages. Its clamping voltage of 17 V effectively suppresses transient overvoltages, while the maximum peak pulse current rating of 29.4 A protects downstream components from large current spikes.
The diode is built for harsh environments, operating reliably from -55°C to 175°C. Its dimensions of approximately 7.6 mm length, 3.6 mm diameter, and 3.3 mm width and height make it compatible with compact PCB layouts.
Compliant with the Automotive Standard AEC-Q101, this product is suitable for automotive electronic circuits requiring robust transient voltage protection. It features Electrostatic Discharge (ESD) protection, enhancing device longevity and reliability in sensitive electronic designs.
Manufactured in China, the Vishay SA10CA-E3/54 TVS diode delivers proven performance within the TRANSZORB TVS series, widely used for industrial and automotive transient voltage suppression.
This single diode device offers effective transient voltage suppression with bi-directional configuration. It features a minimum breakdown voltage of 11.1 V and a maximum reverse stand-off voltage of 10 V. The diode has a clamping voltage of 17 V ensuring protection against voltage spikes.
Designed for through-hole mounting with a compact DO-204AC package type. It operates efficiently from -55°C up to 175°C, suitable for demanding environments. The device withstands a maximum peak pulse current of 29.4 A, ideal for ESD protection.
Dimensions include 7.6 mm length, 3.6 mm diameter, width and height of 3.3 mm each. It complies with Automotive Standard AEC-Q101, ensuring automotive-grade quality. Constructed in China, assuring reliable manufacturing standards.
This TVS diode is ideal for use in industrial and automotive electronic circuits requiring robust and reliable surge protection. It is suitable for PCB integration in power protection, automotive systems, and other applications requiring protection against voltage transients and electrostatic discharges.
Explore our wide range of electronic components and reliable Vishay products in the TVS Diode category at EnvMart for your transient voltage suppression needs.
Explore more products in our TVS Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay SA10CA-E3/54 TVS diode has a peak pulse power dissipation rating of 500 W.
The clamping voltage of this diode is 17 V, which helps to suppress transient overvoltages effectively.
This model operates efficiently within a temperature range of -55°C to 175°C.
The dimensions of this diode are approximately 7.6 mm in length, 3.6 mm in diameter, and both width and height are 3.3 mm.
The maximum peak pulse current rating for the Vishay SA10CA-E3/54 is 29.4 A.
Yes, this diode complies with Automotive Standard AEC-Q101, ensuring it meets automotive-grade quality requirements.
The SA10CA-E3/54 is designed for through-hole mounting, making it suitable for PCB integration.
This model features a 2-pin configuration, which is standard for its DO-204AC package type.
This TVS diode is constructed in China, ensuring reliable manufacturing standards.
The SA10CA-E3/54 is suitable for industrial, automotive, and electronic applications requiring robust transient voltage protection.
