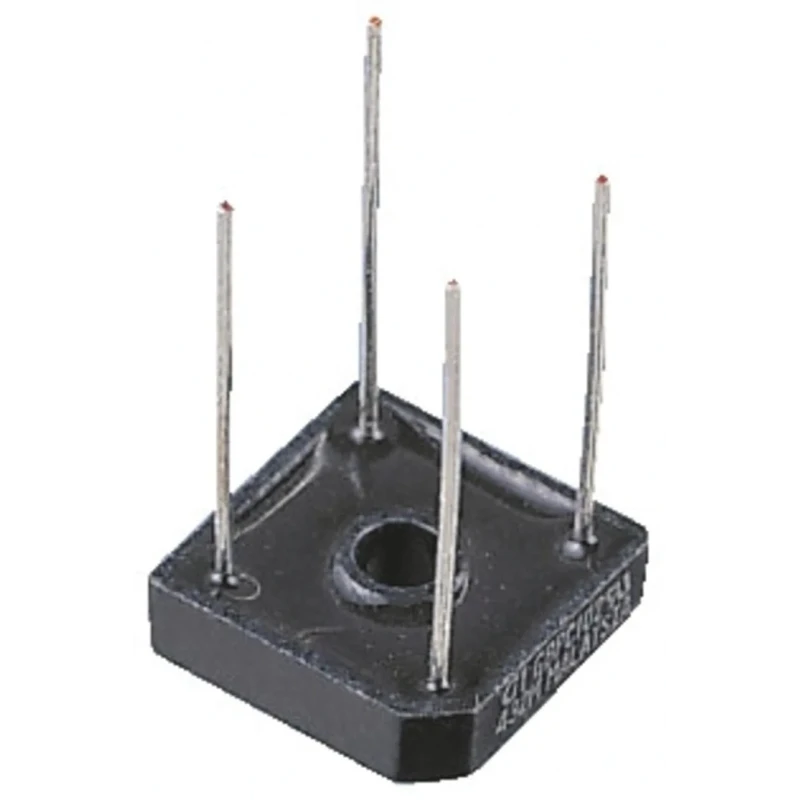

Vishay Single-Phase Bridge Rectifier 600 V Peak Reverse Voltage 175 A Surge Current 4-Pin Through Hole GBPC606-E4/51

Vishay GBPC606-E4/51 is a single-phase bridge rectifier designed to convert alternating current (AC) input into direct current (DC) output through full-wave rectification. This component hosts a peak reverse repetitive voltage rating of 600 V and can tolerate peak non-repetitive forward surge currents up to 175 A, making it suitable for demanding power applications.

The rectifier's compact 4-pin through-hole GBPC package type facilitates straightforward PCB integration. With a continuous forward current rating of 6 A, this device ensures stable and reliable electrical performance. Its operational temperature range from -55°C to 150°C allows deployment in harsh industrial environments.

Built using glass passivated semiconductor technology, the component features a low peak forward voltage of 1 V, minimizing power loss. Its case dielectric strength withstands up to 1500 Vrms, enhancing safety and durability. The rectifier maintains output polarity consistently regardless of AC input polarity, which simplifies circuit design.

This bridge rectifier is widely applicable in industrial machines, power supplies, electronic equipment, and HVAC systems that require robust DC power conversion. It supports single-phase operation in power electronic systems that demand compact and efficient rectification.

The rectifier package is GBPC type with 4 pins and a size of 16 mm length, 16 mm width, and 5.08 mm height. It complies with Vishay GBPC6 series technology and standards, although no specific certifications are listed. The device is manufactured in China and is supplied new, ready for through-hole mounting installation.

EnvMart offers this Bridge Rectifier for electrical and electronics engineers seeking high-reliability components for power rectification and conversion tasks.
