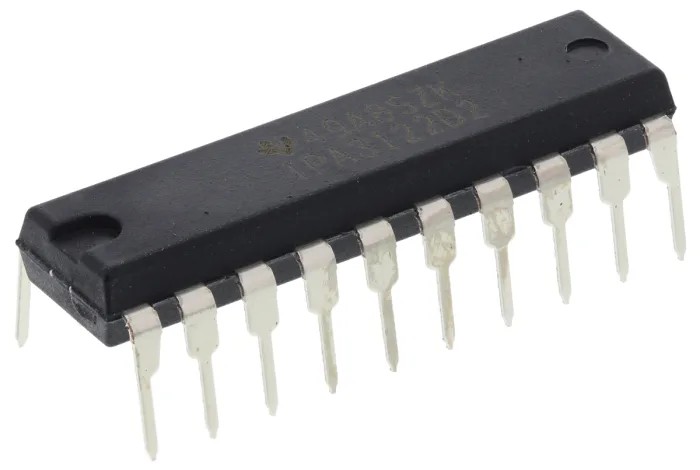

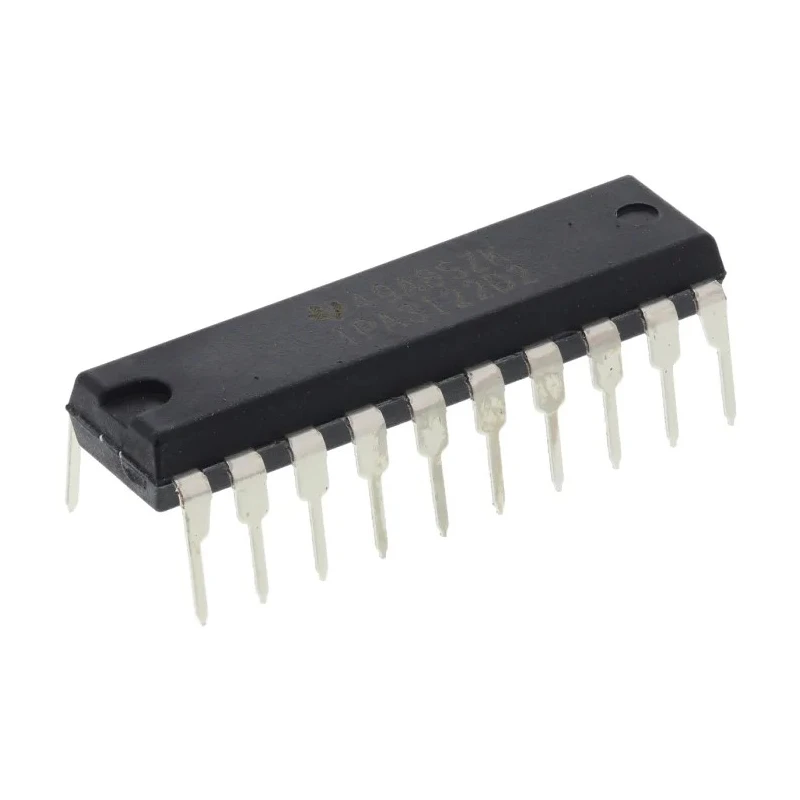

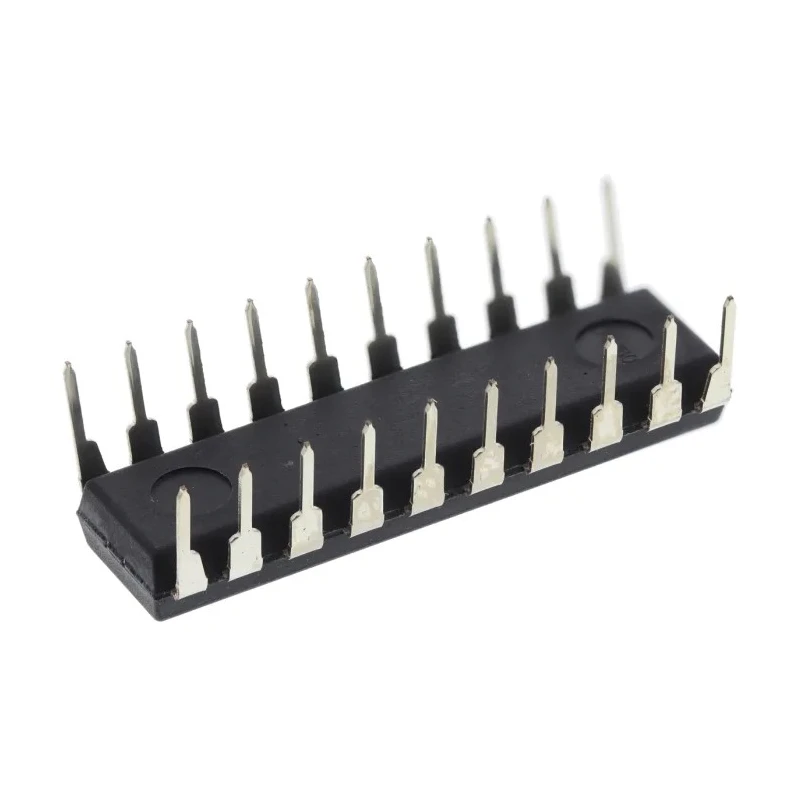

Texas Instruments 2-Channel Audio Amplifier 15W 20-Pin PDIP TPA3122D2N

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments 2-Channel Audio Amplifier 15W 20-Pin PDIP TPA3122D2N

Name: Texas Instruments 2-Channel Audio Amplifier 15W 20-Pin PDIP TPA3122D2N
Brand: Texas Instruments
SKU: 375593
Price: 6.42 USD
Availability: InStock



Category Audio Amplifier ICs Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	4.57mm
Length	24.33mm
Model	TPA3122D2N
Width	6.35mm
Output Power	15W
Mount Type	Through Hole
Series	TPA3122
Maximum Operating Temperature	85°C
Package Type	PDIP
Minimum Operating Temperature	-40°C
Number Of Channels	2
Pin Count	20
Maximum Supply Voltage	30V
Minimum Supply Voltage	10V
Amplifier Type	Audio
Amplifier Class	Class D

Key Features

This audio amplifier IC features a Class D amplifier design.
The device operates between 10V and 30V supply voltage.
It provides two audio channels suitable for stereo applications.
The through-hole PDIP package ensures easy PCB mounting and handling.
Operates reliably in temperatures from -40°C to 85°C.
The package has 20 pins with physical dimensions of 24.33mm length, 6.35mm width, and 4.57mm height.
Ideal for television and multimedia audio amplification applications.
Does not implement any automotive standards.

Product Description

Texas Instruments TPA3122D2N is a high-performance 2-Channel audio amplifier IC designed for various consumer electronics applications, including televisions and audio devices. This model offers a 15W output power per channel with a highly efficient Class D amplifier configuration, delivering excellent audio quality with low power consumption.

The device comes in a through-hole 20-pin PDIP package that facilitates integration into existing PCB layouts and simplifies prototype development.

Key specifications include an operating supply voltage ranging from 10V to 30V, supporting a wide range of power supply designs. The amplifier supports operations in harsh temperature environments, rated from -40°C minimum to 85°C maximum, ensuring reliability in industrial and consumer settings.

The compact physical dimensions of 24.33mm length, 6.35mm width, and 4.57mm height make it suitable for space-conscious designs. With two audio channels, it enables stereo sound amplification with meaningful power for varied audio systems.

This amplifier IC does not conform to automotive standards but is optimized for home electronic use where stable audio amplification is necessary. This audio amplifier IC features a Class D amplifier design. The device operates between 10V and 30V supply voltage.

It provides two audio channels suitable for stereo applications. The through-hole PDIP package ensures easy PCB mounting and handling. Operates reliably in temperatures from -40°C to 85°C. The package has 20 pins with physical dimensions of 24.33mm length, 6.35mm width, and 4.57mm height.

Ideal for television and multimedia audio amplification applications. Does not implement any automotive standards.

This Texas Instruments TPA3122D2N amplifier IC is suitable for industrial, laboratory, consumer electronics manufacturing, and audio system repair applications. It is a robust choice for enhancing audio output power while maintaining energy efficiency.
