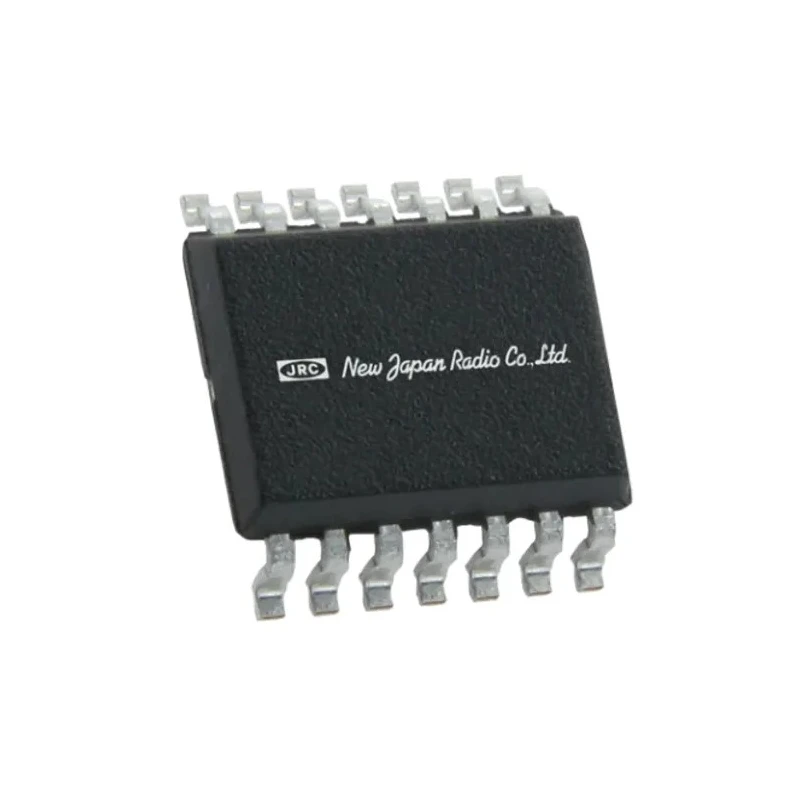

Nisshinbo Micro Devices 2-Channel Audio Amplifier IC SSOP 14-Pin 300mW NJM2761V-TE1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJM2761V-TE1 |
| Output Power | 300mW |
| Mount Type | Surface |
| Series | NJM2761 |
| Maximum Operating Temperature | 75°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -20°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 6.5V |
| Minimum Supply Voltage | 14V |
| Amplifier Type | Audio |
Key Features
- Features a 2-channel configuration for stereo audio applications.
- Compact SSOP package with 14 pins allows easy PCB integration.
- Provides 300mW output power ideal for portable and small devices.
- Wide operating voltage range from +2.7V to +13.0V ensures flexibility.
- Surface mount design is optimal for modern electronics manufacturing.
- RoHS compliant for environmentally safe use.
- Stable operation across -20°C to +75°C temperature range.
Product Description
Nisshinbo Micro Devices NJM2761V-TE1 is a 2-channel audio amplifier IC designed for efficient signal amplification in speaker and portable audio applications. With a compact SSOP 14-pin form factor, this device is ideal for integration in densely populated circuit boards and consumer electronics.
The NJM2761V-TE1 offers robust performance with an output power of 300mW, making it suitable for small and portable devices requiring clear and quality sound. Its dual-channel design supports stereo applications, enhancing audio experience in laptops, portable speakers, and other multimedia equipment.
Featuring a wide operating voltage of +2.7V to +13.0V, the amplifier adapts to various battery or fixed power sources, increasing design flexibility. The surface mount package optimizes manufacturing processes and minimizes required board space, contributing to cost-effective production.
Features a 2-channel configuration for stereo audio applications. Compact SSOP package with 14 pins allows easy PCB integration. Provides 300mW output power ideal for portable and small devices. Wide operating voltage range from +2.7V to +13.0V ensures flexibility.
Surface mount design is optimal for modern electronics manufacturing. RoHS compliant for environmentally safe use. Stable operation across -20°C to +75°C temperature range.
Compatible with a variety of consumer and commercial audio devices, the NJM2761V-TE1 is RoHS certified for environmental safety and functions reliably within a wide temperature range (-20°C to +75°C). It is particularly suited for use in PCs, portable audio equipment, and small speaker systems.
Industrial use cases include electronics manufacturing, embedded systems, multimedia device integration, and circuit board assembly. Explore Nisshinbo Micro Devices' full range of amplifier ICs in the Audio Amplifier ICs category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The NJM2761V-TE1 provides an output power of 300mW, making it suitable for small and portable audio devices.
This audio amplifier IC operates within a voltage range of +2.7V to +13.0V, providing flexibility for various power sources.
It features a 2-channel configuration, making it ideal for stereo audio applications.
This model operates reliably within a temperature range of -20°C to +75°C.
It comes in a compact SSOP package with 14 pins, allowing for easy PCB integration.
Yes, this audio amplifier IC is RoHS compliant, ensuring it meets environmental safety standards.
The NJM2761V-TE1 features a surface mount design, which is optimal for modern electronics manufacturing.
It is particularly suited for use in PCs, portable audio equipment, and small speaker systems.
The maximum supply voltage for the NJM2761V-TE1 is 6.5V.
The minimum supply voltage required for this audio amplifier IC is 2.7V.
This model is part of the NJM2761 series of audio amplifier ICs.
The NJM2761V-TE1 is manufactured in India.
