Infineon Capense Liquid Level Sensing Arduino Compatible Shield CY8CKIT-022

Infineon CY8CKIT-022 Capense Liquid Level Sensing Shield is an Arduino compatible accessory equipped with custom capacitive sensing technology for precise liquid level measurement. Operating on the Arduino platform, this shield enables efficient development and prototyping of liquid level monitoring systems in industrial, educational, and automation environments.

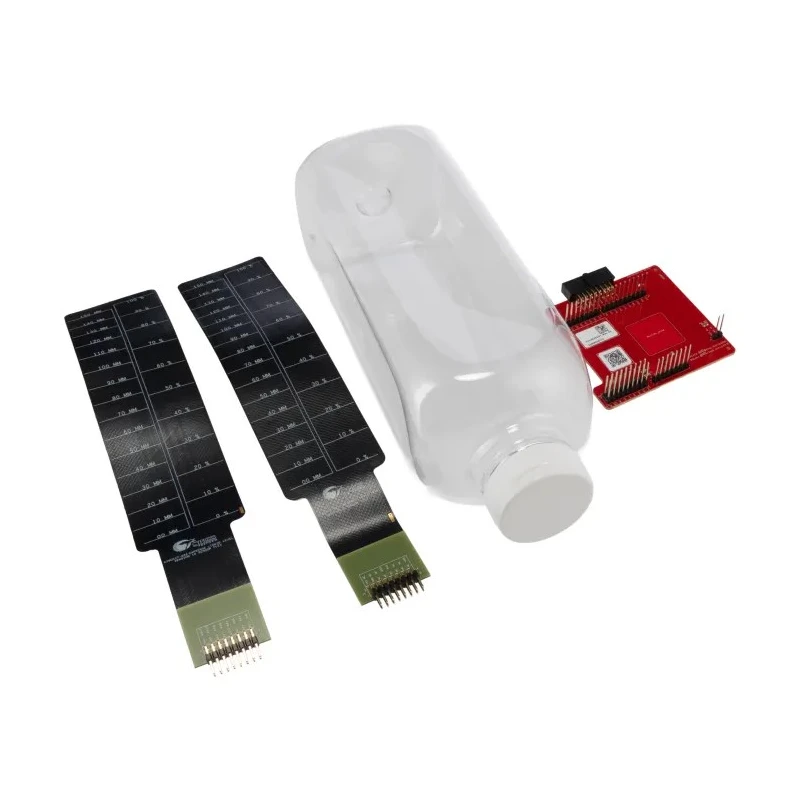

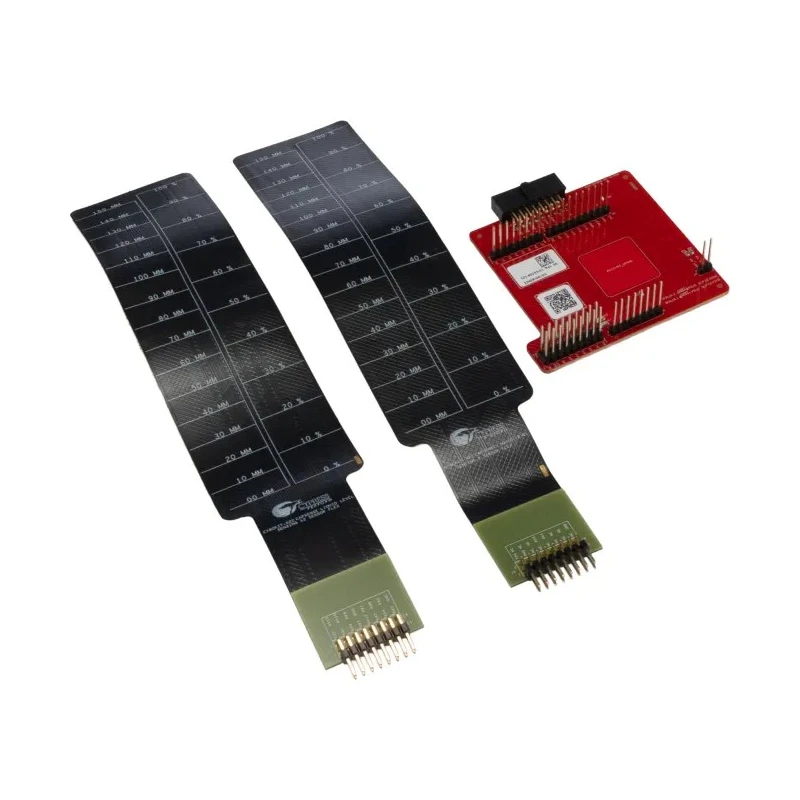

The shield package includes the CapSense Liquid Level Sensing Shield board, a 12 Sensor Flex PCB, a 2 Sensor Flex PCB, a liquid container, and a quick start guide. This comprehensive kit allows users immediate deployment for sensor development and testing.

Its compact and robust design supports integration in confined spaces, making it ideal for automation projects requiring fluid detection and sensor-based control systems. The shield mounts securely on compatible Arduino boards, ensuring reliable communication and data exchange.

Note that the known labeling issue on Pin 6 of connector J2 does not impact functionality, as it is not linked to any sensor. Users can ignore this label without requiring any workaround or modification.

Effective utilization of the shield demands PSoC Creator™ 3.3 CP1 or newer software, supporting development of projects with embedded example code for liquid level sensing. The shield enhances educational and research projects focused on capacitive sensing technology.

Advanced capacitive sensing ensures accurate liquid level detection. Designed specifically for Arduino platform for easy integration. Compact design suitable for space-constrained projects. Includes 12 Sensor Flex PCB, 2 Sensor Flex PCB, liquid container, and quick start guide.

Supports development, prototyping, and educational projects focusing on sensor technology. Compatible with CY8CKIT-042 PSoC 4 Pioneer Kit for extended functionalities. Standard mounting provisions ensure secure attachment to Arduino boards.

Pin J2 label issue does not affect shield operation.

This shield is broadly suited for industrial applications including water treatment monitoring, agricultural fluid sensing, automation systems, and research laboratories. For further development of capacitive sensors and automation projects, explore additional Arduino compatible shields and development kits available on EnvMart.
