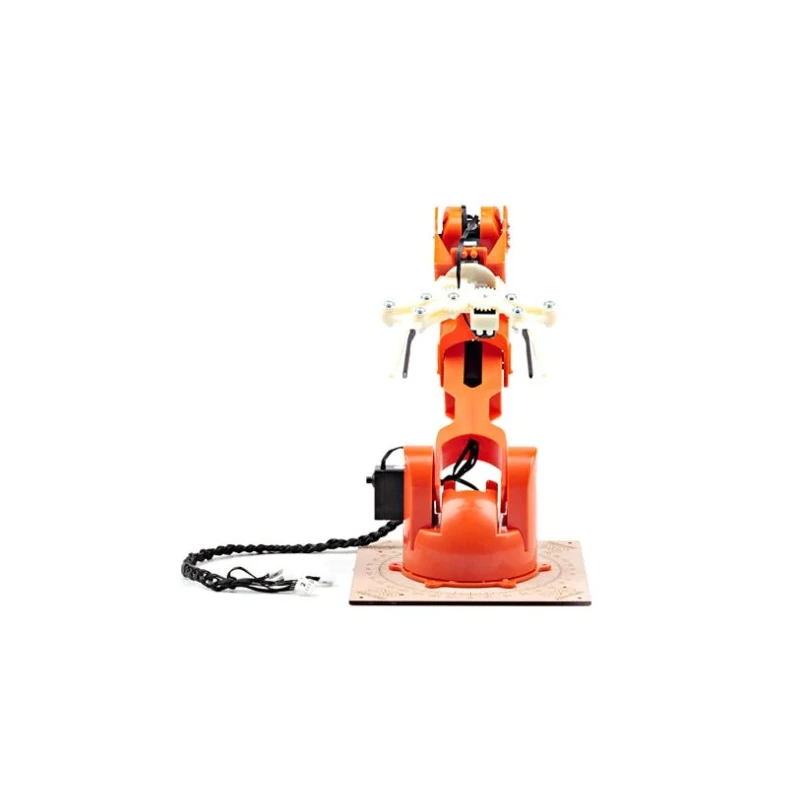

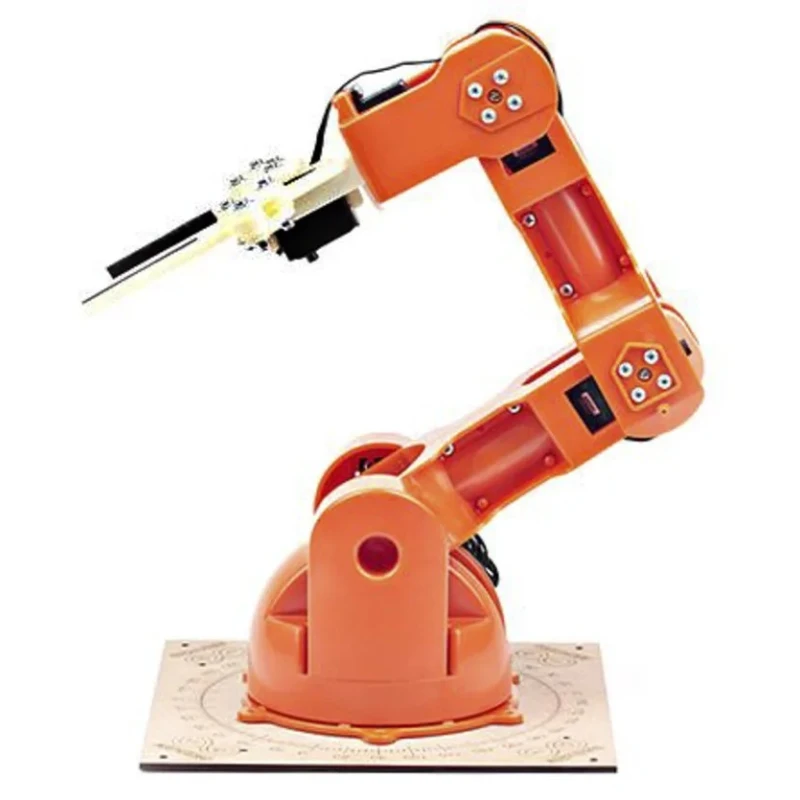

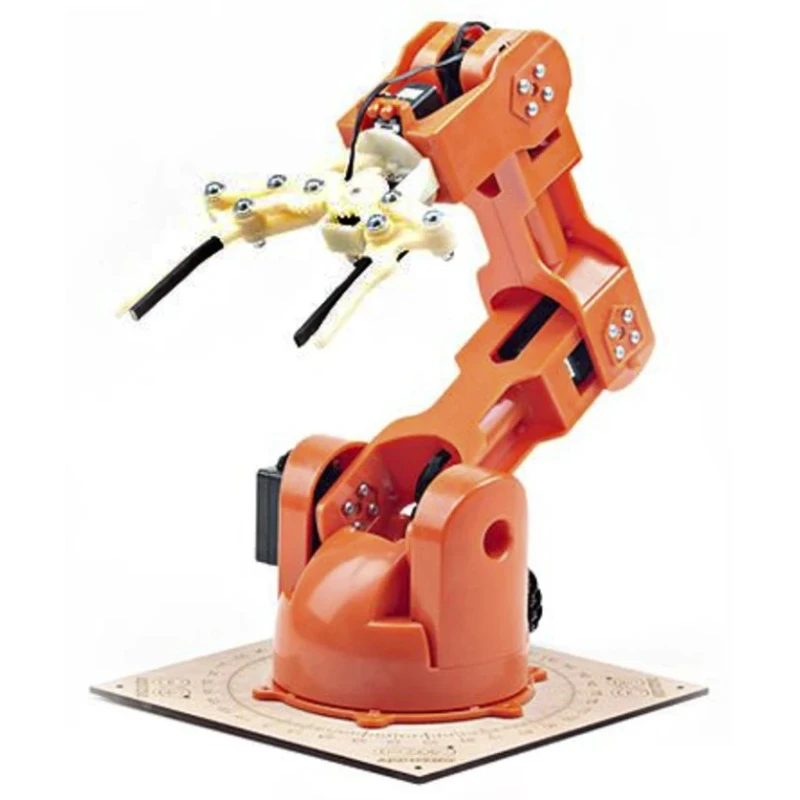

Arduino Tinkerkit Braccio Robotic Arm Shield Kit Controlled via Arduino T050000

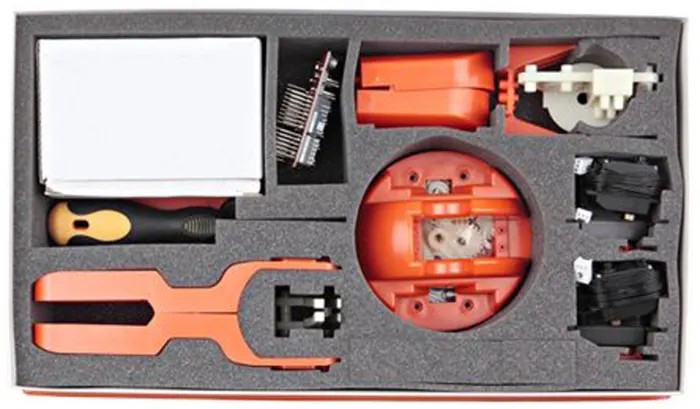

Arduino T050000 Tinkerkit Braccio Robotic Arm Shield Kit is a desktop robotic arm designed for education, prototyping, and robotics development. Controlled via an Arduino board, this kit allows users to assemble the robotic arm to meet specific project requirements. The kit includes the Braccio servo shield but requires a separate Arduino board for full operation.

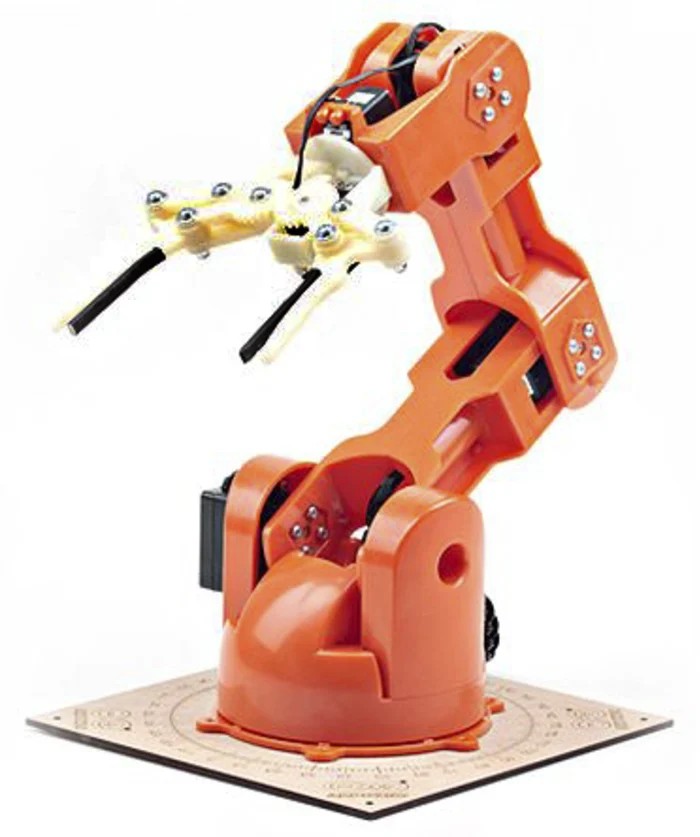

The robotic arm has a maximum operating distance of 80 cm, with an overall height of 52 cm and a base width of 14 cm, making it suitable for desktop use. The gripper width is 9 cm, and the cable length is 40 cm, providing flexibility for various applications.

The arm supports a maximum load capacity of 150 grams at a 32 cm distance and up to 400 grams at the base. It utilizes six servo motors - two SR 311 and four SR 431 - to facilitate precise and flexible movement of arm joints and the gripper mechanism.

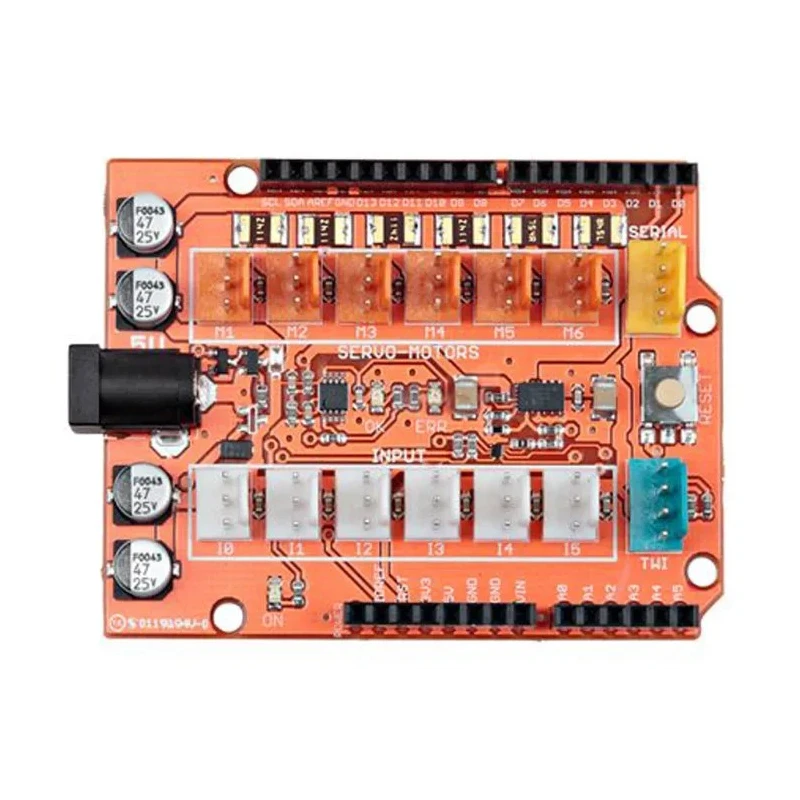

The Braccio servo shield operates at a 5 V supply voltage and consumes 20 mW of power. It can deliver up to 1.1 A current on connectors M1 through M4 and 750 mA on connectors M5 and M6, supporting efficient motor actuation and control.

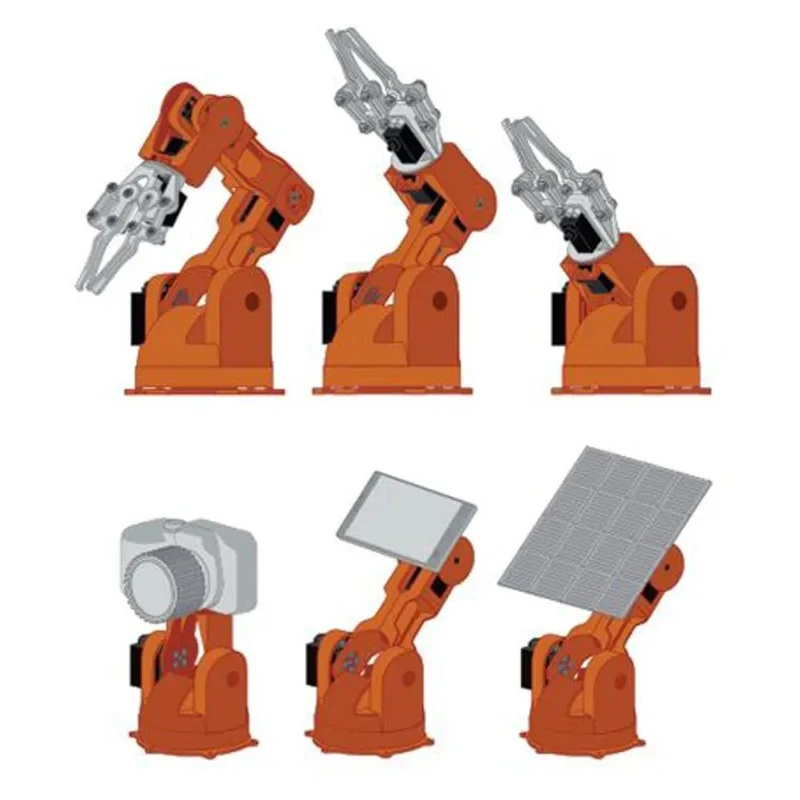

This kit is ideal for STEM education, robotics experimentation, automation prototypes, and desktop robotic projects. It can be adapted for object manipulation, camera mounting with motion tracking during video calls, or solar panel positioning to track the sun.

The total weight of the assembled robotic arm is approximately 0.792 kg, making it portable and easy to integrate in laboratory and educational environments. The robotic arm offers a maximum operating distance of 80 cm. The unit has a maximum height of 52 cm and a base width of 14 cm.

It features a gripper width of 9 cm and cable length of 40 cm. The arm has a maximum load capacity of 150 g at a 32 cm operating distance and can support up to 400 g at the base configuration. Equipped with 2 SR 311 and 4 SR 431 servo motors for precise movements.

The total weight of the kit is approximately 0.792 kg. The Braccio servo shield operates at 5 V with a power consumption of 20 mW. The maximum current is 1.1 A from M1 to M4 connectors and 750 mA from M5 and M6 connectors.

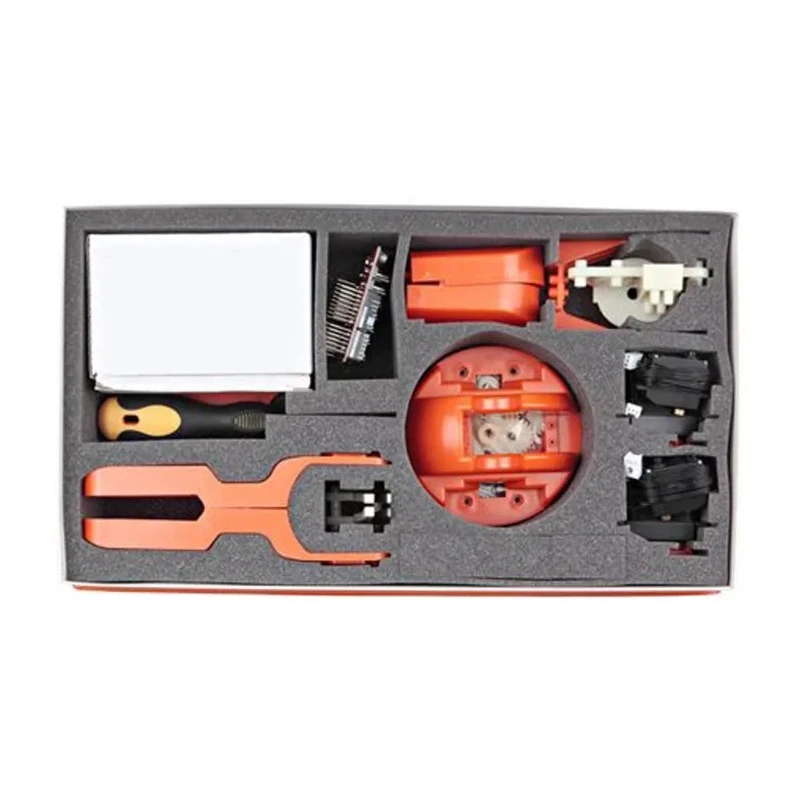

The kit requires assembly and an Arduino board for operation (Arduino board not included). Designed for use in educational, prototyping, robotics development, and experimental desktop applications. Explore more Arduino products and related components at EnvMart for your electronic development projects.
