Parallax Inc Arduino Compatible BoE Robotics Shield V1.2 for Arduino 102x77.5mm 35000

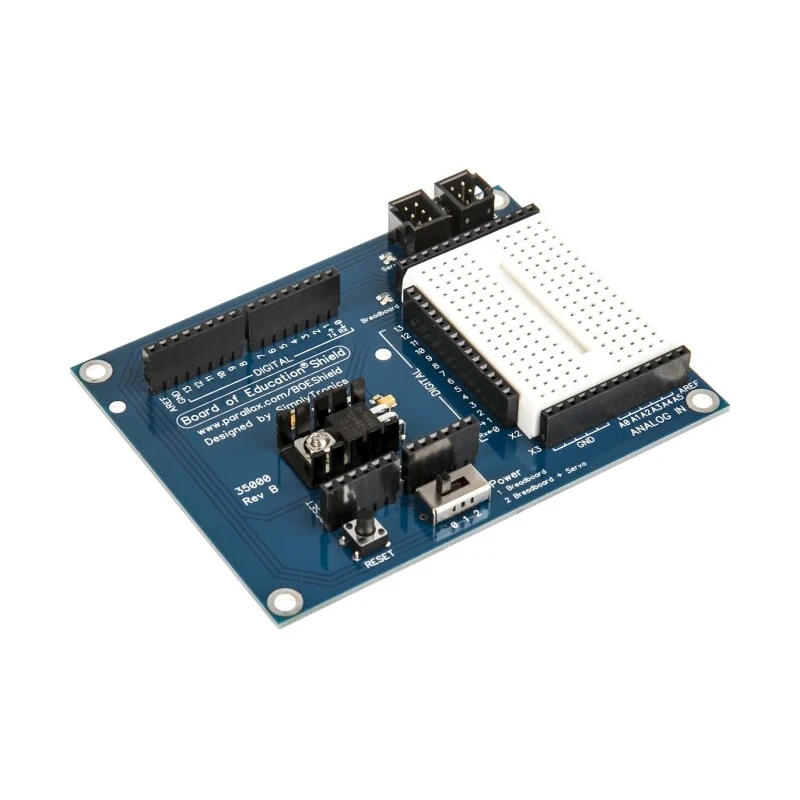

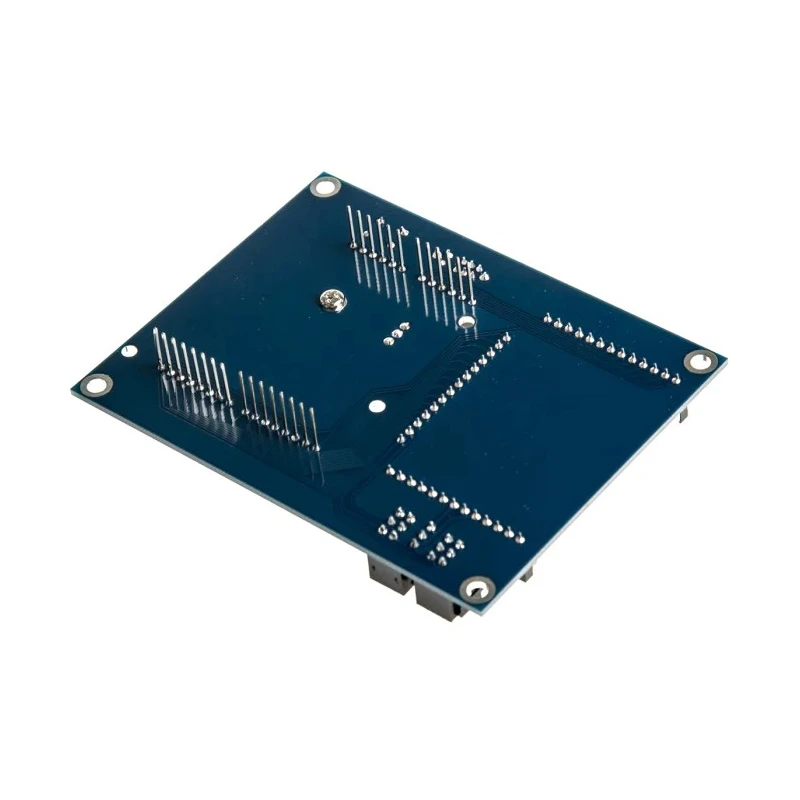

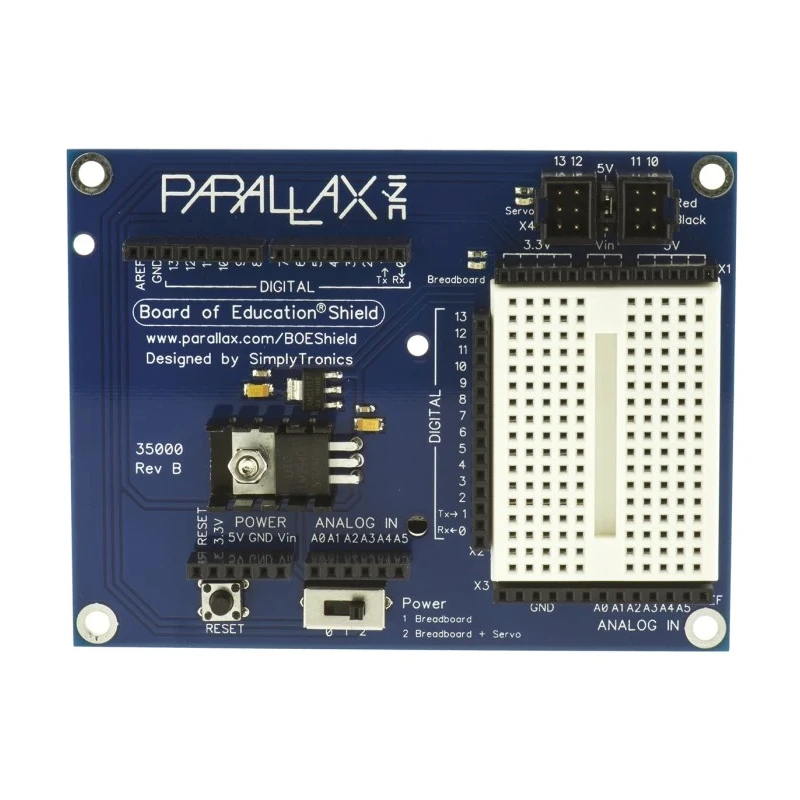

Parallax Inc 35000 Arduino Compatible BoE Robotics Shield V1.2 is a compact prototyping shield designed for rapid development with Arduino microcontrollers such as Uno, Mega, and Duemilanove. Measuring 102 x 77.5mm, this shield provides a 17 row by 2 column breadboard area, facilitating convenient circuit building without soldering. It supplies dedicated headers for power lines including Vin, 5V, and 3.3V, alongside ground, digital I/O, and analog input pins situated adjacent to the breadboard for easy access during development.

The shield incorporates a +5V 1A regulator and a +3.3V 200mA regulator, which ensures stable power delivery to connected components. Four servo motor ports are provided, each with a power selection jumper to choose between regulated 5V or the Arduino's Vin supply voltage, accommodating various robotics applications. A 3-position switch allows selection between header power only or header power combined with servo port power. Reset and supply indicator LEDs allow easy monitoring and reset of the Arduino processor.

Operating within an environmental temperature range from 0 to +70°C, the shield supports projects in home automation, education, robotics prototyping, and STEM development. The communication interface is enabled via serial USB connections through the Arduino processor, simplifying software interactions. Designed and manufactured with robust build quality in China, it is suited for educational institutions and hobbyists aiming to advance their robotics and microcontroller projects.

The shield supports Arduino Uno, Mega, and Duemilanove form factors. Includes a 17 row x 2 column breadboard for circuit construction. Features 4 servo motor ports with selectable power source. Equipped with dedicated +5V and +3.3V regulators for stable power supply.

Offers headers for power, ground, digital I/O, and analog inputs adjacent to the breadboard. Incorporates a 3-position power switch controlling header and servo port power. Supply indicator LEDs monitor breadboard and servo power status.

Dimensions are compact at 102 x 77.5 mm for versatile integration. Operates reliably within a temperature range of 0 to +70°C. Communication occurs via serial over USB using the Arduino processor.

This shield is part of a range of prototyping tools designed for Arduino-compatible microcontroller development and educational robotics projects. Browse more Arduino Shields and robotics components on EnvMart.
