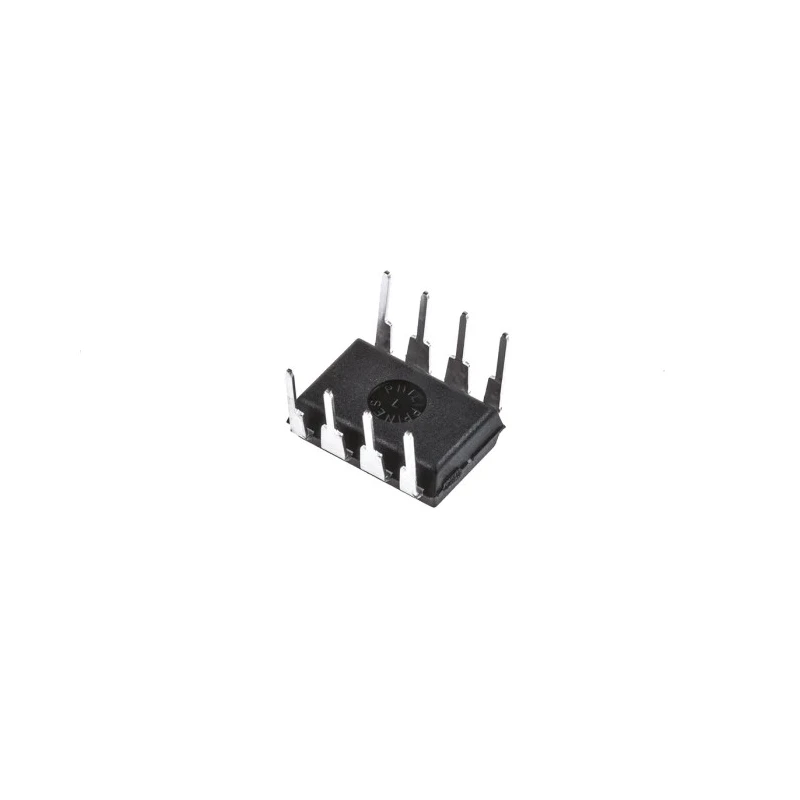

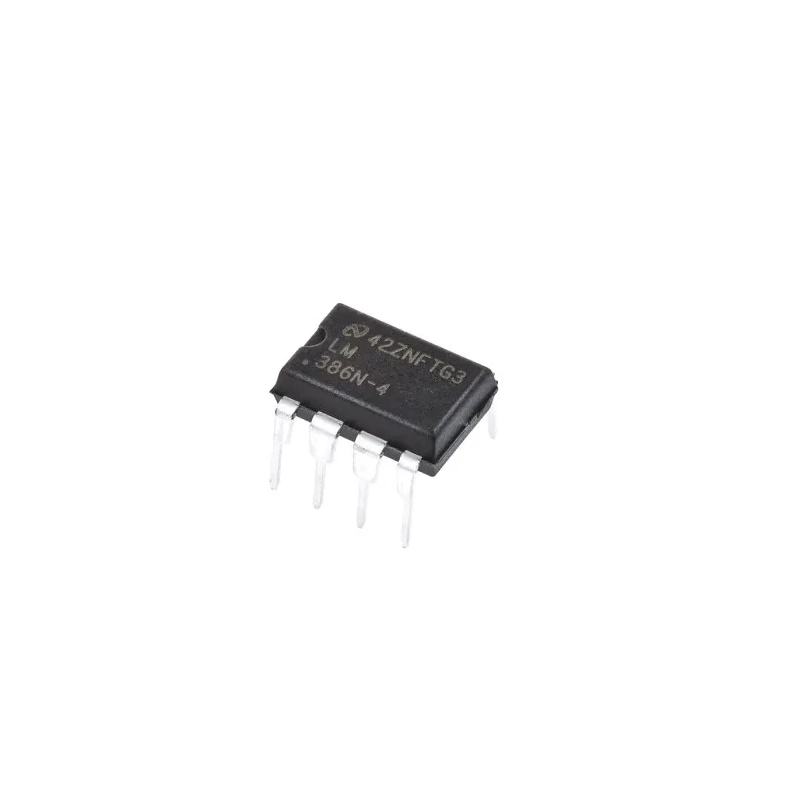

Texas Instruments Audio Power Amplifier, 8-Pin, 1W MDIP LM386N-4/NOPB

Texas Instruments LM386N-4/NOPB is a single-channel audio power amplifier IC in an 8-pin MDIP package designed for audio amplification applications. Delivering 1 watt output power, it operates within a voltage range of 9V to 18V and employs a Class A-B amplifier design for high fidelity audio output suitable for driving speakers efficiently.

Its compact form factor with dimensions of 10.16mm length, 6.6mm width, and 8.26mm height makes it ideal for integration into compact electronic devices. The amplifier provides a gain bandwidth product of 300kHz ensuring clear and distortion-free audio signals, optimized for consumer audio electronics and instrumentation.

The LM386N-4/NOPB supports through-hole mount applications on printed circuit boards, facilitating easy assembly and repair. It operates reliably within the temperature range of 0 to 70 degrees Celsius, ensuring stability in typical consumer and industrial environments.

This device also incorporates advanced features for safe operation including thermal overload protection, short-circuit protection, and a safe operating area to enhance the durability and reliability of the amplifier in various electronic audio systems.

Widely used in industrial, laboratory, consumer audio equipment, and electronic prototyping, the Texas Instruments LM386N-4/NOPB amplifier is a versatile component suitable for audio power amplification needs requiring modest wattage output.

Suitable for speaker application with 1 watt output power. 8-pin MDIP package with through-hole mount type. Operates from 9V minimum to 18V maximum supply voltage. Gain bandwidth product of 300 kHz ensures stable audio amplification.

Designed for use in Class A-B amplifier circuits. Operating temperature ranges from 0°C to 70°C. Compact dimensions: length 10.16mm, width 6.6mm, height 8.26mm. Single-channel configuration with 8-pin count suitable for audio applications.

Includes internal thermal overload, short-circuit, and safe operating area protection features. Explore more Audio Amplifier ICs by Texas Instruments and ensure high quality and reliable amplification for your audio design projects with EnvMart.
