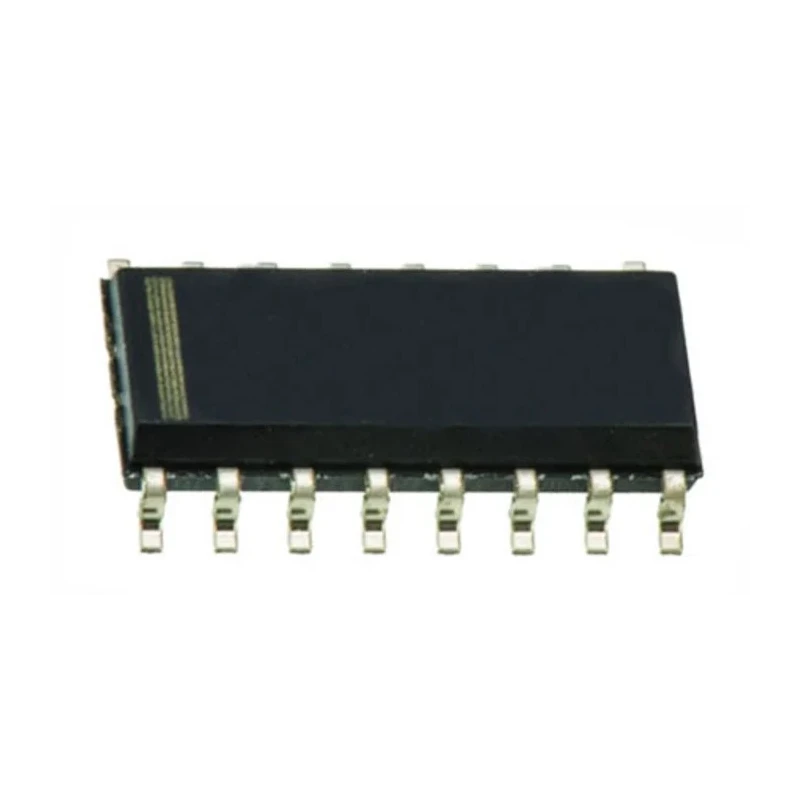

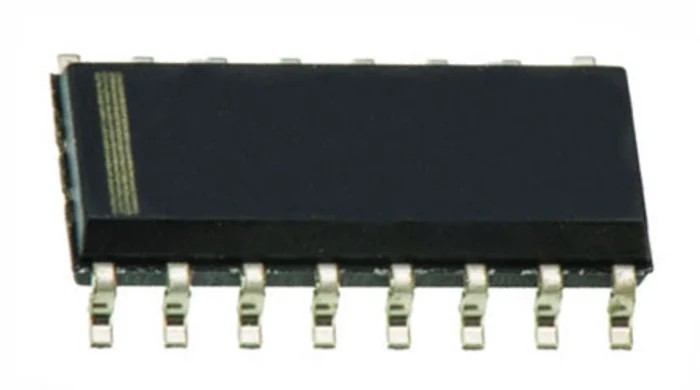

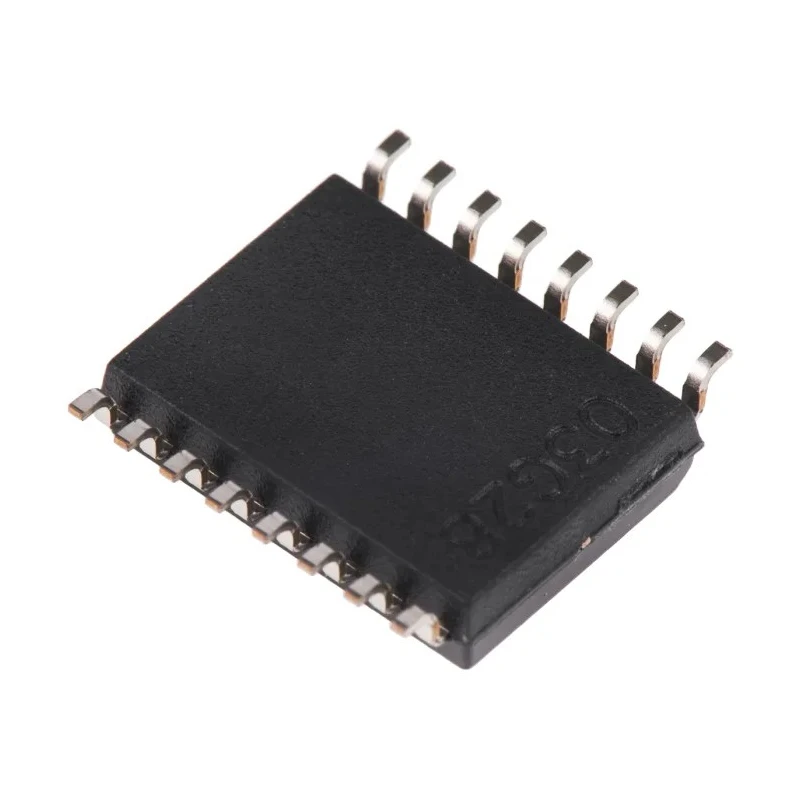

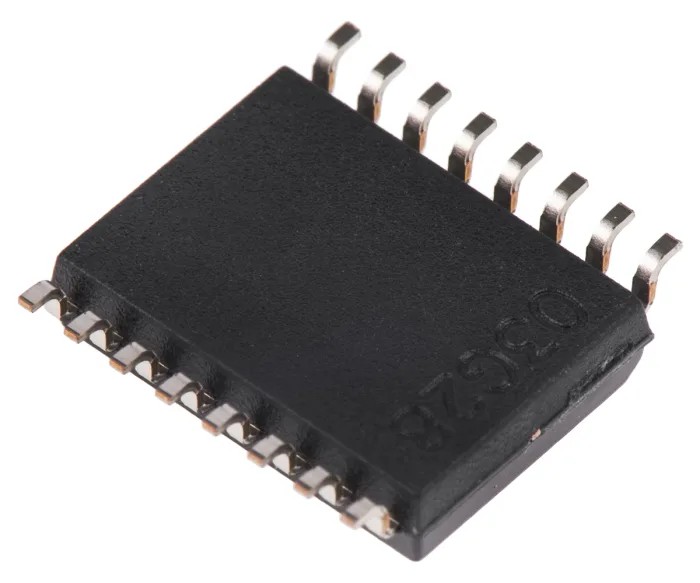

Texas Instruments 2-Channel Audio Volume Control, Surface Mount 16-Pin SOIC Package PGA2320IDW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 2.35mm |
| Length | 10.28mm |
| Model | PGA2320IDW |
| Width | 7.52mm |
| Mount Type | Surface |
| Series | PGA2320 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Pin Count | 16 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 5V |
| Amplifier Type | Audio Volume Control |
Key Features
- The IC supports two independent volume channels ensuring flexible audio control.
- Compact surface mount SOIC package with 16 pins for space-efficient PCB integration.
- Operates reliably within temperature range from -40°C to 85°C.
- Wide operating supply voltage from 5 V to 15 V suitable for various power designs.
- Designed specifically for audio volume control with digital potentiometer technology.
- Low noise and distortion characteristics enhance audio quality in amplifiers.
- Suitable for use in consumer audio, professional sound equipment, and embedded systems.
- Internal digital control enables precise volume adjustments and integration with microcontrollers.
Product Description
The Texas Instruments PGA2320IDW is a high precision, 2-channel audio volume control integrated circuit housed in a compact 16-pin SOIC surface mount package. It is designed specifically for audio applications requiring digital potentiometer control to achieve accurate, noise-free volume adjustments.
This device supports two independent audio channels, providing flexible volume control suitable for stereo audio systems. It operates over a wide supply voltage range from 5 V to 15 V and a broad temperature range from -40°C up to 85°C, ensuring reliable performance in both consumer and industrial audio environments.
The PGA2320IDW delivers low noise and distortion, making it ideal for high fidelity audio applications such as powered speakers, mixing consoles, and professional audio equipment. Its digital interface allows it to be easily controlled via microcontrollers, enabling seamless integration into automated audio systems and embedded designs.
The surface mount SOIC package with 16 pins is designed for efficient PCB space utilization and supports high volume automated assembly processes. This IC comes ready for surface mount installation, suited to modern electronics manufacturing.
Applications include consumer electronics, professional audio systems, automotive audio components, and any embedded systems requiring precise audio volume control with digital accuracy.
The IC supports two independent volume channels ensuring flexible audio control. Compact surface mount SOIC package with 16 pins for space-efficient PCB integration. Operates reliably within temperature range from -40°C to 85°C.
Wide operating supply voltage from 5 V to 15 V suitable for various power designs. Designed specifically for audio volume control with digital potentiometer technology. Low noise and distortion characteristics enhance audio quality in amplifiers.
Suitable for use in consumer audio, professional sound equipment, and embedded systems. Internal digital control enables precise volume adjustments and integration with microcontrollers. Easy integration with surface mount technology assembly processes.
Explore more in the Audio Amplifier ICs category at EnvMart for compatible components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates over a supply voltage range from 5 V to 15 V, making it suitable for various power designs.
The dimensions of this integrated circuit are 10.28 mm in length, 7.52 mm in width, and 2.35 mm in height.
It supports two independent audio channels, allowing for flexible volume control in stereo audio systems.
The PGA2320IDW operates reliably within a temperature range from -40°C to 85°C.
This integrated circuit is housed in a compact 16-pin SOIC surface mount package, designed for efficient PCB integration.
It is suitable for use in consumer audio, professional sound equipment, automotive audio components, and embedded systems requiring precise audio volume control.
It is designed specifically for audio volume control using digital potentiometer technology, enabling accurate and noise-free volume adjustments.
The PGA2320IDW is designed to deliver low noise and distortion, enhancing audio quality in amplifiers and high fidelity audio applications.
Yes, it features an internal digital control that allows for precise volume adjustments and easy integration with microcontrollers.
This integrated circuit has a pin count of 16, which supports its surface mount design.
The country of origin for this model is India.
It is classified as an audio volume control amplifier, specifically designed for managing audio levels in various applications.
