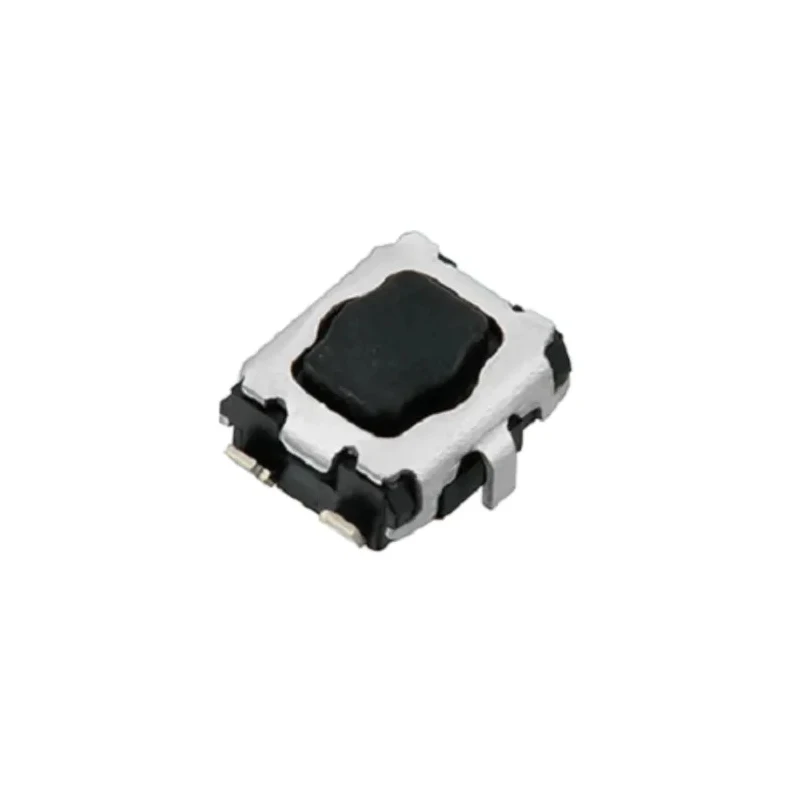

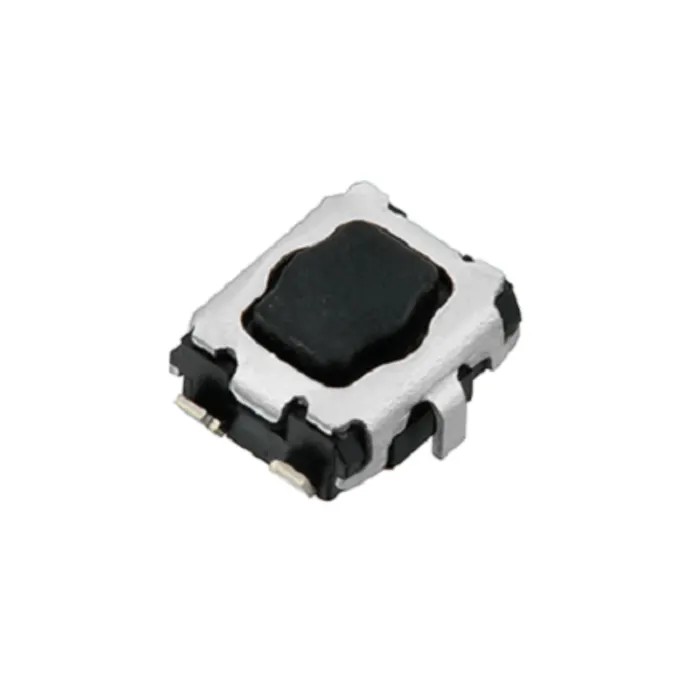

Panasonic White Tactile Switch Push Plate 2.2 mm SPST 20mA Surface Mount EVPAAQ02W

Free Delivery in India | Lowest Global Shipping Charges

Panasonic White Tactile Switch Push Plate 2.2 mm SPST 20mA Surface Mount EVPAAQ02W

Name: Panasonic White Tactile Switch Push Plate 2.2 mm SPST 20mA Surface Mount EVPAAQ02W
Brand: Panasonic
SKU: 288037
Price: 0.76 USD
Availability: InStock



Category Tactile Switch Brand Panasonic Condition New

Specifications

Country of Origin	Japan
Brand	Panasonic
Height	1.7mm
Model	EVPAAQ02W
Mount Type	Surface
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Terminal type	J Bend
Switch Operation	Push-On
Actuator Colour	White
Actuator Length	2.2mm
Actuator Style	Push Plate
Actuator Orientation	Straight
Switch Contact Current	20mA
Operating Force	3.5N
Mechanical Life	500000Cycles
Panasonic White Tactile Switch Push Plate, 2.2 mm, SPST 20mA, SurfaceBrand	Panasonic

Key Features

The actuator is a straight white push plate 2.2 mm in length.
Designed with a J bend terminal type and push-on switch operation.
Capable of operating at temperatures up to 85° C with a mechanical life of 500,000 cycles.
Operates with a 3.5N operating force and a maximum switch contact current of 20mA.
Compact dimensions with a 1.7 mm height, suitable for portable electronics and keyless entry systems.
Built for reliable snap action SPST switching with a non-illuminated actuator.
Manufactured in Japan ensuring quality and durability.

Product Description

Panasonic EVPAAQ02W is a white tactile switch designed with a 2.2 mm push plate and surface mounting style. It supports a single-pole single-throw (SPST) contact configuration rated for 20mA current, making it ideal for low power electronic applications.

This tactile switch features a straight actuator orientation with a push-on style operation and a J bend terminal, optimized for compact electronic devices. The actuator length is 2.2 mm and it is crafted in a white color, complementing aesthetic and functional design requirements.

The switch can operate safely in temperatures up to 85°C and offers a mechanical life expectancy of 500,000 cycles, ensuring long lasting performance. It requires an operating force of 3.5N and provides snap action switching suitable for portable electronics and keyless entry applications.

With a height of 1.7 mm, the component is compact for tight PCB layouts. The device is non-illuminated and designed for surface mounting, enabling easy integration into various electronic assemblies.

Manufactured in Japan, this Panasonic tactile switch meets demanding quality and reliability standards for industrial, consumer electronics, and automation use cases. The actuator is a straight white push plate 2.2 mm in length.

Designed with a J bend terminal type and push-on switch operation. Capable of operating at temperatures up to 85° C with a mechanical life of 500,000 cycles. Operates with a 3.5N operating force and a maximum switch contact current of 20mA.

Compact dimensions with a 1.7 mm height, suitable for portable electronics and keyless entry systems. Built for reliable snap action SPST switching with a non-illuminated actuator. Manufactured in Japan ensuring quality and durability.

This Panasonic EVPAAQ02W tactile switch is commonly employed in keyboard and keypad switches, portable electronic equipment, and industrial automation systems requiring precise tactile feedback and robust construction. Explore more Tactile Switch options and electrical components in the Electronics & Electricals category at EnvMart.
