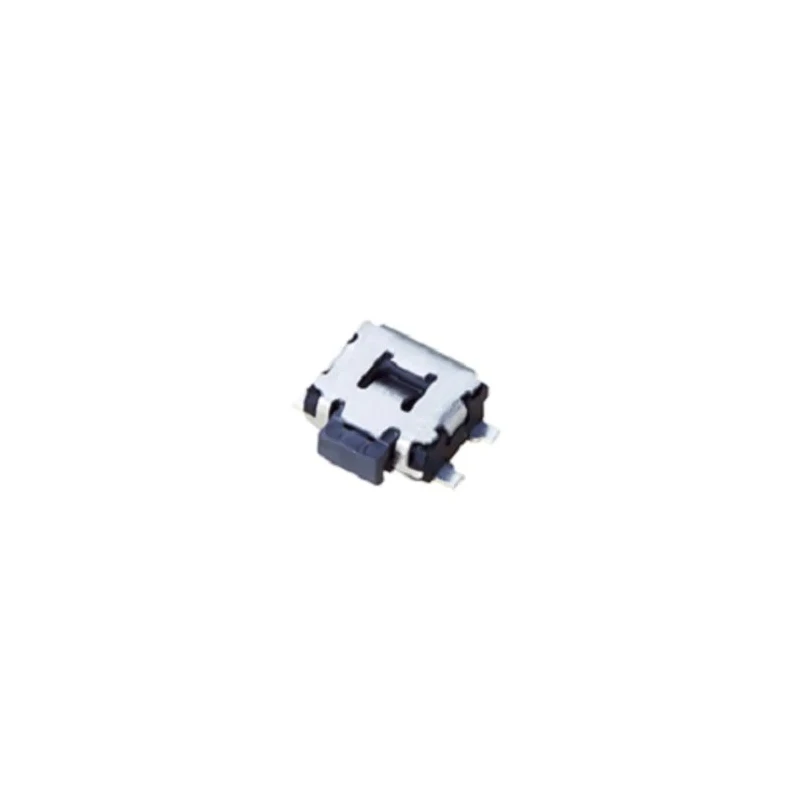

Panasonic Tactile Switch Push Plate, Black/Grey, 1.7 mm Actuator, SPST, 50mA, 12V DC, Surface Mount EVQP7C01P
Specifications
| Country of Origin | China |
|---|---|
| Brand | Panasonic |
| Height | 1.35mm |
| Model | EVQP7C01P |
| Mount Type | Surface |
| Series | EVQP |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Terminal type | Straight |
| Switch Operation | Push-On |
| Actuator Colour | Black, Grey |
| Actuator Length | 1.7mm |
| Contact DC Voltage | 12V dc |
| Actuator Style | Push Plate |
| Switch Contact Current | 50mA |
Key Features
- Features a black and grey push plate actuator with enhanced strength.
- SPST (Single Pole Single Throw) contact configuration for reliable switching.
- Rated for 50mA switch contact current at up to 12V DC.
- Actuator length is 1.7 mm, suitable for low-profile electronic designs.
- Surface mount design enables efficient placement onto PCBs.
- Straight terminal type for easy insertion during assembly.
- Maximum operating temperature up to 70°C ensures stability in varied environments.
- Compact height of 1.35 mm suited for portable and space-constrained devices.
Product Description
Panasonic EVQP7C01P tactile switch push plate is a high-quality electronic component designed for applications requiring precise and responsive user input. This tactile switch features a robust black and grey actuator plate with an actuator length of 1.7 mm, providing enhanced mechanical strength and ensuring reliable operation.
With an SPST (Single Pole Single Throw) contact configuration, the switch facilitates straightforward on/off functionality. It is rated to handle a switch contact current of 50mA at up to 12V DC, making it suitable for integration into a variety of low-power electronic circuits. The straight terminal design supports easy insertion into automatic assembly machinery, thereby improving production efficiency.
Engineered for surface mounting, the EVQP7C01P fits efficiently onto printed circuit boards in compact electronic devices. Its compact height of 1.35 mm and small footprint (series EVQP) make it ideal for space-constrained product designs, such as mobile devices, industrial control panels, and consumer electronics.
The switch operates reliably within a maximum temperature range of 70°C, ensuring stable performance in both industrial and commercial environments. It is non-illuminated, making it best-suited for applications where tactile feedback, rather than visual indication, is required.
Black and grey actuator push plate, reinforced for durability. SPST contact switching for direct circuit control. Surface mount design with straight terminals. 1.7 mm actuator length and 1.35 mm height for low-profile assembly.
Rated for 50mA at 12V DC, perfect for portable and industrial use. Applicable in industrial, laboratory, manufacturing, commercial, and portable electronics industries. Reliable functioning across a wide temperature range.
Whether used in keyboards, control panels, mobile instruments, or embedded devices, this Panasonic Tactile Switch stands out for its precision, robust build, and ease of integration. Explore more industrial switches and electronic components from Panasonic in the EnvMart Switches & Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 70°C, ensuring stable performance in various environments.
The actuator length of this tactile switch is 1.7 mm, designed for low-profile applications.
It features an SPST (Single Pole Single Throw) contact configuration, allowing for straightforward on/off functionality.
The switch is rated for a contact current of 50mA at up to 12V DC, making it suitable for low-power electronic circuits.
This model has a compact height of 1.35 mm, making it suitable for space-constrained designs.
It features a straight terminal type, which supports easy insertion during assembly.
This tactile switch is designed for surface mounting, allowing efficient placement onto printed circuit boards (PCBs).
It is applicable in various industries including industrial, laboratory, manufacturing, commercial, and portable electronics.
The actuator style is a push plate, designed for precise and responsive user input.
The actuator is available in black and grey, providing a visually appealing design.
This model belongs to the EVQP series, which is known for its compact and efficient design.
The switch operation is push-on, allowing for easy activation by pressing the actuator.
