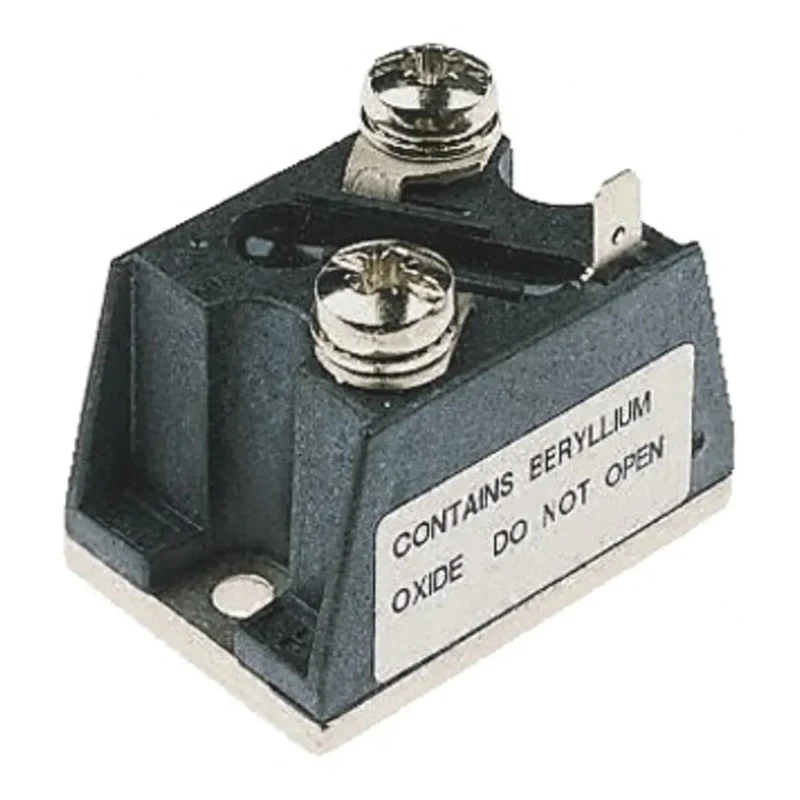

Vishay 100 V 70 A Power Rectifier Diode 2-Pin D-55 VS-T70HF10

Name: Vishay 100 V 70 A Power Rectifier Diode 2-Pin D-55 VS-T70HF10
Brand: Vishay
SKU: 375826
Price: 39.79 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	25mm
Brand	Vishay
Height	25mm
Length	41mm
Model	VS-T70HF10
Width	27mm
Mount Type	Panel
Series	VS-T70HF
Maximum Operating Temperature	150°C
Package Type	D-55
Minimum Operating Temperature	-40°C
Pin Count	2
Maximum Continuous Forward Current If	70A
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Power
Peak Reverse Current Ir	15mA
Peak Non-Repetitive Forward Surge Current Ifsm	1.3kA
Maximum Forward Voltage Vf	1.35V

Key Features

Electrically isolated base plate improves heat dissipation.
Compact 2-pin D-55 package suitable for panel mounting.
High surge current capability up to 1.3 kA for transient conditions.
Maximum forward voltage drop of 1.35 V ensures efficient conduction.
Operating temperature range from -40°C to 150°C for robust performance.
Designed for use in power supplies, battery chargers, welders, motor controls, and industrial rectification.
Compliant with RoHS directive 2002/95/EC supporting environmental safety.
Made in India, new product condition assured.

Product Description

Vishay VS-T70HF10 power rectifier diode offers a peak reverse repetitive voltage of 100 V and a continuous forward current rating of 70 A, housed in a durable 2-pin D-55 package with an electrically isolated base plate that facilitates common heatsink usage and compact assembly.

Its high surge current rating of 1.3 kA and a maximum forward voltage of 1.35 V make it suitable for demanding industrial applications including power supplies, battery chargers, welding machines, motor controls, and general industrial current rectification. The diode operates reliably within a broad temperature range from -40°C to 150°C, ensuring stable performance in harsh environments.

The diode’s physical dimensions - 41 mm length, 27 mm width, and 25 mm height - allow for versatile installation on panels and heatsinks. Compliant with the RoHS directive 2002/95/EC, it meets environmental and safety standards. The product is manufactured in India to guarantee quality and durability.

Electrically isolated base plate for versatile heatsink design. High peak surge current rating of 1.3 kA for transient protection. Compact and robust 2-pin D-55 package construction. Operating temperature range from -40°C to 150°C for flexibility.

Applications in industrial power supplies, battery chargers, and motor controls. Environmentally compliant with RoHS 2002/95/EC directive. Manufactured in India, ensuring consistent quality.

This diode is ideal for industrial, manufacturing, electronics assembly, and power management sectors. EnvMart provides comprehensive listings of Vishay semiconductors and related components for various industrial and commercial uses.
