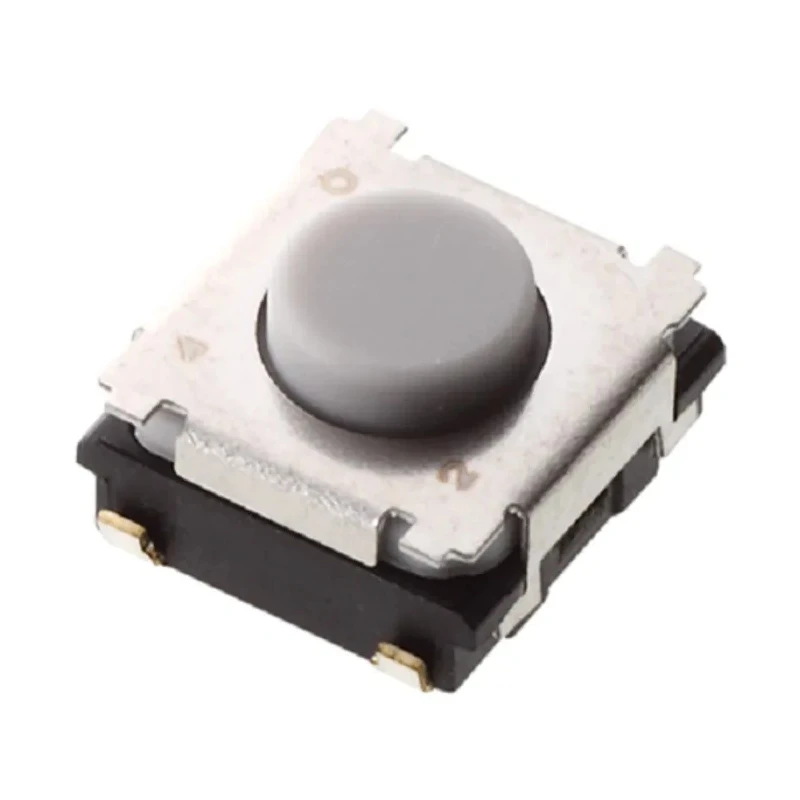

Panasonic Tactile Switch Push Plate, 3.7 mm Actuator, SPST, 20mA, Surface Mount, Black/Grey EVPBFAC1A000

Panasonic EVPBFAC1A000 Tactile Switch Push Plate is a high-performance SMD component designed for reliable operation in electronic assemblies that require tactile feedback. Featuring SPST (Single Pole Single Throw) contact configuration, this switch is ideal for applications demanding precise actuation and minimal space requirements. The actuator has a length of 3.7 mm and comes in black and grey color, offering easy identification and usability in control interfaces.

Operates in Single Pole Single Throw (SPST) contact configuration for reliable switching. Features a 3.7 mm actuator length for comfortable tactile response. Mounts via surface mount technology, ideal for compact electronic assemblies.

Push-on operation with a black and grey straight push plate actuator. Designed with J Bend terminals, ensuring secure PCB connection. Supports up to 20mA switch contact current. Offers a mechanical life of up to 1,000,000 cycles for durability.

Maximum operating temperature of 85°C supports varied environments.

This tactile switch is suitable for use in consumer electronics, PC peripherals, automotive audio systems, instrumentation, and industrial equipment. Its snap action push-on operation provides middle stroke travel that satisfies the requirements for ergonomic and reliable user interfaces. The non-illuminated design is optimized for visual consistency in control panels, while the straight actuator orientation and J Bend terminals ensure easy integration with surface mount PCBs.

The EVPBFAC1A000 boasts a mechanical operating force of 2N, supporting responsive actuation over a million cycles. It is engineered to operate in temperature ranges from -40°C to +85°C, making it compatible with both indoor and outdoor installations and industrial-grade projects. Whether in laboratory setups or commercial devices, this Panasonic tactile switch meets the needs of demanding technical environments.

Typical industrial use cases include equipment control panels, machine interfaces, laboratory instruments, consumer devices, and automotive electronics where tactile feedback and reliability are critical. The compact dimensions (height 3.5 mm) and surface mounting feature make it the preferred choice for modern electronic products.
