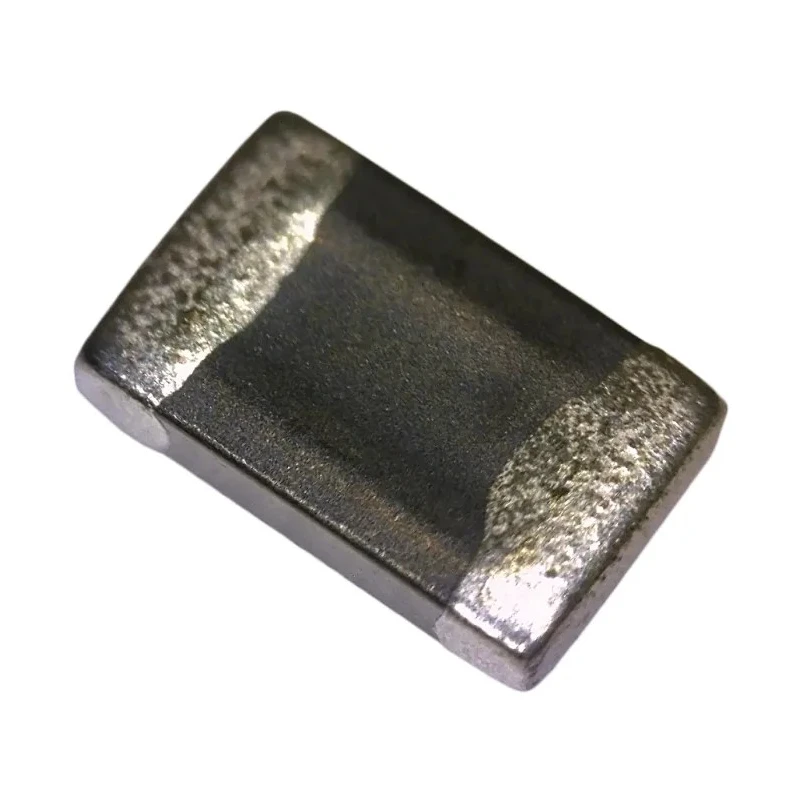

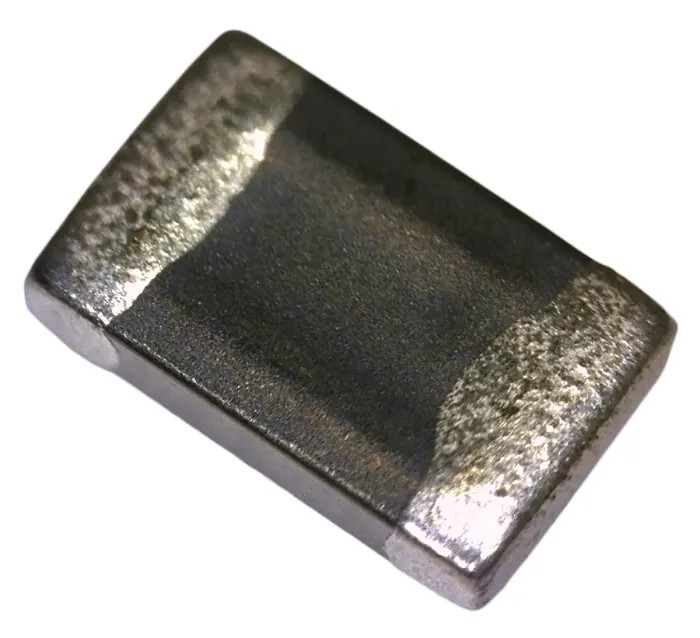

Murata 2.2 µH 0805 Shielded Multilayer Surface Mount Inductor with Ferrite Core LQM21PN2R2MC0D

Murata LQM21PN2R2MC0D is a 2.2 µH shielded multilayer surface mount inductor featuring a ferrite core. This inductor is designed with a compact 0805 package size of 2.0 mm by 1.25 mm, enabling the miniaturisation of electronic devices without compromising performance.

The multilayer construction utilizes Murata's proprietary technology to provide stable inductance with a tolerance of ±20%, suitable for a wide range of electronic and power applications. The ferrite core offers effective magnetic shielding, reducing electromagnetic interference and ensuring signal integrity.

This device supports a maximum DC current of 600 mA and has a low DC resistance of 425 mΩ, enhancing efficiency and thermal performance. It reliably operates across a wide temperature range from -55°C up to 125°C, making it suitable for automotive and industrial environments where temperature variations are expected.

The inductor exhibits a maximum self-resonant frequency of 50 MHz, allowing application in high-frequency circuits. It features solder termination that facilitates secure and reliable PCB mounting. The component is RoHS compliant and manufactured in Japan adhering to strict quality controls.

The LQM21 series is provided on embossed tape packaging designed for automated assembly processes, improving manufacturing throughput and reliability. This inductor is ideal for use in electronic circuits demanding compact size, high performance, and electromagnetic noise immunity including power supplies, RF modules, and signal conditioning circuits.

Compact 0805 package for space-saving PCB layout. Multilayer construction for stable inductance. Ferrite core for effective magnetic shielding. 600 mA maximum DC current rating. Operating temperature range from -55°C to 125°C.

Low DC resistance of 425 mΩ enhancing efficiency. Max self-resonant frequency of 50 MHz for high-frequency use. Solder termination ensures reliable mounting. RoHS compliant and Japan made for trusted quality. Embossed tape packaging supports automated assembly.

Ideal for industrial, automotive, communication, and consumer electronics applications. Explore more Surface Mount Inductors and related components at EnvMart for your design and manufacturing needs.
