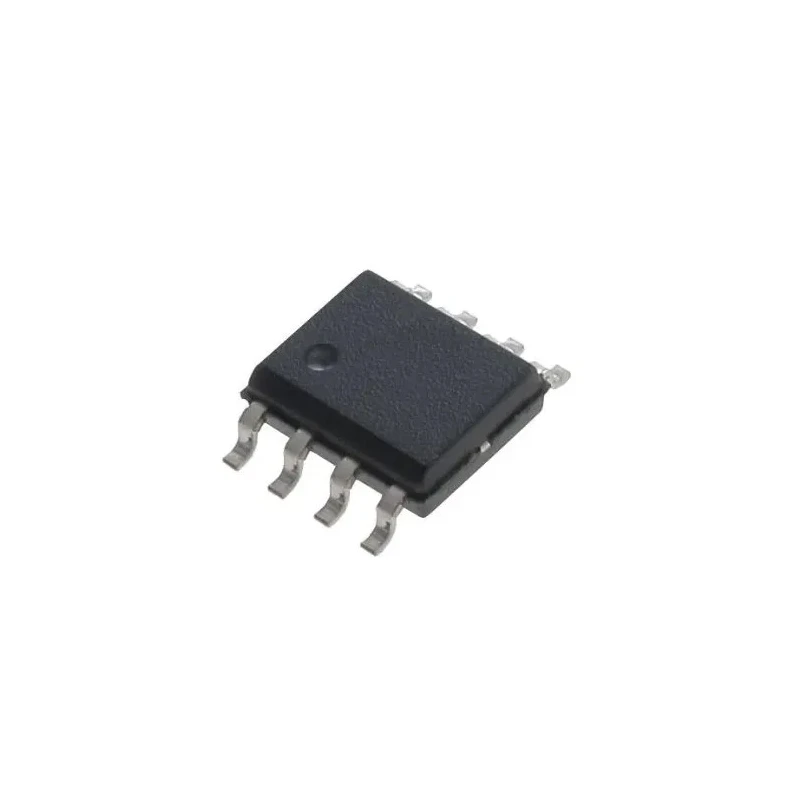

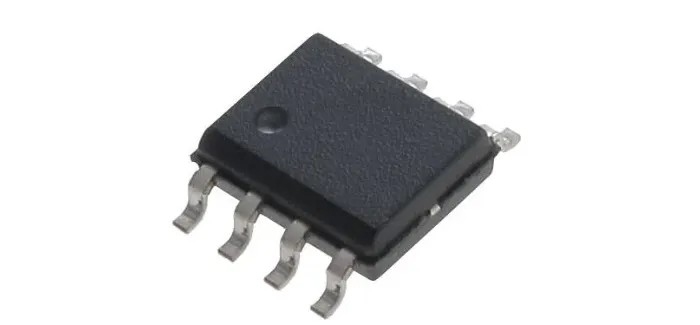

Nisshinbo Micro Devices 2-Channel Audio Amplifier IC 300mW 8-Pin SOP NJM4580E-TE1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJM4580E-TE1 |
| Output Power | 300mW |
| Mount Type | Surface |
| Series | NJM4580 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | -18V |
| Amplifier Type | Audio |
Key Features
- The device features noiseless operation with low distortion ratio.
- It uses bipolar technology for reliable audio performance.
- Suitable for audio equipment and industrial measurement tools.
- Operates with a supply voltage range from -18V to 18V.
- Designed with surface mount package for efficient PCB integration.
- Operating temperature range from -40°C to 85°C ensures durability.
- RoHS compliant ensuring environmentally friendly manufacturing.
- Not intended for automotive applications.
Product Description
Nisshinbo Micro Devices NJM4580E-TE1 is a high-quality 2-channel audio amplifier IC designed to improve tone control in audio applications. This amplifier IC features a low noise and low distortion ratio, built using bipolar technology that enhances audio fidelity in various electronic devices.
The 8-pin SOP surface mount package allows for compact and efficient board layout, making it suitable for modern audio equipment as well as industrial measurement instruments where precise audio amplification is required.
This IC supports a supply voltage range of -18V to 18V and can deliver an output power of 300mW, making it appropriate for pre-amplifier and active audio filter applications. It also operates reliably in an ambient temperature range between -40°C and 85°C, ensuring stable performance under diverse environmental conditions.
The component is RoHS compliant, certifying it free of hazardous substances and suitable for environmentally conscious projects. However, it is not designed for automotive use, focusing primarily on consumer electronics and industrial measurement tools.
The device features noiseless operation with low distortion ratio. It uses bipolar technology for reliable audio performance. Suitable for audio equipment and industrial measurement tools. Operates with a supply voltage range from -18V to 18V.
Designed with surface mount package for efficient PCB integration. Operating temperature range from -40°C to 85°C ensures durability. RoHS compliant ensuring environmentally friendly manufacturing. Not intended for automotive applications.
This amplifier IC is ideal for engineers and designers requiring a reliable audio component for products such as audio pre-amps, active filters, and other sound-processing devices used in industrial and consumer electronics. EnvMart offers this NJM4580E-TE1 model as part of our extensive semiconductor catalog, supporting various technical and industrial applications.
Explore more products in our Audio Amplifier ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The NJM4580E-TE1 audio amplifier IC delivers an output power of 300mW.
It operates with a supply voltage range from -18V to 18V.
The operating temperature range is from -40°C to 85°C.
This model is designed with an 8-pin SOP surface mount package.
It supports 2 channels of audio amplification.
Yes, this audio amplifier IC is RoHS compliant, certifying it free of hazardous substances.
It uses bipolar technology to enhance audio fidelity and performance.
This model is suitable for audio equipment and industrial measurement tools, particularly in pre-amplifier and active filter applications.
The NJM4580E-TE1 has a pin count of 8, designed for compact PCB integration.
The maximum operating temperature is 85°C.
The minimum supply voltage is -18V.
No, this audio amplifier IC is not intended for automotive applications, focusing instead on consumer electronics and industrial tools.
