Vishay 100 V 8 A Surface Mount Schottky Rectifier TO-277A SS8PH10-M3/86A

Vishay SS8PH10-M3/86A is a high performance Schottky rectifier diode designed for applications requiring fast switching and low power loss. With a maximum continuous forward current of 8 A and a peak reverse repetitive voltage rating of 100 V, it is ideal for use in power supply circuits, rectification, and protection circuits in industrial and automotive sectors.

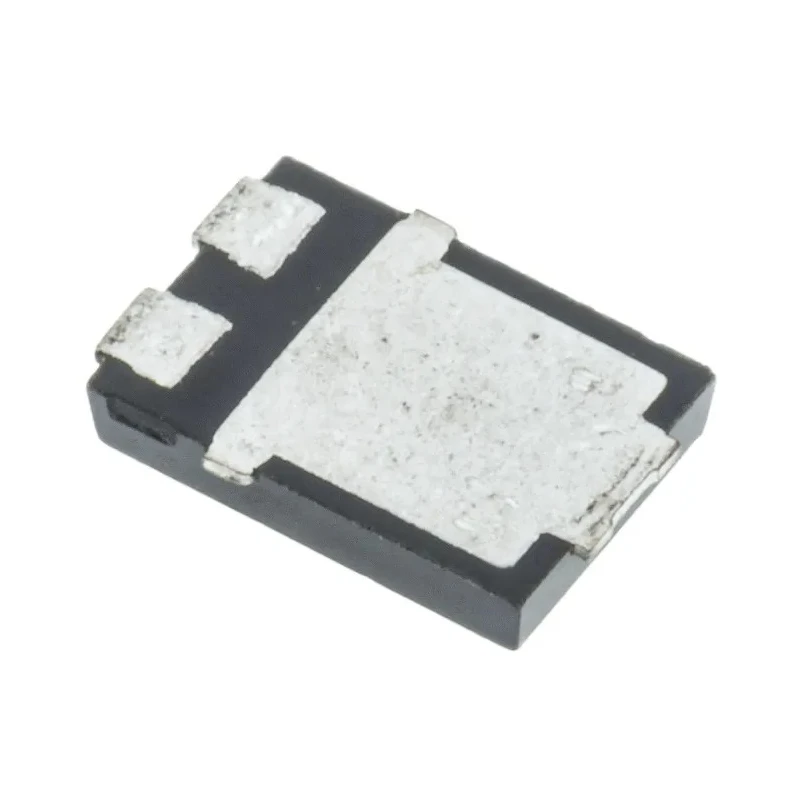

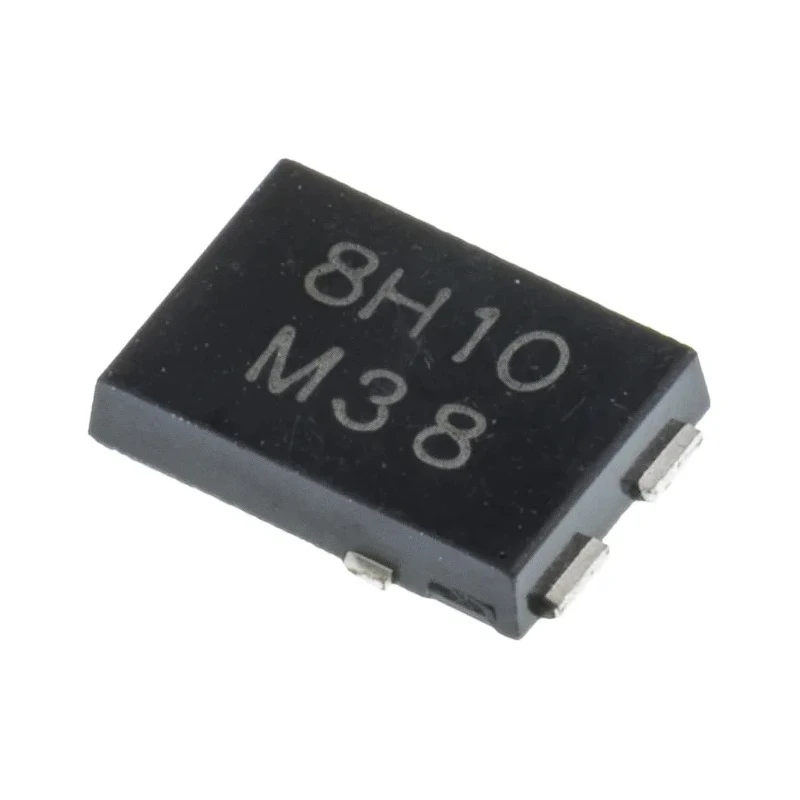

The device features a surface mount TO-277A package that facilitates easy PCB mounting while maintaining low thermal resistance. It exhibits a low forward voltage drop of 900 mV, leading to reduced conduction losses and improved overall system efficiency.

Operating temperature ranges from -55°C to 175°C make it suitable for demanding environments. It also meets various industry standards including JEDEC TO-277A, JESD 201, J-STD-002, J-STD-020, RoHS compliance, and UL 94 V-0 fire safety standard. The AEC-Q101 automotive standard certification confirms its applicability in automotive electronic systems.

The compact 3-pin design with physical dimensions of 4.35 mm in length, 6.15 mm in width, and 1.2 mm in height allows integration in space-constrained designs. A peak non-repetitive forward surge current rating of 150 A ensures robustness against transient overloads.

Surface mount TO-277A package provides reliable mechanical and electrical connection. 8 A continuous forward current rating for medium power applications. Low forward voltage of 900 mV reduces thermal losses. Wide temperature range (-55°C to 175°C) supports various industrial applications.

Compliance with JEDEC, RoHS, and automotive standards assures quality and safety. Compact size ideal for space-limited PCB layouts. Automotive AEC-Q101 certified for reliability in automotive electronics. Peak non-repetitive surge current capacity of 150 A enhances transient tolerance.

This Schottky rectifier is widely used in industrial power supplies, automotive electronic controls, renewable energy systems, and other semiconductor-based power conversion applications. Its features support efficient energy management and reliable performance under rigorous environmental conditions.
