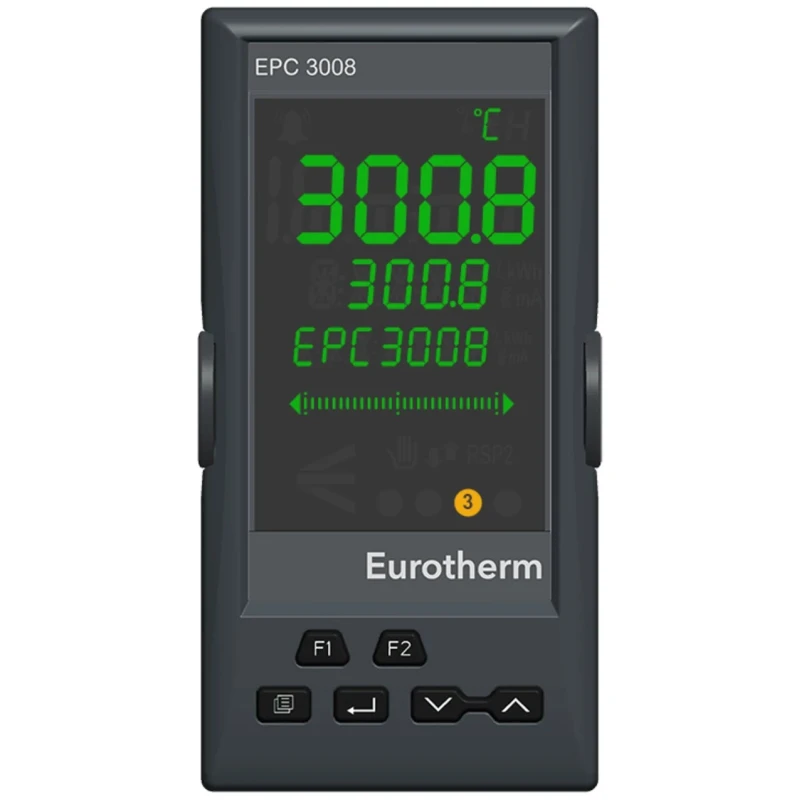

Eurotherm Panel PID Controller 1 Input 2 Relay Logic SSR 24V LCD Display IP65 Panel Mount EPC3008

Eurotherm EPC3008 is a panel-mounted programmable single loop PID controller engineered for precise thermal process control and other industrial applications. It features one input and two relay outputs, supporting Logic and SSR 24V control outputs, suitable for integration in digitized environments requiring industrial-grade control performance.

This controller is designed to optimize production yield with enhanced PID control algorithms including cutback functions for fast response and minimal overshoot. Its precision inputs meet rigorous aerospace quality standards such as AMS2750 and CQI-9, making it highly suitable for demanding industrial and laboratory environments.

The unit displays operational parameters on a clear LCD screen and supports input via current, thermocouple, or voltage sensors. Its solid construction includes an IP65 rating for panel-mounting, ensuring durability and protection against dust and water ingress in industrial settings.

Connectivity options include high-speed Ethernet with an RJ45 connector, enabling seamless integration with Industry 4.0 and Industrial Internet of Things (IIoT) platforms using protocols such as Modbus, Ethernet/IP, and BACnet. Safety features include an optional Factory Mutual approved temperature limit to protect critical processes.

Screw-type terminals allow secure wiring installation, and the controller supports up to 20 ramp/soak programming profiles for versatile process management. Its compact dimensions of 101mm length, 48mm width, and 90mm panel depth make it adaptable to a range of control panels.

Equipped with a clear LCD display for easy operation and monitoring. Supports input types including Current, Thermocouple, and Voltage. Panel mount design with compact dimensions of 101mm length, 48mm width, and 90mm panel depth.

Operates reliably within 0 to 55°C temperature range with robust IP65 protection. Advanced PID control technology for precise temperature and process regulation. High-speed Ethernet interface with RJ45 connector for IIoT and Industry 4.0 integration.

Compliant with RoHS standards ensuring environmental safety. Factory Mutual approved temperature limit option available for safety applications. Termination via screw terminals for secure electrical connections. Designed and manufactured in Poland, guaranteeing quality and reliability.

The Eurotherm EPC3008 is suitable for industrial automation, manufacturing, HVAC, laboratory instrumentation, and other process control applications requiring high accuracy and reliable operation. Explore more solutions in the Temperature Controllers category at EnvMart.
