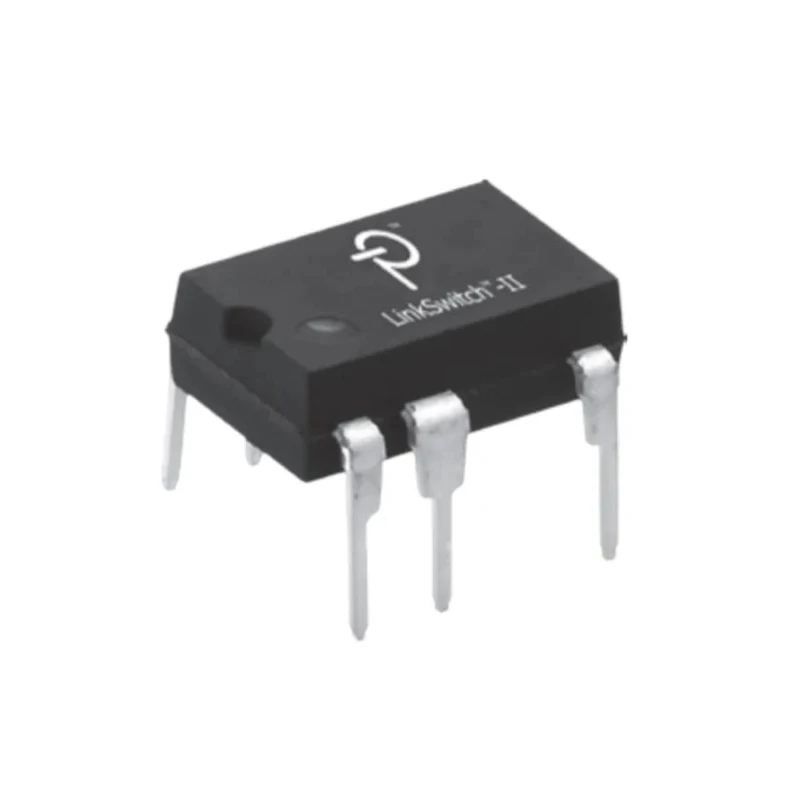

Power Integrations AC/DC Converter 360mA 50V 7-Pin PDIP LNK3206P

Power Integrations LNK3206P AC/DC Converter is a versatile power management integrated circuit designed for flyback topology power supplies. It offers a maximum output current of 360 mA and a maximum output voltage of 50 V in a compact 7-pin PDIP through-hole package. This device supports buck, buck-boost, and flyback topologies, enabling designers to create low component count, cost-efficient switching power supplies with optimal performance.

Operating at a switching frequency of 66 kHz, the LNK3206P features an accurate current limit function with selectable device current limits, allowing for flexible power delivery and the use of low-cost inductors and magnetics. Its frequency jittering capability helps reduce EMI filter complexity, making it easier to meet regulatory standards.

The IC includes an auto-restart functionality that protects against short-circuit and open-loop faults by limiting power delivery to just 3% of maximum during faults, thereby enhancing system reliability. The device also benefits from a wide operating temperature range of -40°C to 150°C and accommodates input voltages from 85V to 265V AC, making it suitable for various industrial, commercial, and consumer electronic applications.

Its through-hole PDIP package with 7 pins simplifies PCB layout and heat sinking, improving mechanical robustness during manufacturing. Low quiescent supply current at 141μA contributes to energy-saving designs, especially in standby modes. The maximum duty cycle of 69% and high current limit extend both peak and continuous output power capabilities, maximizing efficiency for power supply designs.

Supports buck, buck-boost, and flyback topologies with a low component count. Selectable device current limit optimizes power and component cost. 66 kHz switching frequency ensures efficient operation and EMI control. Auto-restart protects against fault conditions, improving reliability.

Frequency jittering reduces EMI filter complexity. Compact 7-pin PDIP package simplifies heat sinking and PCB design. Wide operating temperature range: -40°C to 150°C. Input voltage range: 85V AC minimum to 265V AC maximum.

Low supply current of 141μA reduces energy consumption. Maximum duty cycle of 69% supports extended power delivery.

This AC/DC Converter IC is ideal for industrial, commercial, and consumer applications requiring compact, efficient power supplies with reliable fault protection. For comprehensive designs, it supports standard inductors and provides excellent load and line regulation. Explore related power management ICs and components to enhance system performance within EnvMart’s electronics suite.
