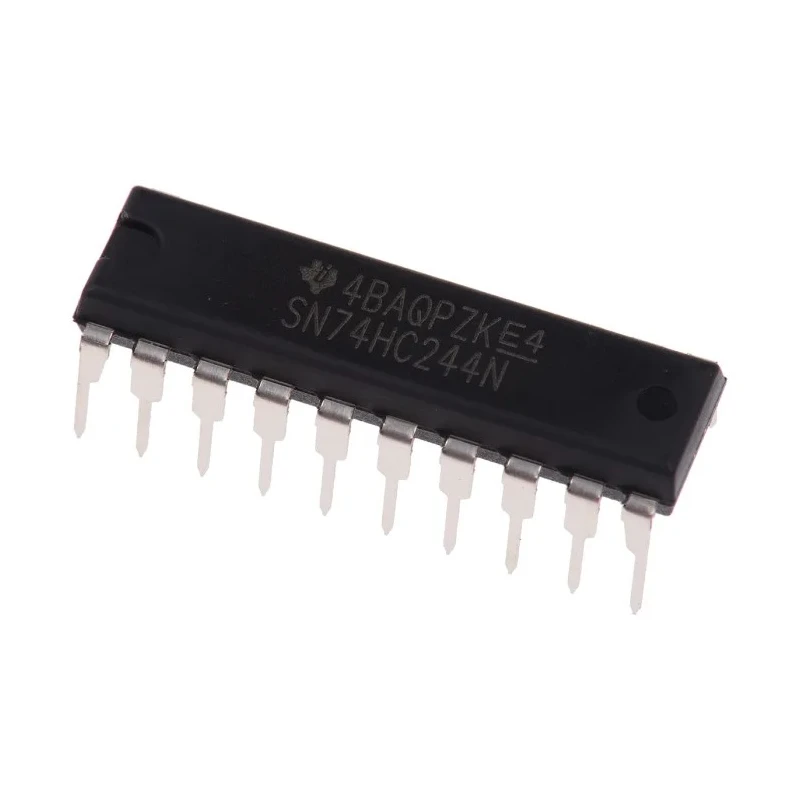

Texas Instruments 8-Channel Buffer & Line Driver, 3 State, Non-Inverting, 20-Pin PDIP SN74HC244N

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments 8-Channel Buffer & Line Driver, 3 State, Non-Inverting, 20-Pin PDIP SN74HC244N

Name: Texas Instruments 8-Channel Buffer & Line Driver, 3 State, Non-Inverting, 20-Pin PDIP SN74HC244N
Brand: Texas Instruments
SKU: 136884



Category Line Interface ICs Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	5.08mm
Length	26.92mm
Model	SN74HC244N
Width	6.6mm
Mount Type	Through Hole
Compatibility	Input CMOS, Output CMOS
Output type	3 State
Series	SN74HC244
Input Type	Single Ended
Maximum Operating Temperature	85°C
Package Type	PDIP
Minimum Operating Temperature	-40°C
Polarity	Non-Inverting
IC Type	Buffer & Line Driver IC
Number Of Channels	8
Operating Voltage	2 to 6 V
Pin Count	20
Automotive Standard	AEC-Q100
Maximum Supply Voltage	6V
Logic Family	HC
Logic Function	Buffer & Line Driver
Minimum Supply Voltage	2V
Maximum High Level Output Current	-7.8mA
Maximum Propagation Delay Time @ CL	11ns
Supply Current	80μA
Maximum Low Level Output Current	7.8mA

Key Features

Operates on supply voltage range from 2V to 6V ensuring compatibility across applications.
Provides 8 channels of buffering and line driving functionality with single-ended input and 3 state output.
Maximum propagation delay time at capacitive load is 11 ns for high-speed logic performance.
Features non-inverting polarity ensuring signal integrity through the buffer.
Complies with automotive standard AEC-Q100, suitable for automotive and industrial environments.
Designed with a silicon gate CMOS technology for high speed and low power consumption.
Has a pin count of 20 pins housed in a PDIP package for easy PCB integration.
Operating temperature ranges from -40°C to 85°C allowing reliable operation in harsh conditions.

Product Description

Texas Instruments SN74HC244N is an 8-channel buffer and line driver integrated circuit featuring 3 state outputs and non-inverting functionality. It is packaged in a 20-pin PDIP, designed for through-hole mounting applications. The device operates within a voltage range of 2 to 6 V, making it versatile for various electronic designs.

This logic IC belongs to the 74HC family and uses high-speed CMOS technology, offering the speed of LSTTL with low CMOS power consumption. It provides buffering and line driving capabilities with low propagation delay of 11 ns at capacitive loads and supports single-ended inputs.

With a maximum high-level output current of -7.8 mA and low-level output current of 7.8 mA, the SN74HC244N ensures robust signal driving capabilities. The device meets automotive standard AEC-Q100, making it suitable for demanding industrial and automotive applications where reliability under challenging conditions is required.

The operating temperature range from -40°C to 85°C enables operation in diverse environmental conditions. Its PDIP packaging allows easy integration into printed circuit boards with through-hole technology. Its supply current is low at 80 μA, aiding in power-sensitive applications.

Applications include digital buffering, signal isolation, and line driving in digital circuits within industrial, automotive, and consumer electronics contexts. The SN74HC244N is compatible with both input and output CMOS logic levels, ensuring seamless integration in modern logic systems.

Operates from 2 V to 6 V supply voltage. 8-channel buffer and line driver IC with non-inverting polarity. 3 state output enabling bus-oriented applications. 20-pin PDIP package suitable for through-hole mounting. Automotive standard AEC-Q100 qualified.

Low supply current of 80 μA for energy-efficient designs. High-speed CMOS logic family ensuring fast operation. Operating temperature range from -40°C to 85°C. Propagation delay time of 11 ns at capacitive load. Output currents of ±7.8 mA for robust signal drive.

For selection of similar Line Interface ICs and advanced buffer solutions, explore the semiconductor category on EnvMart.
