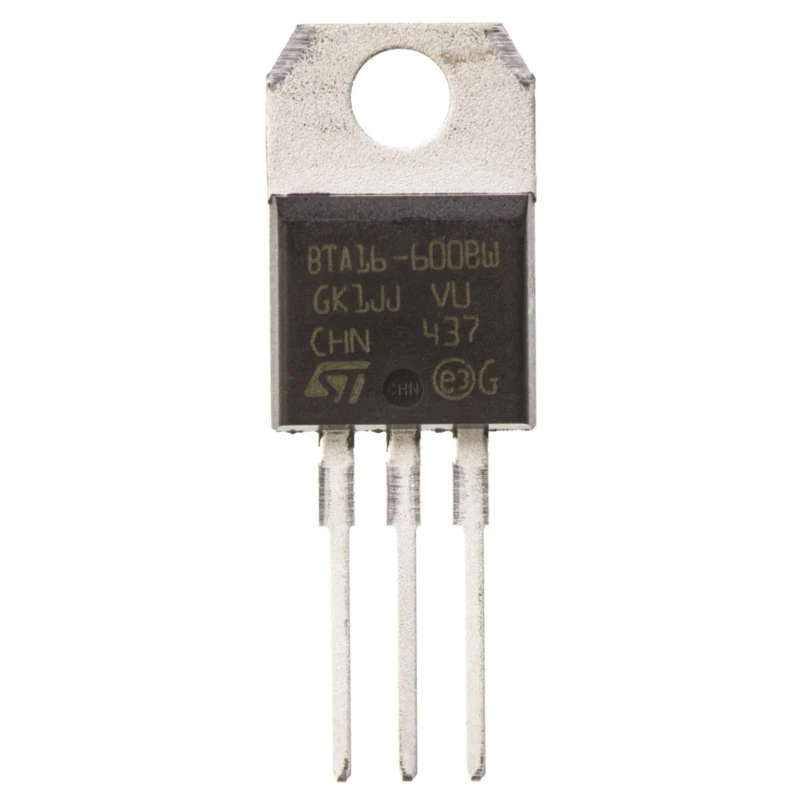

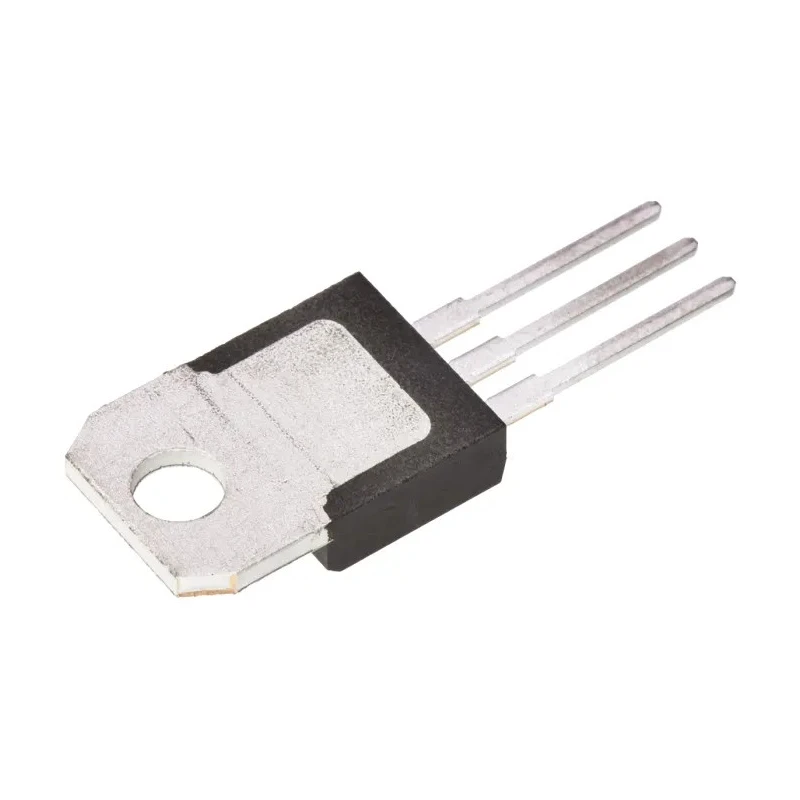

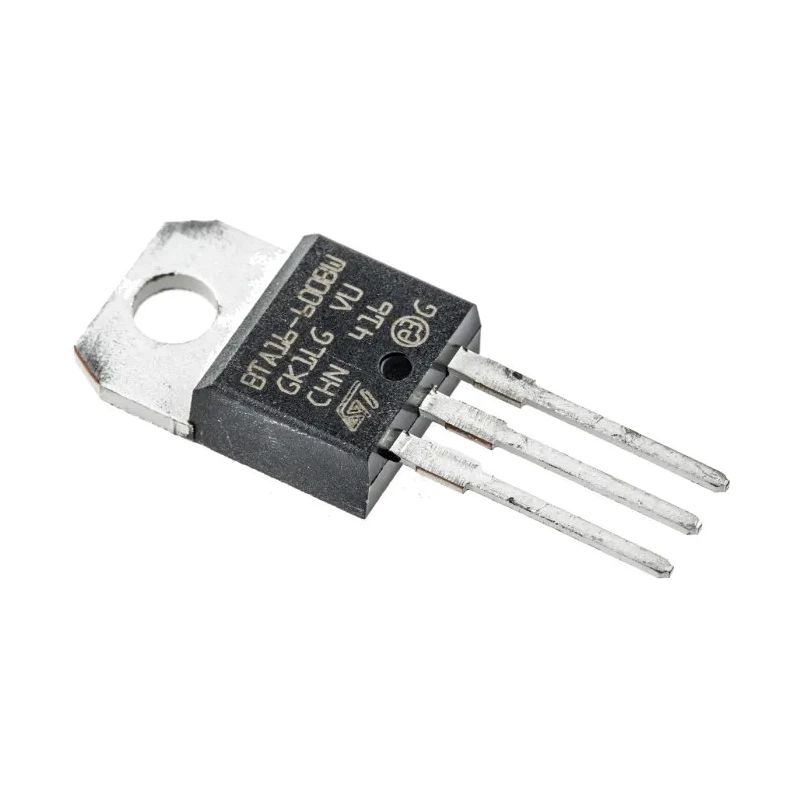

STMicroelectronics Through Hole 3-Pin TRIAC 16A 600 V Gate Trigger 1.3 V BTA16-600BWRG

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Through Hole 3-Pin TRIAC 16A 600 V Gate Trigger 1.3 V BTA16-600BWRG

Name: STMicroelectronics Through Hole 3-Pin TRIAC 16A 600 V Gate Trigger 1.3 V BTA16-600BWRG
Brand: STMicroelectronics
SKU: 189939
Price: 1.48 USD
Availability: InStock



Category TRIAC Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	9.3mm
Length	10.4mm
Model	BTA16-600BWRG
Mount Type	Through Hole
Configuration	Single
Maximum Operating Temperature	125°C
Package Type	TO-220
Minimum Operating Temperature	-40°C
Pin Count	3
Rated Average On-State Current Irms	16A
Repetitive Peak Reverse Voltage VDRM	600V
Surge Current Rating	168A
Maximum Gate Trigger Current Igt	50mA
Maximum Holding Current Ih	50mA
Maximum Gate Trigger Voltage Vgt	1.3V
Peak On-State Voltage	1.55V
Repetitive Peak Off-State Current	5μA
Peak Gate Power Dissipation	1W
STMicroelectronics Through Hole, 3-pin, TRIAC, 800V, Gate Trigger 1.3V 600VBrand	STMicroelectronics

Key Features

Through hole mount type for easy PCB integration.
TO-220 package ensures reliable thermal performance.
Maximum gate trigger current of 50 mA for sensitive control.
Operation temperature range from -40°C to 125°C for robust applications.
Single configuration TRIAC suitable for AC power control.
Maximum surge current rating of 168 A for transient load handling.
Peak on-state voltage of 1.55 V ensures efficient conduction.
Low repetitive peak off-state current of 5 μA reduces leakage losses.

Product Description

STMicroelectronics BTA16-600BWRG is a discrete semiconductor TRIAC device featuring a through hole 3-pin design. It is rated for an average on-state current of 16A and can withstand a repetitive peak reverse voltage of 600 V, making it highly suitable for AC power switching and control applications.

This TRIAC device comes in a TO-220 package, providing effective heat dissipation and mechanical stability during installation on PCBs. It has a maximum gate trigger voltage of 1.3 V and gate trigger current of 50 mA, enabling precise triggering control. The device maintains operation efficiency with a peak on-state voltage of 1.55 V and peak gate power dissipation of 1 W.

Designed for reliability, the BTA16-600BWRG operates over a temperature range from -40°C to 125°C, supporting industrial and consumer electronic environments. Its surge current rating of 168 A allows it to handle high transient load conditions without damage.

Applications include AC motor speed controls, light dimmers, static relays, and other power control circuits requiring durable and efficient TRIAC switching components. The product does not hold automotive or additional compliance standards but meets essential thermal and electrical parameters for diverse industrial and commercial uses.

Through hole mount type for easy PCB integration. TO-220 package offers excellent heat dissipation. Maximum gate trigger current 50 mA ensures sensitive control. Operation temperature range from -40°C to 125°C for robustness.

Single configuration for flexible AC power switching. High surge current rating of 168 A protects against spikes. Low off-state leakage current minimizes power loss. Peak On-state voltage of 1.55 V aids efficiency. Suitable for industrial, home, and consumer electronics.

Trusted STMicroelectronics quality and durability. Browse more semiconductor and TRIAC devices on EnvMart for advanced power switching solutions and reliable components for your electrical and electronics projects.
