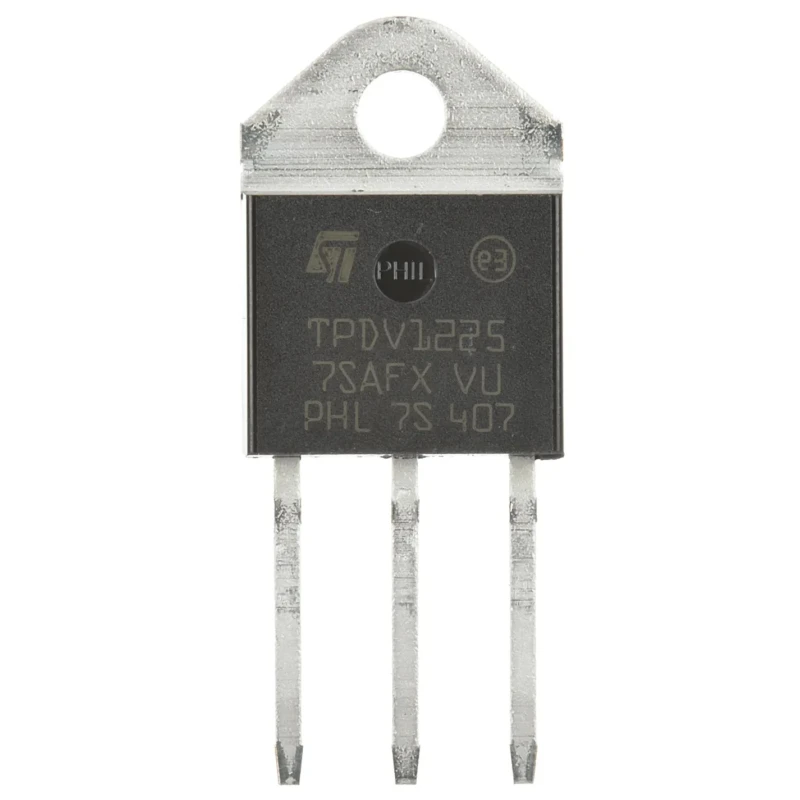

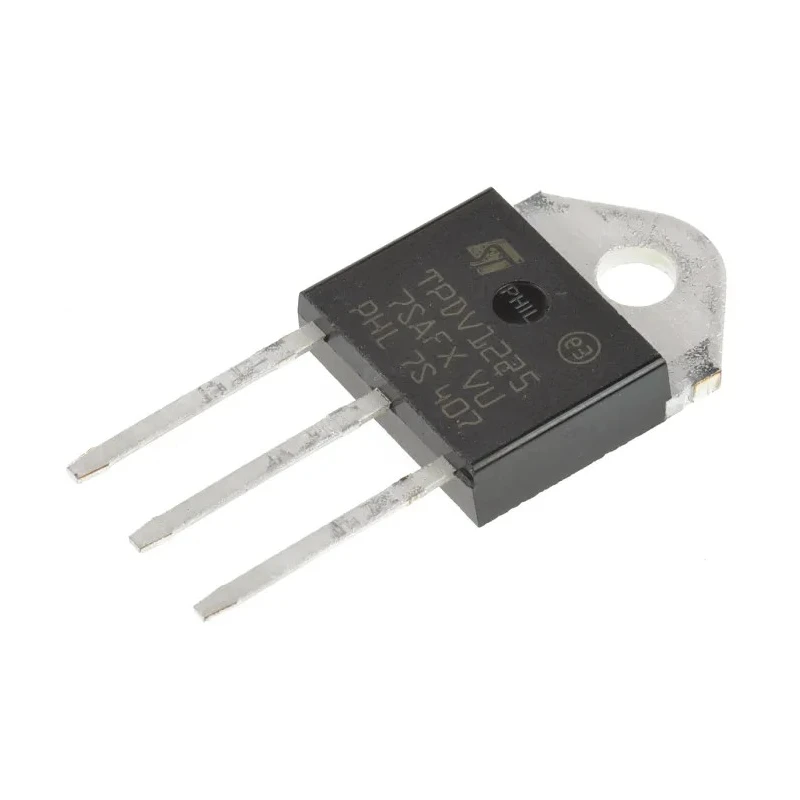

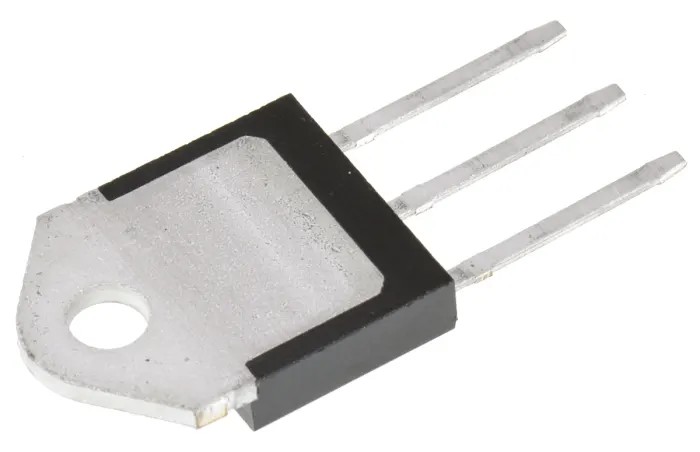

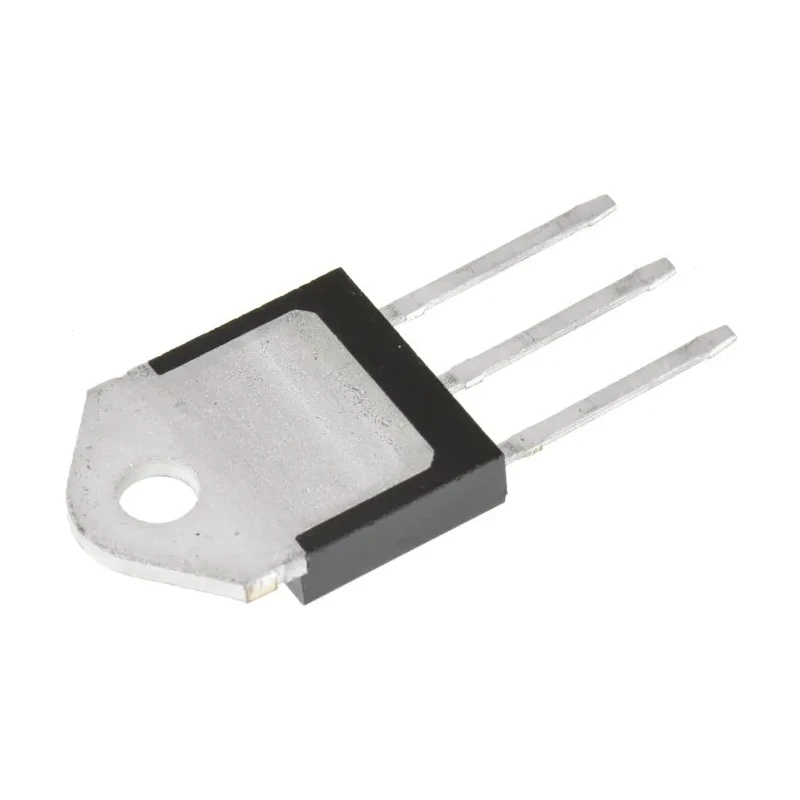

STMicroelectronics Through Hole 3-Pin TRIAC 1200 V Gate Trigger 1.5 V TPDV1225RG
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 12.85mm |
| Length | 15.5mm |
| Model | TPDV1225RG |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | TOP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 25A |
| Repetitive Peak Reverse Voltage VDRM | 1200V |
| Surge Current Rating | 390A |
| Maximum Gate Trigger Current Igt | 150mA |
| Maximum Gate Trigger Voltage Vgt | 1.5V |
| Peak On-State Voltage | 1.8V |
| Repetitive Peak Off-State Current | 0.02mA |
| Peak Gate Power Dissipation | 1W |
Key Features
- Rated average on-state current of 25 A for reliable conduction.
- Through hole mount type with TOP package ensures easy PCB integration.
- Maximum gate trigger current is 150 mA for efficient triggering.
- Surge current rating up to 390 A for transient durability.
- Operating temperature range from -40°C to 125°C for diverse industrial conditions.
- Repetitive peak reverse voltage of 1200 V providing high voltage tolerance.
- Compact dimensions with 15.5 mm length and 12.85 mm height.
- RoHS compliant ensuring environmental safety and regulatory conformity.
Product Description
STMicroelectronics TPDV1225RG is a discrete semiconductor TRIAC designed for switching and control applications requiring high voltage and current capabilities. Featuring a 3-pin through hole configuration, this TRIAC supports a rated average on-state current of 25 A and repetitive peak reverse voltage of 1200 V, making it suitable for various power control and automation tasks in industrial, commercial, and consumer electronics.
The device's gate trigger voltage of 1.5 V and maximum gate trigger current of 150 mA ensure efficient gating performance, enabling precise control over AC power circuits. With a surge current rating of 390 A, it can withstand transient overloads without failure, enhancing reliability in demanding environments.
This TRIAC comes in a TOP package with compact dimensions of 15.5 mm length and 12.85 mm height, allowing easy PCB mounting through a through hole design. Operating temperature ranges from -40°C to 125°C ensure suitability across a wide range of industrial and temperature-critical applications. The product is fully RoHS compliant, supporting environmentally responsible manufacturing standards.
Applications of the TPDV1225RG TRIAC include AC motor control, light dimming, heater control, and general power switching in industrial, HVAC, manufacturing, and electronic control systems. Its single configuration provides straightforward implementation into various circuit designs.
Rated average on-state current of 25 A for reliable conduction. Through hole mount in TOP package for easy PCB integration. Maximum gate trigger current of 150 mA enables efficient triggering. Surge current rating of 390 A provides robustness under transient conditions.
Wide operating temperature range from -40°C to 125°C. 1200 V repetitive peak reverse voltage for high voltage tolerance. Compact size with 15.5 mm length and 12.85 mm height for versatile design. RoHS compliant for environmental and regulatory compliance.
Explore the STMicroelectronics product range and find similar high-quality TRIAC solutions in the Electronics & Electricals > Semiconductor > TRIAC category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TPDV1225RG has a rated average on-state current of 25 A, ensuring reliable conduction in various applications.
The maximum gate trigger current for the TPDV1225RG is 150 mA, which enables efficient triggering performance.
This model has a surge current rating of 390 A, allowing it to withstand transient overloads without failure.
The operating temperature range for this TRIAC is from -40°C to 125°C, making it suitable for diverse industrial conditions.
The repetitive peak reverse voltage of this model is 1200 V, providing high voltage tolerance for various applications.
The dimensions of the TPDV1225RG are 15.5 mm in length and 12.85 mm in height, allowing for compact PCB integration.
This TRIAC uses a through hole mounting type with a TOP package, facilitating easy integration onto PCBs.
The TPDV1225RG is suitable for applications such as AC motor control, light dimming, heater control, and general power switching.
Yes, the TPDV1225RG is RoHS compliant, ensuring it meets environmental safety and regulatory standards.
The peak on-state voltage for this TRIAC is 1.8 V, which is relevant for its operational characteristics.
The TPDV1225RG features a 3-pin configuration, which is standard for this type of TRIAC.
The maximum gate trigger voltage for the TPDV1225RG is 1.5 V, which is important for effective triggering.
