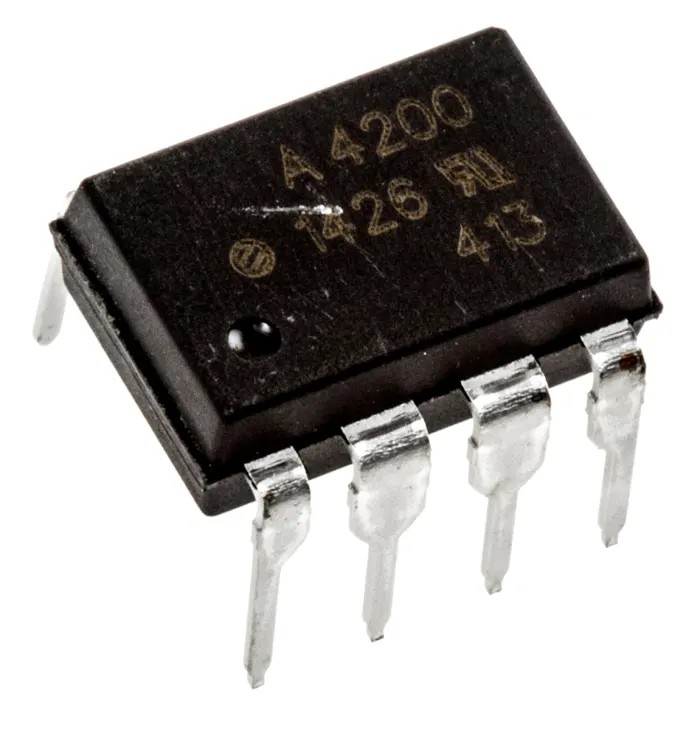

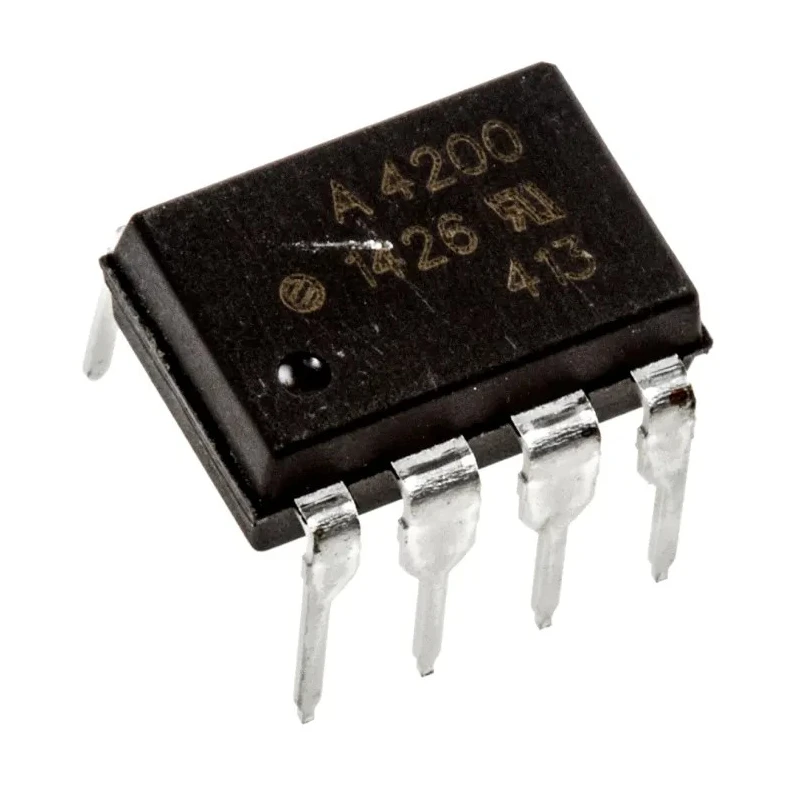

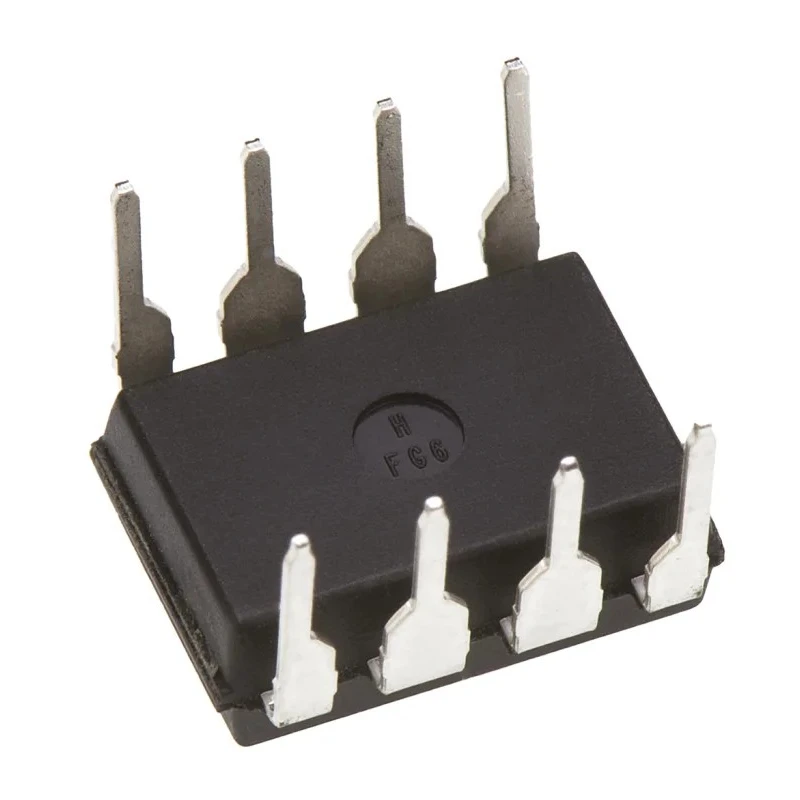

Broadcom DC Input Optocoupler Through Hole 8-Pin PDIP HCPL-4200-000E

Broadcom HCPL-4200-000E is a DC input optocoupler featuring through-hole mounting and an 8-pin PDIP package, designed for industrial electronic applications where high noise immunity is critical.

This single channel optocoupler supports 4mA-to-20mA current-loop communication, allowing analogue sensor data transmission over long distances of up to 9 km in electrically noisy environments. The device has a typical rise time of 55 ns and fall time of 0.015 µs, enabling fast and reliable signal switching.

It operates with a maximum input current of 30 mA and uses a DC input current type, with an isolation voltage rating of 3750 V ac that ensures electrical safety between circuits. The operating temperature range spans from -40°C to 85°C, making it suitable for demanding industrial conditions.

The component meets UL 1577 and CSA standards, underscoring its safety and quality compliance. Its logical output feature facilitates straightforward interfacing with digital electronics.

The PDIP package's through-hole mounting type allows secure and stable installation on printed circuit boards, making it well-suited for industrial automation, instrument control, power equipment, and communication systems.

This optocoupler is ideally used in industrial, manufacturing, HVAC, and electrical systems where reliable signal isolation and noise immunity are required to enhance equipment performance and safety.

Through hole mounting type with an 8-pin PDIP package for stable installation. Single channel optocoupler optimized for 4mA-to-20mA current-loop communication up to 9 km distance. Offers a typical rise time of 55 ns and typical fall time of 0.015 µs for fast signal processing.

Maximum input current of 30 mA with DC input current type suitable for industrial controls. Isolation voltage rated at 3750 V ac ensuring safety and noise immunity between circuits. Operational temperature range from -40°C to 85°C for reliable performance in harsh conditions.

Certified to safety standards UL 1577 and CSA for compliance and reliability assurance. Logic output available to interface easily with digital systems. Compact PDIP form factor allows for easy integration into existing electronic designs.
