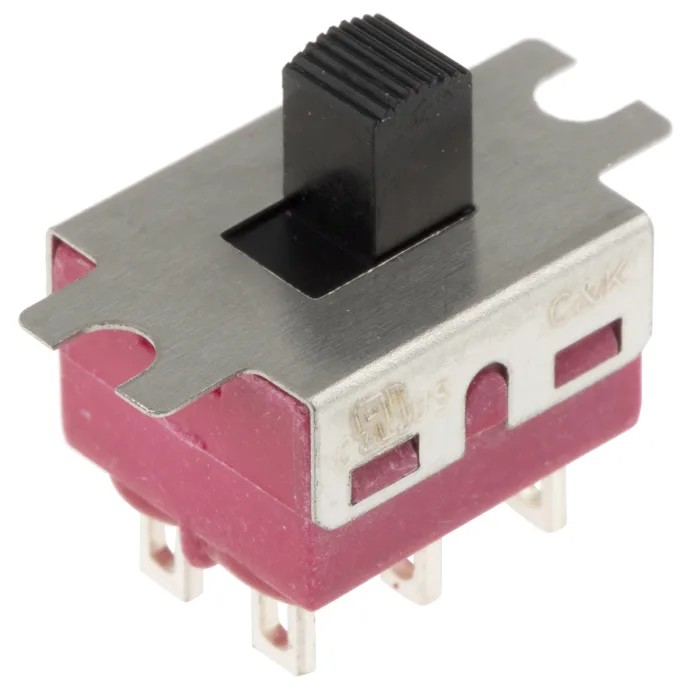

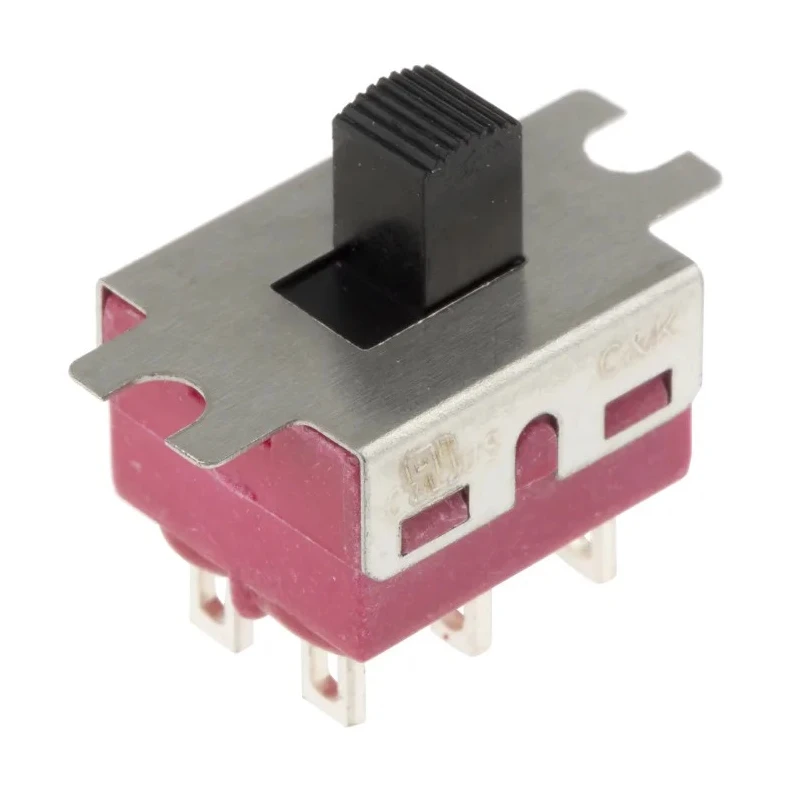

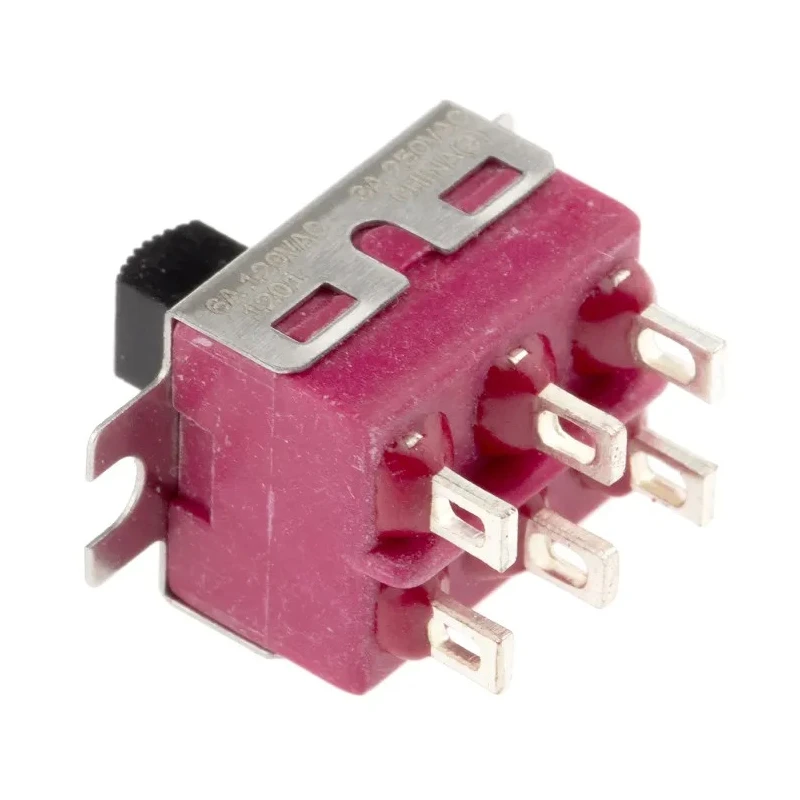

C & K Panel Slide Switch DPDT Latching 6A Nylon 1201M1S3ZQE2

C & K 1201M1S3ZQE2 Panel Slide Switch DPDT Latching 6A Nylon is a high-quality slide switch designed for panel mounting that reliably controls electrical circuits in industrial and commercial applications. This DPDT (Double Pole Double Throw) latching switch features a robust nylon actuator providing precise switching action and durability.

Its solder terminal type ensures strong electrical connections, suitable for medium-load switching with a maximum contact current rating of 6A. The switch supports a contact DC voltage of 28V and an AC voltage rating of 250V, making it versatile for various electrical environments.

Constructed with a UL 94V-0 certified diallyl phthalate case, the switch offers excellent resistance to flame and mechanical stress. It operates effectively across a wide temperature range from -30°C to +65°C, ensuring stable functionality in harsh conditions. The mechanical life rating of 40,000 cycles reflects durable performance in demanding applications.

Compact in size with dimensions of 12.7mm length by 12.7mm width and a depth of 11.43mm, this panel Slide Switch fits easily into constrained spaces in equipment such as test and measurement instruments, telecommunications devices, and computer peripherals.

UL and CSA certifications support the product’s compliance with international safety and quality standards, making it a reliable choice for industrial automation and electrical control systems.

The switch features a DPDT contact configuration for versatile control options. It operates with a latching mechanism, ensuring stable switch states. Rated for 6A contact current, suitable for medium power circuits. Constructed with a nylon actuator and UL 94V-0 diallyl phthalate case for durability.

Supports a contact voltage of 28V DC and 250V AC for diverse applications. Panel mount type with solder terminal connections for secure installation. Designed to operate within a temperature range of -30°C to +65°C. Mechanical life expectancy of 40,000 cycles ensures long-lasting performance.

Compact dimensions support easy panel integration. Approved by UL and CSA for safety compliance.

Ideal for industrial, automation, instrumentation, telecommunications, and computer peripheral applications, this switch offers dependable performance where reliable circuit control is essential. Explore more switches and electrical components to complement your installations at EnvMart.
