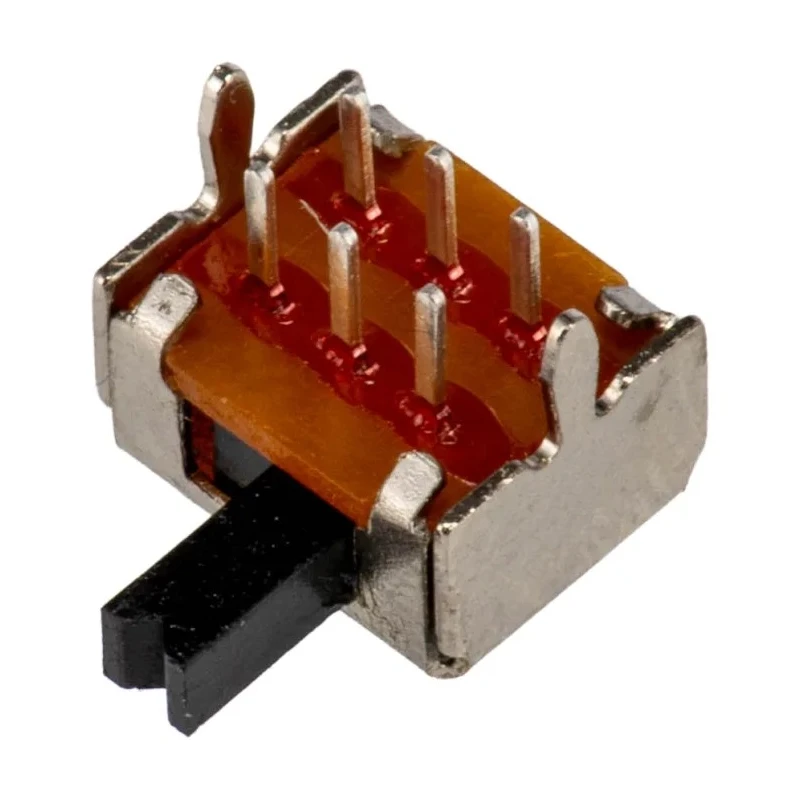

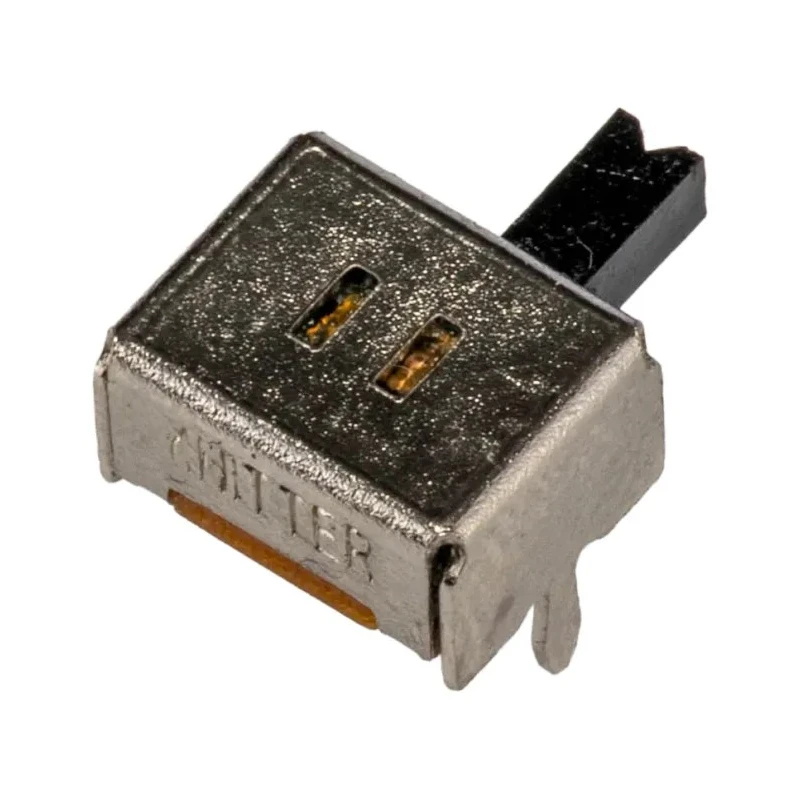

KNITTER-SWITCH PCB Slide Switch DPDT Latching 100mA Silver over Nickel Plated Copper Alloy MFP213N-RA
Specifications
| Country of Origin | China |
|---|---|
| Brand | KNITTER-SWITCH |
| Length | 8.6mm |
| Model | MFP213N-RA |
| Depth | 8.7mm |
| Width | 8.7mm |
| Mount Type | PCB |
| Series | MFP |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -20°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | Latching |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Mechanical Life | 10000Operations |
| Actuator Material | Silver over Nickel Plated Copper Alloy |
Key Features
- The switch features a DPDT (Double Pole Double Throw) contact configuration.
- It operates with a latching mechanism for reliable operation.
- Suitable for PCB mounting with solder terminal types.
- Maximum switch contact current is rated at 100mA.
- Contact voltage rating is 30V DC.
- The mechanical life expectancy is 10,000 operations.
- The actuator material is silver plated over nickel on copper alloy for durability.
- Operating temperature range extends from -20°C to 85°C.
Product Description
KNITTER-SWITCH MFP213N-RA PCB Slide Switch DPDT Latching 100mA features a compact design with silver over nickel plated copper alloy contacts, delivering reliable switching performance for electrical and electronic circuits. The switch is designed specifically for PCB mounting applications and is equipped with solder terminals for secure connections.
This miniature slide switch employs a double pole double throw (DPDT) contact configuration with latching operation, providing dependable control for various automation and electrical systems. Its compact size and robust construction allow integration into dense PCB layouts where space and performance are critical.
The switch is rated for a maximum current of 100mA and a DC voltage of 30V, making it suitable for low power electronic switching applications. The actuator mechanism is engineered to provide a tactile latching feel, enhancing user control and system reliability.
Constructed to endure a mechanical life of 10,000 operations, this switch ensures durability and long service life in industrial and laboratory equipment. The actuator's silver over nickel plated copper alloy material not only improves conductivity but also resists corrosion, ensuring consistent contact performance over time.
With overall dimensions of 8.6mm in length, 8.7mm in width, and 8.7mm in depth, this switch fits compact design requirements without compromising mechanical strength or electrical integrity. It operates reliably in temperature environments ranging from -20°C to 85°C, suitable for varied industrial and commercial applications.
The switch seamlessly supports applications in Electronics, Electrical Automation, Instrumentation, and Control Systems. Its RoHS compliance ensures environmental safety and adherence to international manufacturing standards.
Typical uses include assembly in PCB-level circuit control, automation devices, and signal switching mechanisms.
The MFP Series by KNITTER-SWITCH is recognized for miniature Slide Switch solutions combining compact form and reliable performance, well-suited for efficient electrical design and manufacturing.
Explore our Electronics & Electricals category for more advanced switch solutions and accessories at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile switching capabilities in various applications.
The maximum switch contact current is rated at 100mA, making it suitable for low power electronic switching applications.
The contact voltage rating is 30V DC, which is appropriate for many electronic circuits.
This switch has a mechanical life expectancy of 10,000 operations, ensuring a long service life for its intended applications.
The overall dimensions are 8.6mm in length, 8.7mm in width, and 8.7mm in depth, allowing for compact integration into PCB layouts.
It is designed for PCB mounting and comes with solder terminals for secure connections.
The operating temperature range extends from -20°C to 85°C, suitable for various industrial and commercial environments.
The actuator is made of silver plated over nickel on copper alloy, which enhances conductivity and resists corrosion.
Yes, it is RoHS compliant, ensuring it meets environmental safety and international manufacturing standards.
It supports applications in electronics, electrical automation, instrumentation, and control systems, particularly in PCB-level circuit control.
This model operates with a latching mechanism, providing a tactile feel for reliable operation in various systems.
It belongs to the MFP Series by KNITTER-SWITCH, recognized for miniature slide switch solutions.
