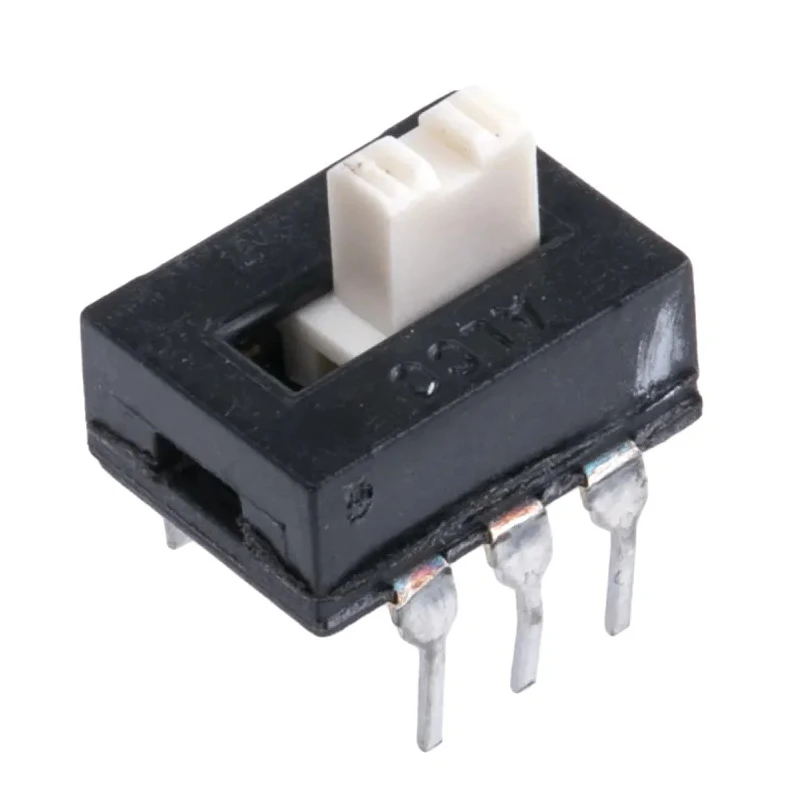

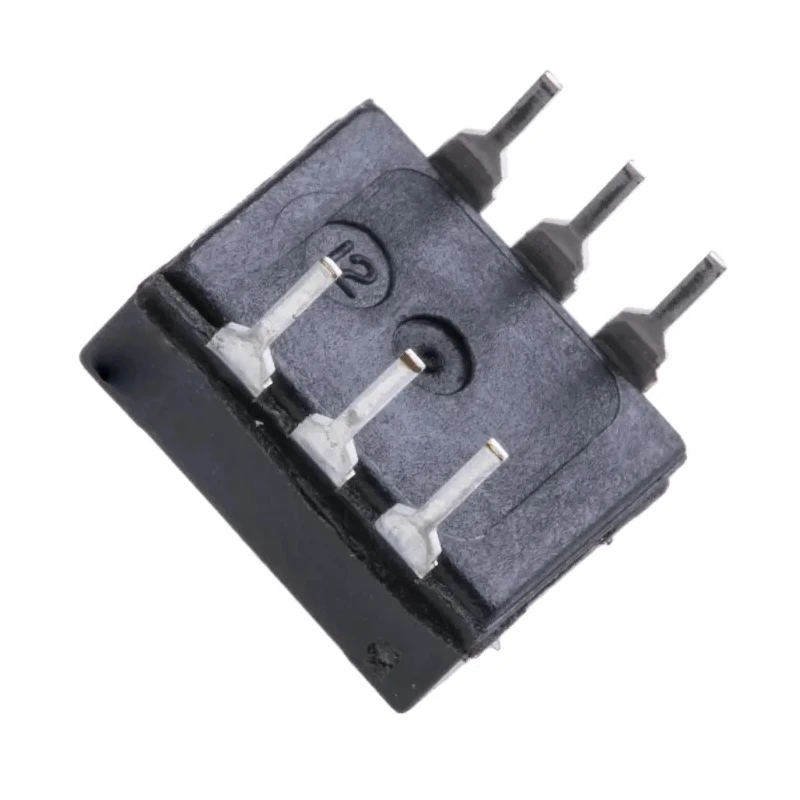

TE Connectivity Slide Slide Switch , DPDT, Through-hole, Gold/Silver Contacts, Operating Temperature -40°C to +80°C ASE2204
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature Range | -40°C +80°C, making them particularly suited to harsh environments |
| Model | ASE2204 |
| Actuator Type | Slide |
| Electrical Life | 10000 operations |
Key Features
- Operates reliably within a temperature range of -40°C to +80°C, suitable for harsh environmental conditions.
- Features make-before-break configuration ensuring no momentary connection interruptions.
- Electrical life rated for 10,000 operations for durability and long service life.
- Available with gold or silver plated contacts to meet telecom grade switching requirements.
- Contact rating of 0.4VA @ 20Vdc (gold) and 300mA @ 115Vac/28Vdc (silver) for versatile applications.
- Extended style actuator enables easy operation and positioning.
- Typical applications include instrumentation, test and measurement equipment, and telecommunications.
Product Description
TE Connectivity ASE2204 Slide Switch is a professional-grade, through-hole PCB mount slide switch with bifurcated double wipe contacts, engineered for telecommunications grade switching and industrial applications.
Designed for robust performance, the ASE and ASF series include vertical mounting with natural coloured actuators, and this ASE2204 model features an extended style actuator for easy manual operation.
The slide switch operates reliably within a wide temperature range of -40°C to +80°C, making it suitable for harsh and demanding environments such as instrumentation, test and measurement programs, and electronic equipment.
The ASE2204 switch is offered with gold or silver plated contacts, providing contact ratings of 0.4VA at 20Vdc for gold and 300mA at 115Vac/28Vdc for silver, ensuring versatile and reliable electrical performance.
This model features a make-before-break configuration to prevent momentary connection breaks during channel switching, and is rated for an electrical life of 10,000 operations, assuring long-term durability.
Designed for harsh environmental conditions with a broad operating temperature range. Durable with an electrical life of 10,000 operations for extended use. Gold/silver plated contacts meet telecom and industrial requirements.
Make-before-break switching ensures seamless circuit transitions. Suitable for instrumentation, telecommunications, computer servers, and test equipment. Through-hole PCB mounting facilitates secure and reliable integration.
Extended style actuator for ergonomic operation and precise switching. This Slide Switch is widely used in industrial, laboratory, telecommunications, and manufacturing systems, facilitating control and signal selection on printed circuit boards.
Explore EnvMart’s extensive Switches & Sockets category for compatible components and reliable electrical solutions to enhance your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ASE2204 slide switch operates reliably within a temperature range of -40°C to +80°C, making it suitable for harsh environmental conditions.
This model is rated for an electrical life of 10,000 operations, ensuring long-term durability and performance.
The ASE2204 is available with gold or silver plated contacts, providing different contact ratings for versatile applications.
The gold contacts have a rating of 0.4VA at 20Vdc, while the silver contacts are rated for 300mA at 115Vac/28Vdc.
It features a make-before-break configuration, which prevents momentary connection interruptions during channel switching.
The actuator type for the ASE2204 is a slide actuator, designed for ergonomic operation and precise switching.
This model is designed for through-hole PCB mounting, facilitating secure and reliable integration into electronic systems.
This slide switch is suitable for applications in instrumentation, test and measurement equipment, and telecommunications.
The extended style actuator allows for easy manual operation and positioning of the switch, enhancing user experience.
The country of origin for the ASE2204 slide switch is India.
The primary use of this slide switch is to facilitate control and signal selection on printed circuit boards in various industrial and laboratory systems.
Its wide operating temperature range of -40°C to +80°C and robust design make the ASE2204 suitable for harsh environmental conditions.
