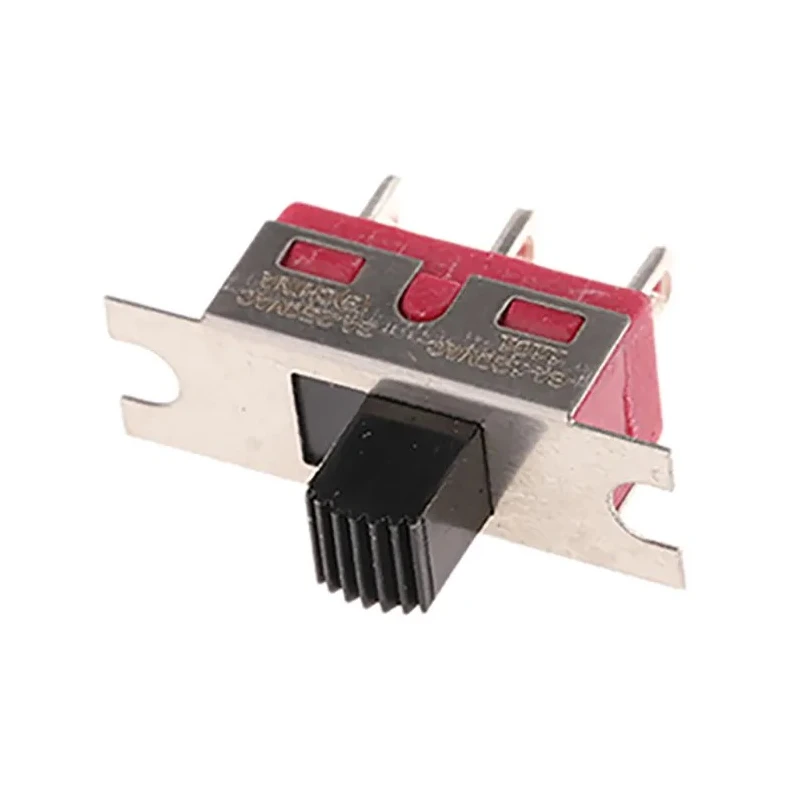

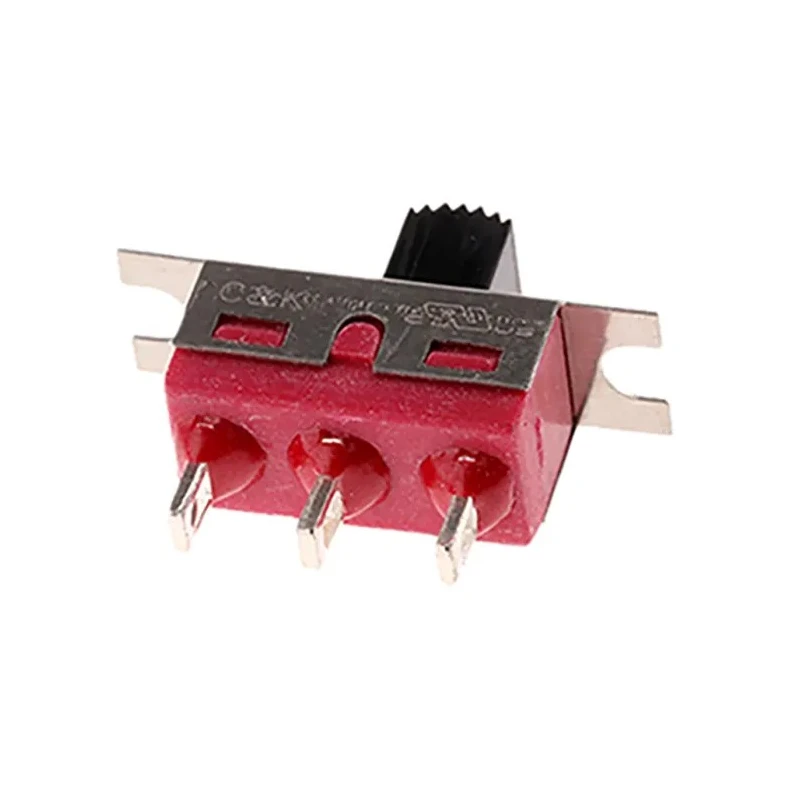

C & K Panel Slide Switch SPDT Latching 6A Nylon 1101M1S3ZQE2
Specifications
| Country of Origin | India |
|---|---|
| Brand | C & K |
| Operating Temperature Range | -30 to +65°C |
| Length | 19.56mm |
| Model | 1101M1S3ZQE2 |
| Depth | 15.37mm |
| Width | 6.1mm |
| Mount Type | Panel |
| Series | 1000 |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-None-On |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder |
| Standards/Approvals | UL, CSA |
| Switch Operation | Latching |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 6A |
| Mechanical Life | 40000Cycles |
| Contact AC Voltage | 250V ac |
| Actuator Material | Nylon |
| C & K Panel Slide Switch DPDT Latching 6A NylonBrand | C & K |
Key Features
- This SPDT switch features latching operation for stable circuit control.
- It supports a switch contact current of 6A suitable for medium load circuits.
- Constructed with a durable nylon actuator and diallyl phthalate case.
- Panel mount type with solder terminal connections for easy installation.
- Operates safely within -30°C to 65°C environmental temperature range.
- Compact dimensions of 19.56mm length, 6.1mm width, and 15.37mm depth.
- Switch configuration is On-None-On enabling versatile use cases.
- Mechanical life rated for 40000 cycles ensuring long-term durability.
Product Description
C & K 1101M1S3ZQE2 Panel Slide Switch SPDT Latching 6A Nylon is a precision-engineered slide switch designed for electrical, automation, and control circuits demanding reliable switching performance.
Featuring a Single Pole Double Throw (SPDT) contact configuration and latching operation, this switch ensures stable circuit connection without the need for continuous pressure. The contact rating of 6A makes it suitable for moderate load switching up to 28V DC or 250V AC, with On-None-On switching positions providing flexibility in circuit design.
It is constructed with a rugged nylon actuator and a diallyl phthalate case rated UL 94V-0 for high flame resistance. The epoxy-sealed terminals allow bottom wash cleaning, making it ideal for sensitive electronic assemblies.
This panel mount slide switch has solder terminal types for secure connectivity and compact dimensions (19.56mm length x 6.1mm width x 15.37mm depth) suitable for dense control panels. It operates reliably in harsh environments with an operating temperature range from -30°C to 65°C and a mechanical life expectancy of 40000 cycles, ensuring durable performance in demanding industrial use cases.
Industry applications include telecommunications equipment, test and measurement devices, computer peripherals, and general electrical panel controls. This switch has a SPDT contact configuration with latching switch operation.
Rated for 6A contact current at 28V DC and 250V AC voltages. Panel mount type with solder terminals for easy integration. Nylon actuator and UL 94V-0 diallyl phthalate case for safety and durability. Mechanical life of 40000 cycles ensures long service.
Operates between -30°C and 65°C ambient temperatures. Compact size fits well into control panels and electronic equipment. Sealed terminals allow cleaning without damage.
This C & K Slide Switch model 1101M1S3ZQE2 epitomizes high-quality switch components necessary in industrial automation, laboratory instrumentation, and telecommunications hardware. Browse our Electronics & Electricals section for matching switches and control devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile circuit design and operation.
It has a switch contact current rating of 6A, making it suitable for moderate load circuits.
The switch is rated for a contact DC voltage of 28V and an AC voltage of 250V.
It operates reliably within a temperature range of -30°C to +65°C.
The compact dimensions of this switch are 19.56mm in length, 6.1mm in width, and 15.37mm in depth.
This switch is designed for panel mounting and features solder terminal connections for easy installation.
The mechanical life of this model is rated for 40,000 cycles, ensuring long-term usability in applications.
It is constructed with a nylon actuator and a diallyl phthalate case, which is rated UL 94V-0 for high flame resistance.
This model features a latching operation, allowing for stable circuit control without the need for continuous pressure.
The switch complies with UL and CSA standards, ensuring safety and reliability in its applications.
It is suitable for telecommunications equipment, test and measurement devices, computer peripherals, and general electrical panel controls.
The epoxy-sealed terminals allow for bottom wash cleaning, making it suitable for sensitive electronic assemblies.
