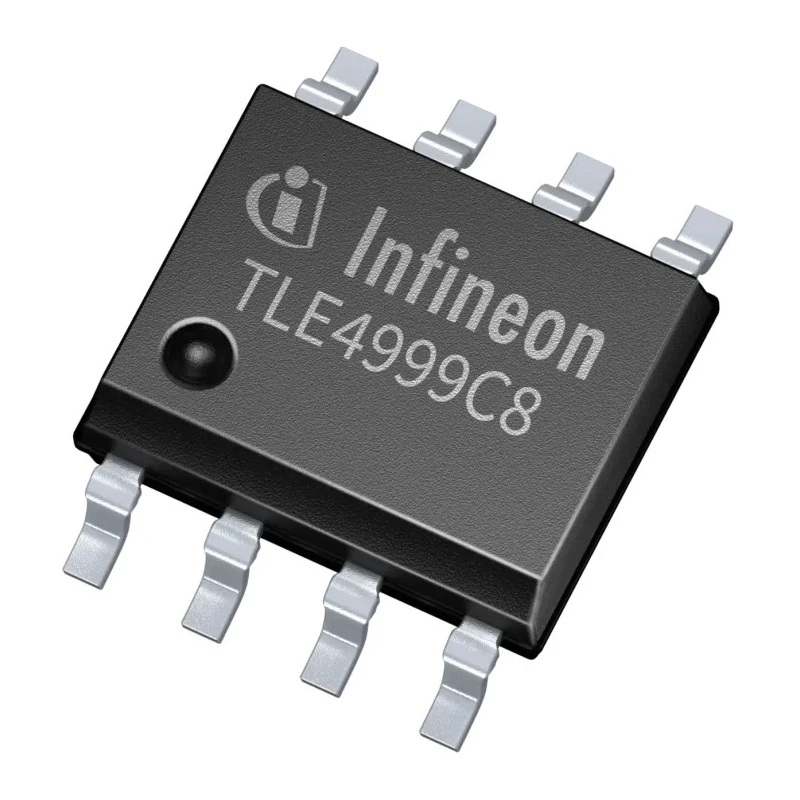

Infineon Surface Hall Effect Sensor Digital Technology 4.5 V to 5.5 V Supply, SPC Interface, TDSO 8-Pin TLE4999C8XUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 1.2mm |
| Length | 5.17mm |
| Model | TLE4999C8XUMA1 |
| Technology | Digital |
| Sensor Type | Hall Effect |
| Width | 4.02mm |
| Mount Type | Surface |
| Series | TLE4999 |
| Maximum Operating Temperature | 125°C |
| Package Type | TDSO |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPC |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Supply Current | 4mA |
Key Features
- Dual channel linear hall sensor with integrated bus-capable digital SPC interface.
- Measurement channels integrated on one chip for enhanced accuracy.
- Operates from 4.5 V to 5.5 V supply voltage.
- Wide operating temperature range of -40°C to 125°C.
- Digital temperature and stress compensation for reliability.
- Reverse-polarity and over-voltage protection on VDD, GND, and output pins.
- Main and sub channels independently programmable via EEPROM.
- Compact TDSO 8-pin package measuring 5.17 mm x 4.02 mm x 1.2 mm.
Product Description
Infineon TLE4999C8XUMA1 Surface Hall Effect Sensor is a dual channel linear hall sensor designed for precise magnetic field measurement with a bus-capable digital SPC interface. This sensor operates with a supply voltage range from 4.5 V to 5.5 V and comes housed in a compact TDSO 8-pin package, measuring 5.17 mm in length, 4.02 mm in width, and 1.2 mm in height.
Engineered to meet stringent automotive standards (AEC-Q100), it performs reliably across a wide temperature spectrum from -40°C to 125°C, making it ideal for integration into automotive electronics and other demanding industrial and commercial systems.
The sensor features integrated dual measurement channels on a single chip, enabling effective plausibility checks and high diagnostic coverage at the system level, thereby increasing reliability and fault detection capacity.
Advanced features include digital temperature and stress compensation to maintain accuracy under varied operating conditions. Protection mechanisms against reverse polarity and over-voltage on all major pins (VDD, GND, and output) safeguard the sensor and connected circuitry from damage.
Both main and sub channels are independently programmable via EEPROM, allowing customization to specific application requirements. The device communicates using a digital SPC interface, supporting seamless bus connectivity for efficient data transfer.
Dual channel linear hall sensor with bus-capable digital SPC interface. Operating supply voltage range: 4.5 V to 5.5 V. Automotive standard compliant: AEC-Q100. Operating temperature from -40°C to 125°C. Reverse polarity and over-voltage protection on VDD, GND, and OUT pins.
EEPROM programmable main and sub channels. Compact TDSO 8-pin package (5.17 mm x 4.02 mm x 1.2 mm). Low supply current of 4 mA for efficient power usage.
This sensor is widely suited for automotive, industrial machinery, robotics, and other applications requiring robust, precise magnetic sensing and monitoring. With its advanced diagnostics, protective features, and programmability, the TLE4999C8XUMA1 enables enhanced system reliability and performance.
Discover more sensors and related components within the Electronics & Electricals category at EnvMart for your industrial and engineering projects.
Explore more products in our Hall Effect Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range from 4.5 V to 5.5 V.
It has an operating temperature range from -40°C to 125°C.
This sensor features a bus-capable digital SPC interface for communication.
The sensor is housed in a compact TDSO 8-pin package measuring 5.17 mm in length, 4.02 mm in width, and 1.2 mm in height.
It features dual measurement channels integrated on a single chip for enhanced accuracy.
It includes reverse polarity and over-voltage protection on VDD, GND, and output pins to safeguard against damage.
The supply current is 4 mA, making it efficient for power usage.
Yes, it is compliant with the AEC-Q100 automotive standard.
Both main and sub channels are independently programmable via EEPROM, allowing customization for specific applications.
This model is a Hall Effect sensor designed for precise magnetic field measurement.
It utilizes a surface mount type, suitable for compact applications.
The country of origin for this sensor is India.
