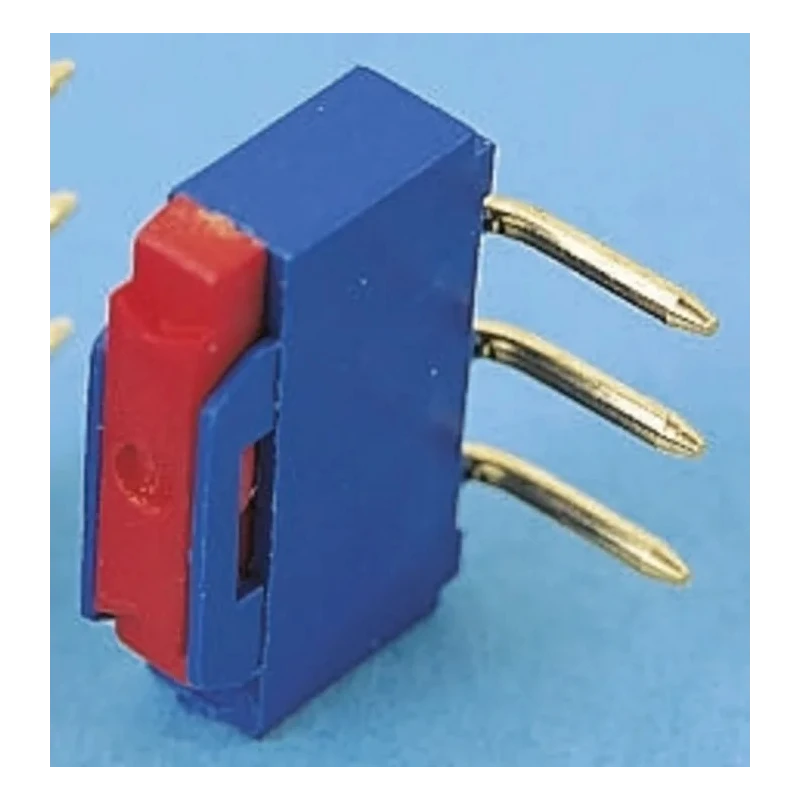

APEM PCB Slide Switch SPDT Latching 12V DC 500A Fibreglass Reinforced Polyamide NK236W
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Length | 10mm |
| Model | NK236W |
| Depth | 6.5mm |
| Width | 2.6mm |
| Mount Type | PCB |
| Series | NK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-None-On |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Standards/Approvals | IEC, UL |
| Switch Operation | Latching |
| Contact DC Voltage | 12V dc |
| Switch Contact Current | 500A |
| Mechanical Life | 2000Cycles |
| Actuator Material | Fibreglass Reinforced Polyamide |
| APEM PCB Slide Switch SPDT Latching 500mA Fibreglass Reinforced PolyamideBrand | APEM |
Key Features
- The switch features a fibreglass reinforced polyamide actuator for durability.

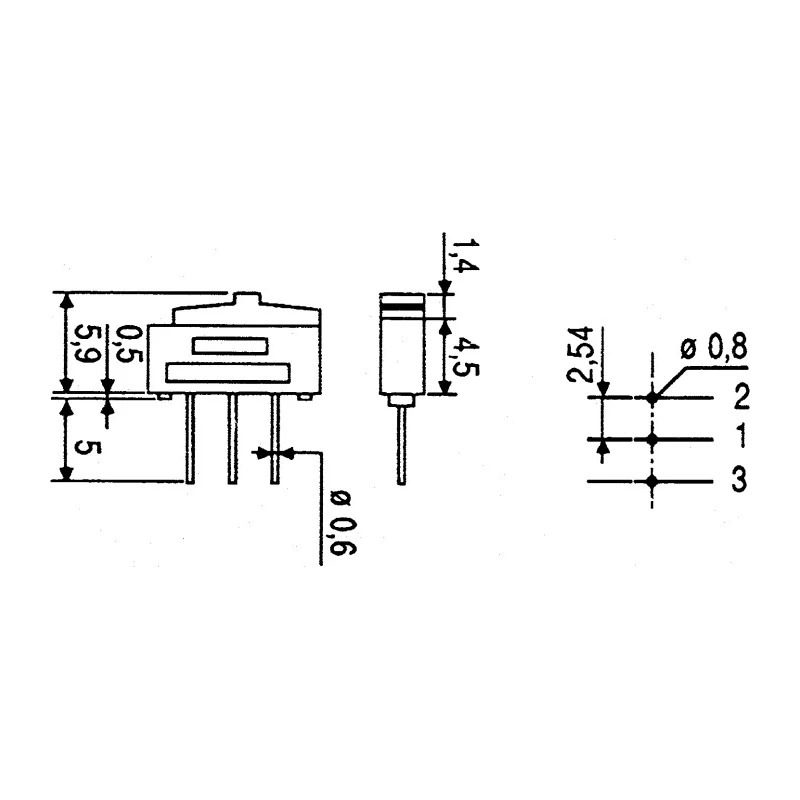

- It has a compact size with dimensions 10mm length, 6.5mm depth, and 2.6mm width.
- The switch operates with an On-None-On configuration and a mechanical life of 2000 cycles.
- Contacts are gold plated and the switch has through-hole terminal type for reliable PCB connection.
- Designed to meet IEC and UL standards for safety and quality.
- Operates reliably in temperature ranges from -40°C to 85°C.
- This flush actuator series NK236 switch is ideal for replacing pin and jumper switches.
- Manufactured in France ensuring high build quality and precision.
Product Description
APEM NK236W PCB Slide Switch is a miniature single-pole slide switch featuring a flush actuator made from fibreglass reinforced polyamide. This latching switch is engineered for use on printed circuit boards with a PCB mounting pitch of 2.54mm, making it suitable for compact electronic assemblies.
Designed with an SPDT contact configuration, the switch is capable of handling a high contact current of 500A at 12V DC. The terminal type is through-hole, providing secure and stable connections for PCB integration. Gold plated contacts ensure excellent conductivity and corrosion resistance, which improves the contact reliability over a long mechanical life of 2000 cycles.
The switch has an On-None-On configuration, allowing flexible usage scenarios in electronic and electrical applications. Its compact measurements - 10mm length, 6.5mm depth, and 2.6mm width - make it an ideal component in space-constrained designs.
Certified to IEC and UL standards, this slide switch guarantees compliance with recognized safety and performance requirements. It operates efficiently in temperatures ranging from -40°C to 85°C, making it suitable for a wide variety of industrial, laboratory, automation, and general electronic manufacturing environments.
The NK236 series includes flush actuators that enable a smooth operation and ergonomic design, providing excellent tactile feedback. Its robust build ensures it is ideal for replacing pin and jumper switches in PCB assemblies where reliability and precision are essential.
The switch has fibreglass reinforced polyamide actuator for enhanced mechanical strength. Gold plated contacts improve connectivity and reduce electrical resistance. Through-hole terminal mounting enables straightforward PCB integration.
Compact and space-saving form factor with precise dimensions. Suitable for use in electrical, automation, and electronics manufacturing industries.
Manufactured in France with strict quality control, the APEM NK236W delivers reliable performance for demanding applications. It is a trusted choice for engineers requiring a durable and precise PCB slide switch.
Explore more products in the Slide Switch category on EnvMart for reliable, industrial-grade electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a single-pole double-throw (SPDT) contact configuration, allowing for versatile switching applications.
This model can operate at a maximum temperature of 85°C, making it suitable for various industrial applications.
The mechanical life of the NK236W is rated for 2000 cycles, ensuring reliable performance over time.
The switch has compact dimensions of 10mm in length, 6.5mm in depth, and 2.6mm in width, making it ideal for space-constrained designs.
It features a through-hole terminal type, which allows for secure and stable connections on printed circuit boards.
This model operates with a latching configuration, specifically in an On-None-On setup, providing flexible usage scenarios.
The NK236W is capable of handling a contact current of 500A at 12V DC, suitable for various electronic applications.
Yes, the switch is designed to meet IEC and UL standards, ensuring compliance with recognized safety and performance requirements.
The actuator is made from fibreglass reinforced polyamide, which enhances its mechanical strength and durability.
The NK236W can operate at a minimum temperature of -40°C, making it suitable for a wide range of environments.
This switch is manufactured in France, ensuring a high level of build quality and precision.
The NK236W is suitable for use in electrical, automation, and electronics manufacturing industries, particularly in applications requiring compact components.
