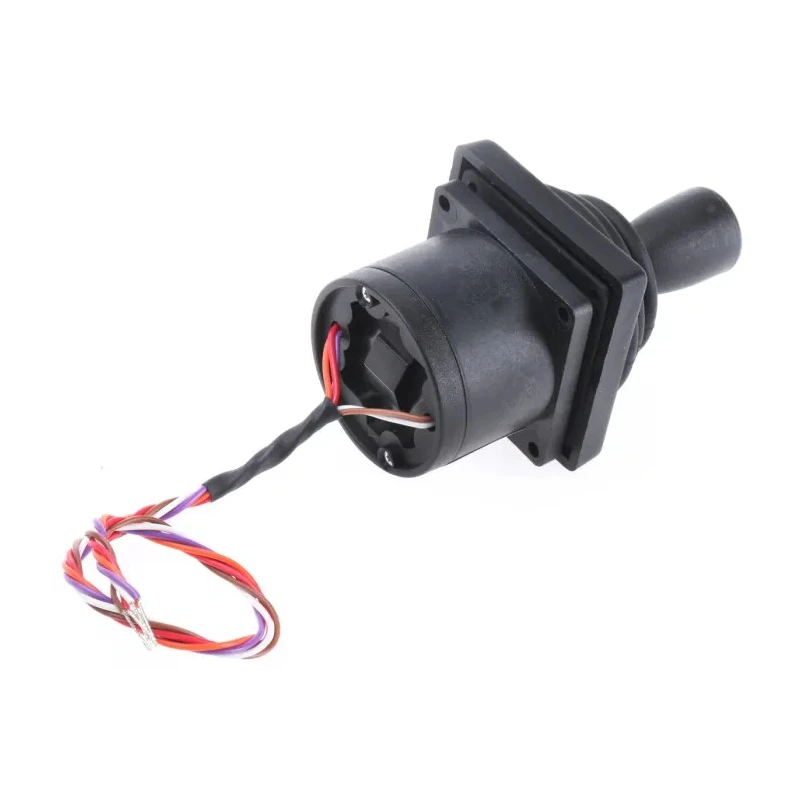

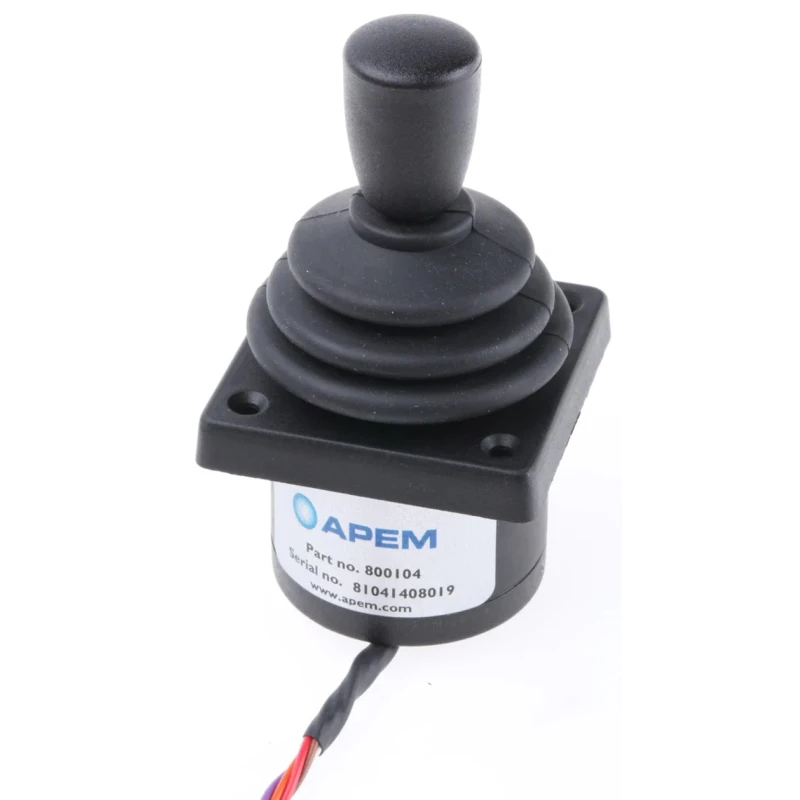

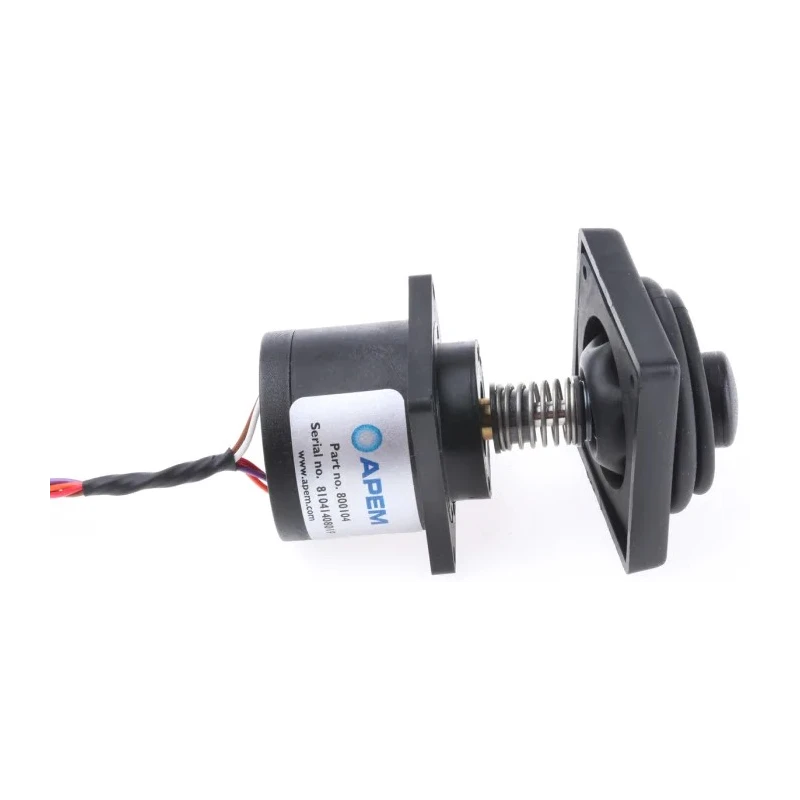

APEM 1-Axis Joystick Conical Progressive Switch IP65, 125 V AC, 1A

APEM 8AC2AE6549 1-Axis Joystick is a conical progressive switch with IP65 ingress protection, rated for 125 V AC and 1A contact current. It provides precise and reliable single-axis input control suitable for industrial machinery and vehicle applications such as crane and vehicle controls.

This joystick offers a ±18° travel range along one axis, restricting sideways movement with a straight limiter for focused directional control. The conical nylon handle, finished in a sparked matt black texture, ensures a secure ergonomic grip for operators.

The robust design includes a stainless steel 5 mm shaft and neoprene sealing gaiter to protect internal mechanisms from dust and moisture, which supports long mechanical life of up to 1,000,000 operations.

Gold-plated contacts enhance electrical reliability and switch longevity while the joystick is sprung to centre, providing intuitive return to neutral position. The progressive switch technology with detents facilitates smooth, stepped input for accurate speed or position control in automation.

Operating temperature range from -25°C to 80°C enables use in diverse environmental conditions. The joystick is supplied with a 150 mm cable harness and installation instructions, easing integration into control panels.

Typical industrial applications include vehicle control systems, crane operation panels, and other machinery requiring precise directional input. The IP65 rating confirms its suitability for heavy-duty industrial environments.

This joystick operates on a single axis allowing forward and reverse movement. The conical handle offers a comfortable and secure grip for accurate operation. It features progressive switching technology with detents for dual speed control.

The joystick has an IP65 protection rating making it suitable for harsh industrial environments. The joystick shaft is stainless steel with a neoprene sealing gaiter for durability. It includes 150 mm cable harness for easy installation.

Mechanical life expectancy is rated at 1,000,000 operations ensuring long-term reliability. The contact material is gold plated for improved conductivity and corrosion resistance. Operating temperature range is from -25°C to 80°C for wide environmental tolerance.
