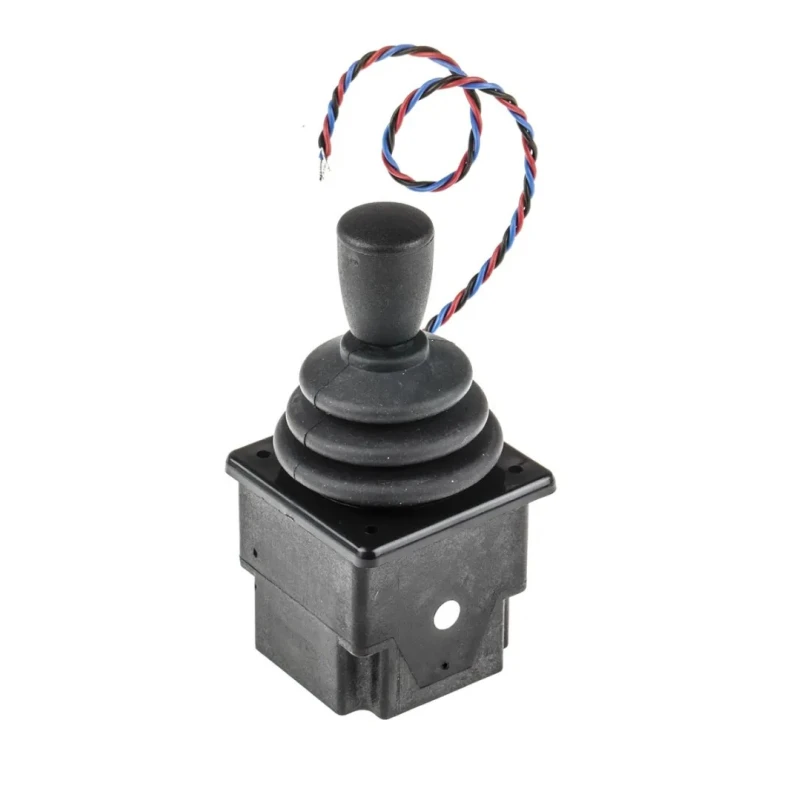

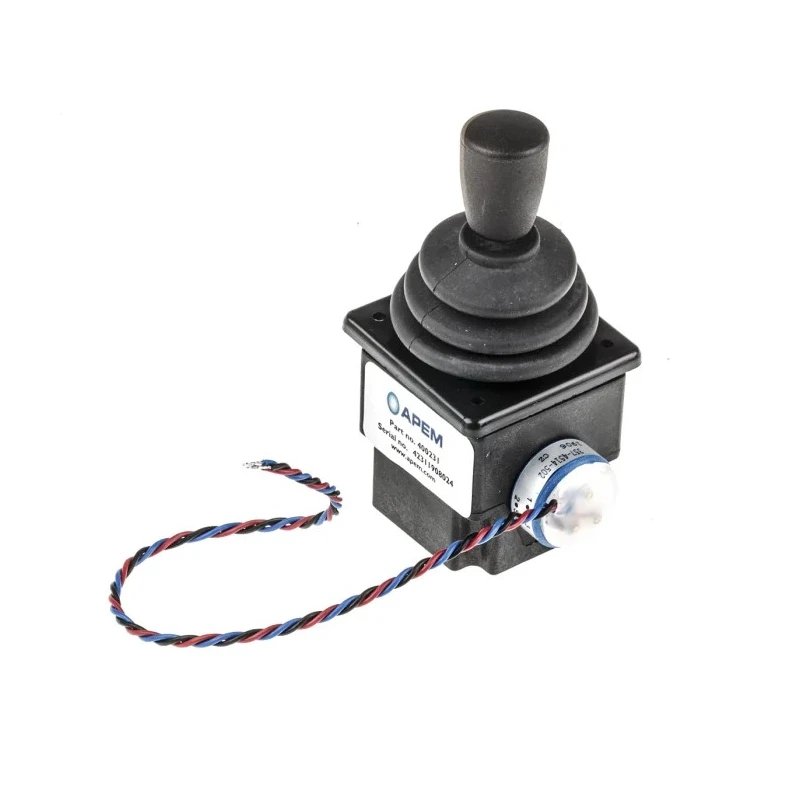

APEM 1-Axis Potentiometer Joystick Knob Potentiometric IP65 with ±27.5° Travel
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | APEM |
| Model | IP65 |
| IP Rating | IP65 |
| Handle Type | Knob |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Flying Lead |
| Number of Axes | 1 |
| Standards/Approvals | RoHS |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Mechanical Life | 5000000Operations |
| Switch Technology | Potentiometric |
| Joystick Travel | ±27.5° |
Key Features
- Equipped with a robust metal knob handle for reliable industrial use.
- Flying lead terminal type for easy electrical connection and integration.
- Mechanical life rated at 5,000,000 operations ensuring long durability.
- Operating temperature range from -20°C to +55°C suits diverse environments.
- Stainless steel lever material for superior strength and corrosion resistance.

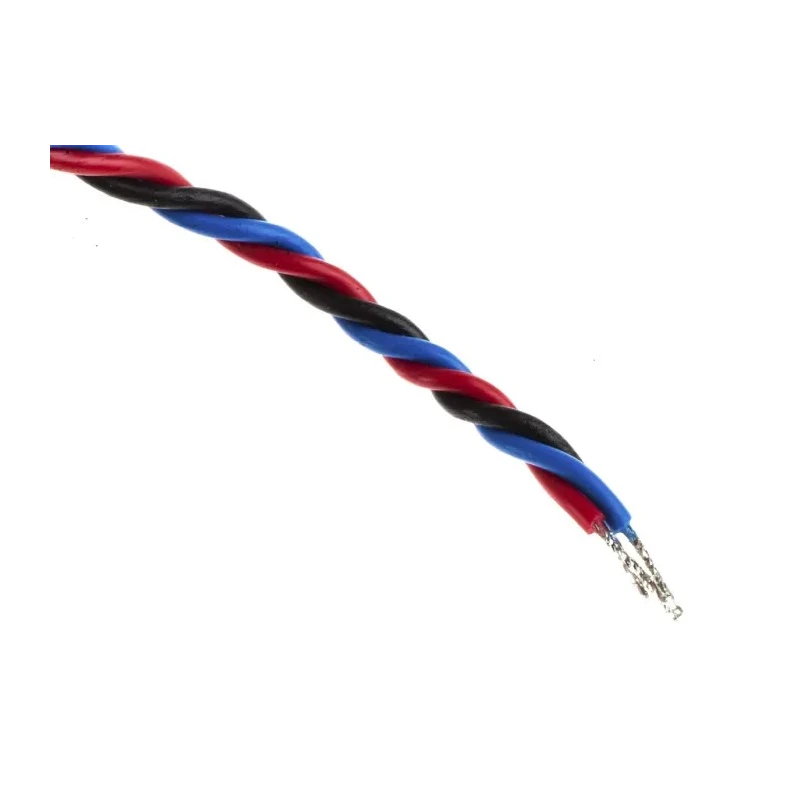

- Pre-wired with 200mm leads enabling fast installation.
- Joystick with total potentiometer track angle of 55° and ±27.5° shaft throw for precise control.
Product Description
APEM 4R18-2S1E-35-49 1-Axis Potentiometer Joystick Knob Potentiometric IP65 offers precise and reliable control suited for industrial automation and electrical systems applications. It features a robust all-metal mechanism with a full-range 5 kohm potentiometer, designed to withstand harsh conditions with IP65 ingress protection rating.
The joystick knob uses potentiometric switch technology with a stainless steel lever, enabling a total shaft throw of ±27.5°. The terminal type is flying lead with 200mm pre-wired leads for straightforward integration. Mechanical life of the switch is rated at five million operations, supporting long-term durability in industrial environments.
This joystick knob operates within a temperature range of -20°C to +55°C, making it suitable for numerous automation, manufacturing, and control system usage scenarios. It meets RoHS directives and complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, ensuring quality and safety compliance.
Typical industrial applications include electrical control panels, machinery operation interfaces, and other automation systems where precise axis control is required. The IP65 rating ensures protection against dust and low-pressure water jets, making it appropriate for moderately harsh environments.
Robust metal knob handle for industrial robustness. Full range 5 kΩ potentiometer for precise control. ±27.5° joystick travel and total track angle of 55°. Pre-wired flying leads with 200mm length for easy integration. Mechanical life expectancy of 5,000,000 operations.
IP65 rated for protection against dust and water jets. Compliance with RoHS and industrial safety standards.
This potentiometer joystick knob is ideal for electrical, industrial automation, and manufacturing equipment requiring reliable and accurate one-axis control solutions. The IP65 protection and high mechanical lifetime make it suitable for demanding operational environments.
Explore additional industrial components and Joysticks at EnvMart for enhancing your automation system projects with quality solutions.
