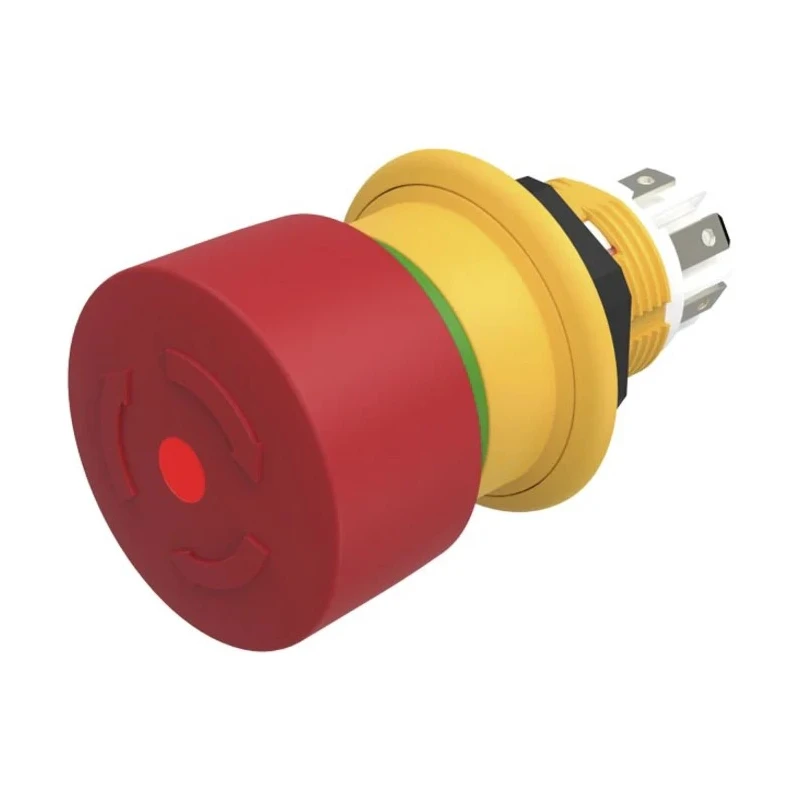

EAO 61 Compact Series Twist Release Illuminated Emergency Stop Push Button Panel Mount 16mm Cutout 2 NC IP67 61-6451.4257



Category Emergency Stop Push Button Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Colour	Red
IP Rating	IP67, IP69K
Mount Type	Panel Mount
Series	61 Compact
Contact Configuration	2 NC
Head Style	Mushroom
Head Diameter	27mm
Terminal type	Solder
Cutout Diameter	16mm
Push Button Actuation	Twist Release
Push Button Material	Plastic

Key Features

Features a 16 mm mounting cutout for panel integration.
Equipped with 2 normally closed (2 NC) contacts for effective safety circuit breaking.
Illuminated mushroom head with 27 mm diameter for easy identification and operation.
Rated to IP67 and IP69K for front panel protection against dust, water, and jet washing.
Constructed with durable plastic push button material ensuring long service life.
Complies with standards DIN EN ISO 13850, EN 60204-1, EN IEC 60947-5-5 for emergency stop switches.
Designed for demanding environments with operating temperature range -25°C to +55°C.
Swiss origin ensuring high-quality manufacturing standards.

Product Description

EAO 61-6451.4257 is a Compact Series Twist Release Illuminated Emergency Stop Push Button designed for panel mounting with a 16 mm cutout diameter. This emergency stop switch is engineered for robust industrial applications requiring swift shutdown capabilities in machinery, process engineering, control engineering, and public transportation systems. It features a 27 mm diameter illuminated mushroom head that provides a clear visual signal during emergency situations.

The device has 2 normally closed (2 NC) contacts providing reliable circuit interruption. It offers IP67 and IP69K protection ratings ensuring it is waterproof, dust tight, and resistant to harsh jet washing, suitable for environments with high temperature variations and mechanical demands.

Constructed with plastic push button material and solder-type terminals, this emergency stop switch conforms to international safety and quality standards such as DIN EN ISO 13850, EN 60204-1, and EN IEC 60947-5-5. The unit has a short back panel depth of 21.2 mm and a low front panel height of 27.5 mm, enabling compact installation and flexible integration into control panels.

Typical use cases include machinery safety systems, laboratory instruments, HVAC systems, and process control in industrial environments. The switch includes foolproof trigger action with red release arrow markings and gold plated contacts rated for a maximum voltage of 50 V, enhancing operational reliability under demanding conditions.

The product is manufactured in Switzerland and comes with CE certification and compliance with EN 60947-1, EN 60947-5-5, and EN ISO 13850 standards. The EAO 61 Compact Series is well-regarded for its modular design, enabling easy mounting and a wide range of switching elements.

Features a 16 mm mounting cutout diameter for panel installation. Includes 2 normally closed (2 NC) contacts for safety circuit integrity. Illuminated, red mushroom head with 27 mm diameter for clear emergency signaling.

IP67 and IP69K front sealing for harsh environmental protection. Plastic push button material with a robust mechanical design. Compliant with key international safety standards (DIN EN ISO 13850, EN 60204-1, EN IEC 60947-5-5).

Designed for high temperature variability and demanding industrial conditions. Gold contacts supporting reliable contact and electrical performance. Compact size with low panel depth facilitates integration into control systems.
