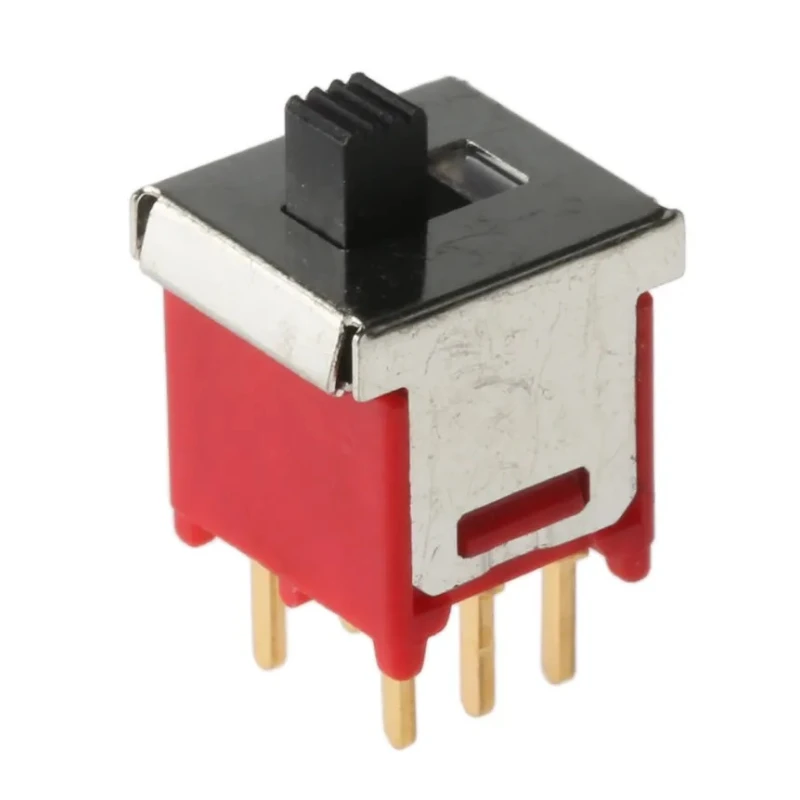

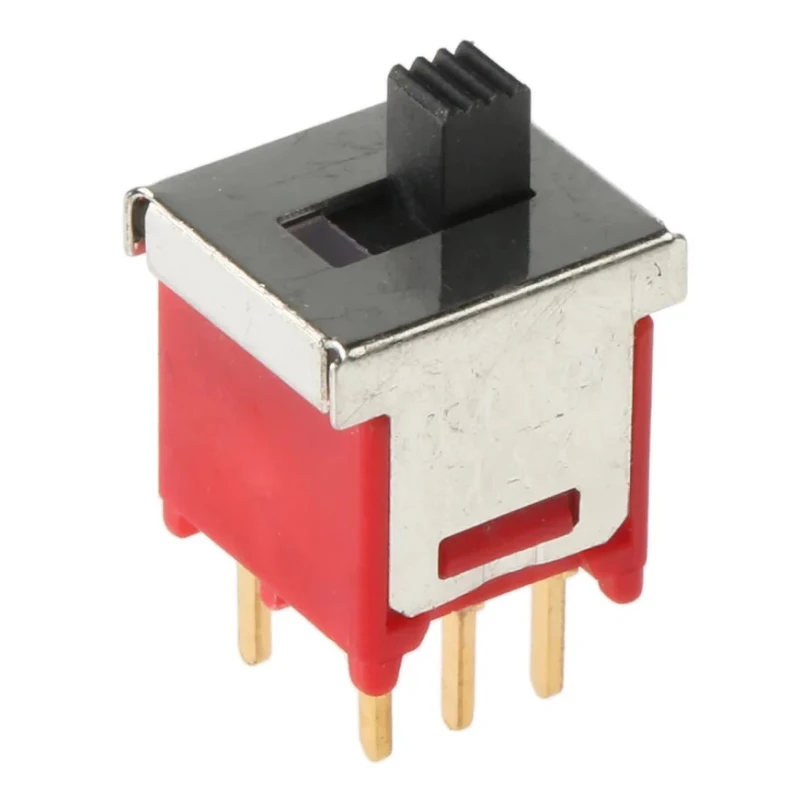

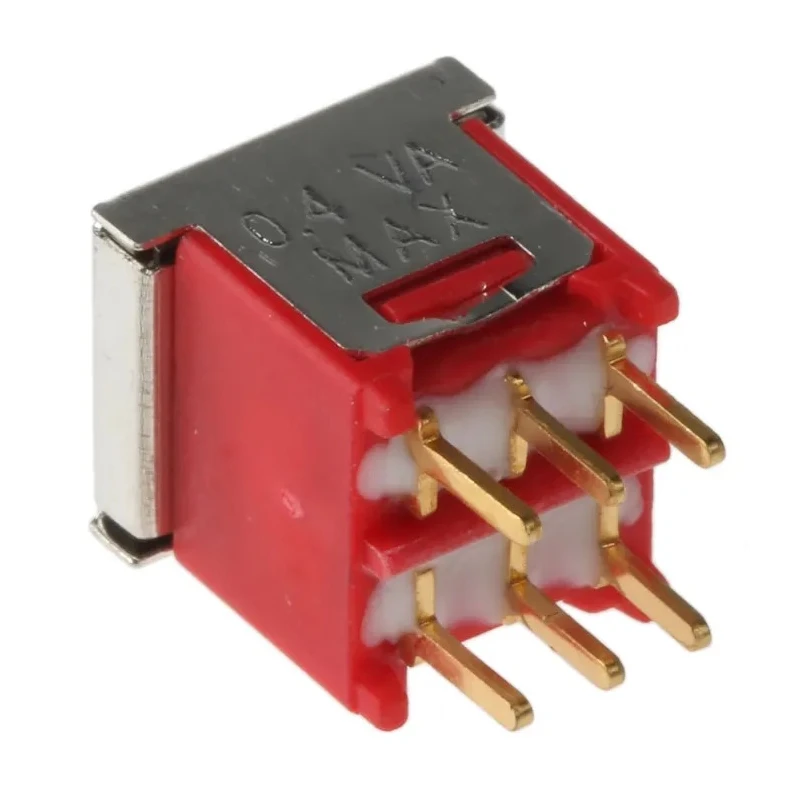

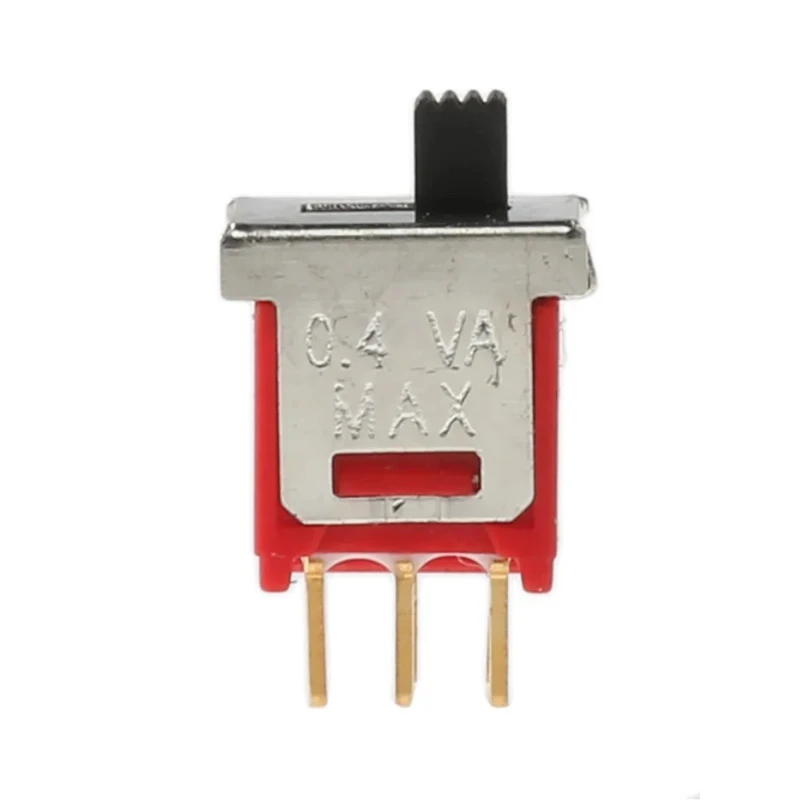

RS PRO PCB Slide Switch Double Pole Double Throw (DPDT) Latching 400mA Nylon Actuator 429-509

Free Delivery in India | Lowest Global Shipping Charges

RS PRO PCB Slide Switch Double Pole Double Throw (DPDT) Latching 400mA Nylon Actuator 429-509

Name: RS PRO PCB Slide Switch Double Pole Double Throw (DPDT) Latching 400mA Nylon Actuator 429-509
Brand: RS PRO
SKU: 118232
Price: 14.6 USD
Availability: InStock



Category Slide Switch Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Length	10.16mm
Model	429-509
Depth	9.2mm
Width	9mm
Mount Type	PCB
Series	RS PRO
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Switch Configuration	On-None-On
Minimum Operating Temperature	-30°C
Terminal type	Solder
Standards/Approvals	RoHS, cULus
Switch Operation	Latching
Contact DC Voltage	28V dc
Switch Contact Current	400mA
Mechanical Life	30000Operations
Contact AC Voltage	250V ac
Actuator Material	Nylon
DPDT vertical PCB mount slide switchBrand	Devlin

Key Features

The switch features a Double Pole Double Throw (DPDT) contact configuration.
It supports a contact current of 400 milliamperes at 20 volts.
Constructed with a durable nylon actuator providing insulation.
Gold-plated contacts ensure resistance to oxidation and corrosion.
Operating temperature range from -30°C to +85°C for diverse applications.
Mechanical life expectancy of 30,000 operations.
Compact dimensions of 10.16 mm length, 9 mm width, and 9.2 mm depth.
Designed for PCB mounting with through-hole solder terminal type.

Product Description

RS PRO 429-509 PCB Slide Switch is a high-quality Double Pole Double Throw (DPDT) latching switch designed for printed circuit board (PCB) mounting. It features a nylon actuator material that provides excellent insulation against short circuits, enhancing safety in electrical systems.

The switch supports a contact current rating of 400mA at 20V, suitable for low-power signal switching applications. Gold-plated contacts offer superior resistance against oxidation and corrosion, ensuring longevity and reliable electrical connections.

With dimensions of 10.16 mm length, 9 mm width, and 9.2 mm depth, the compact form factor allows easy integration into various electronic assemblies. The device operates reliably over a temperature range from -30°C to +85°C, making it suitable for diverse industrial, commercial, and laboratory environments.

The mechanical durability provides up to 30,000 operations, supporting long-term usage. It features solder-type through-hole terminals for secure PCB attachment and latching operation for stable switch positioning. The switch has a contact configuration of On-None-On and is rated for DC voltage up to 28V and AC voltage up to 250V, facilitating versatile applications in control, automation, and signal circuits.

The switch includes a nylon actuator for insulation and durability. Double Pole Double Throw (DPDT) contact configuration enables multiple circuit control. 400mA contact current rating supports moderate load switching. Gold-plated contacts resist oxidation and maintain reliable performance.

Compact dimensions allow space-efficient PCB design integration. Wide operation temperature range ensures functional versatility. Long mechanical life ensures durable performance in repetitive switching tasks. Solder terminal type allows through-hole PCB mounting.

On-None-On latching switch operation ensures stable positioning. Rated for 28V DC and 250V AC contact voltage for diverse applications.

This RS PRO PCB Slide Switch is perfect for industrial automation, electrical control systems, instrumentation, and various applications requiring dependable low current switching on PCBs. Its robust design and quality materials deliver long-lasting, safe operation.

Explore more high-quality switches and related industrial electrical components at EnvMart for your project and production needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a Double Pole Double Throw (DPDT) contact configuration, allowing for multiple circuit control.

The maximum operating temperature for this switch is 85°C, making it suitable for a variety of applications.

It has a mechanical life expectancy of 30,000 operations, supporting long-term usage in applications.

The dimensions of this switch are 10.16 mm in length, 9 mm in width, and 9.2 mm in depth, allowing for compact integration into PCB designs.

This unit features solder-type through-hole terminals for secure PCB attachment, facilitating easy installation.

The switch supports a contact current rating of 400 mA, suitable for low-power signal switching applications.

The minimum operating temperature for this switch is -30°C, allowing it to function in a wide range of environments.

Yes, it is rated for a contact DC voltage of 28V and an AC voltage of 250V, making it versatile for different applications.

The actuator is constructed from nylon, providing insulation and durability for the switch's operation.

This model complies with RoHS and cULus standards, ensuring it meets specific safety and environmental regulations.

The switch operates in a latching configuration, specifically designed as On-None-On, ensuring stable positioning during use.

This switch is suitable for applications in industrial automation, electrical control systems, and instrumentation requiring low current switching on PCBs.
