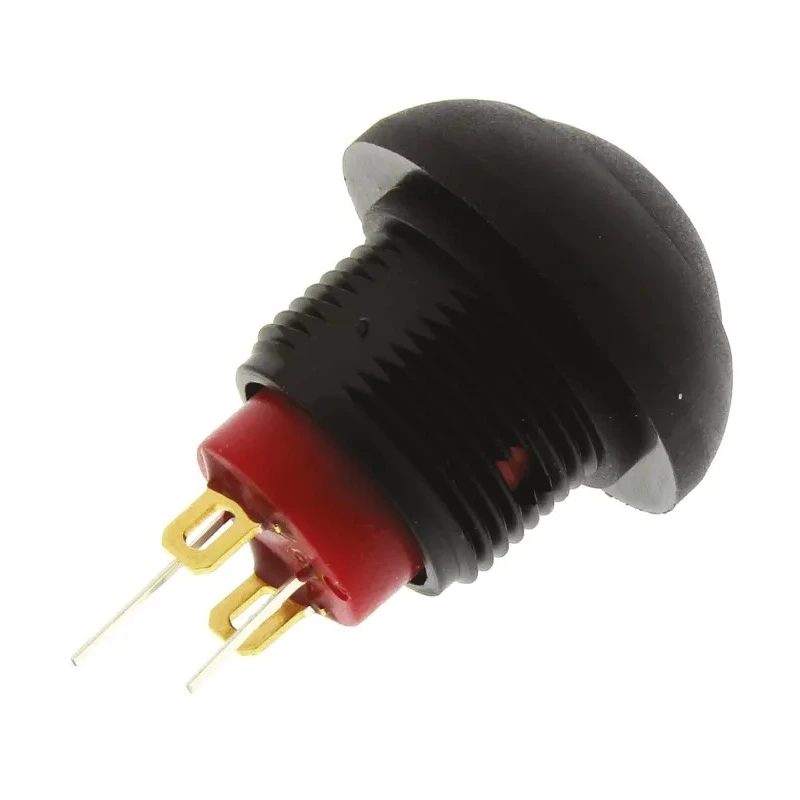

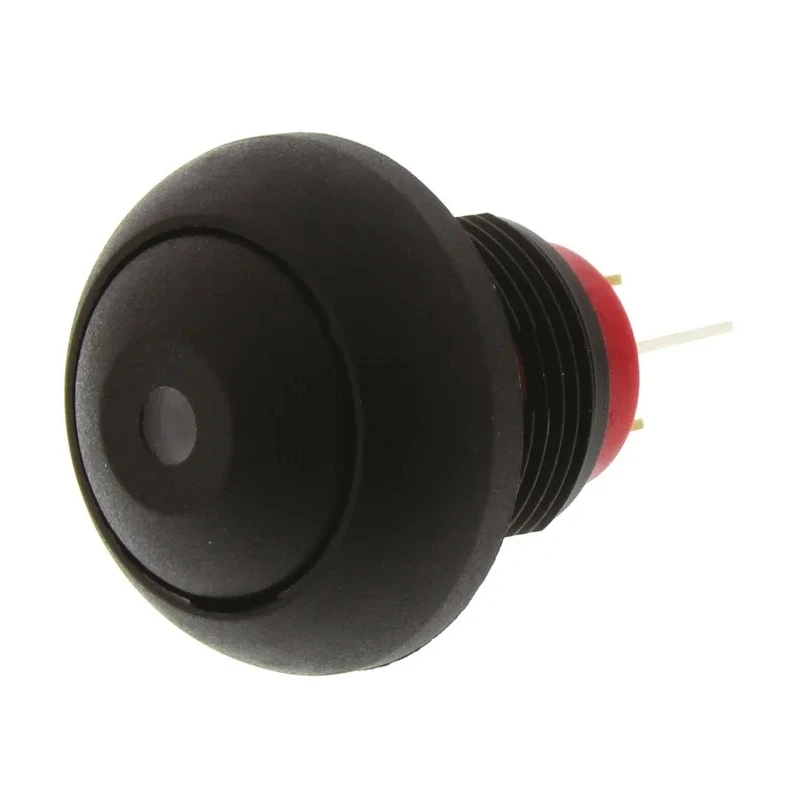

KNITTER-SWITCH DPWL Series Illuminated Miniature Push Button Switch Momentary Panel 12.9 mm Cutout SPST Yellow LED DPWL1CGKY
Specifications
| Country of Origin | China |
|---|---|
| Brand | KNITTER-SWITCH |
| Model | DPWL1CGKY |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | DPWL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | On-Off |
| Panel Cutout Size | 12.9 mm |
| Terminal type | Solder |
| Standards/Approvals | CSA, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 702-3574Brand: KNITTER-SWITCHManufacturers Part No.: DPWL1CGKY |
| LED Colour | Yellow |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Actuator Style | Button |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 250V ac |
Key Features
- The switch features a black actuator with a button style actuator.
- It has a single pole single throw (SPST) contact configuration suitable for on-off switching.
- This miniature sealed pushbutton switch offers IP67 waterproof rating.
- Designed to handle an AC voltage of up to 250V and a contact current of 400mA.
- The switch has a maximum operating temperature of 85°C for reliable performance.
- Constructed with a thermoplastic case, providing durability and long mechanical life of at least 1,000,000 cycles.
- LED requires an external current limiting resistor typically 1,200 Ohms 0.5W for proper 20mA current.
- The switch meets CSA and UL standards for safety and quality.
Product Description
KNITTER-SWITCH DPWL1CGKY is an illuminated miniature push button switch designed for panel mounting with a 12.9 mm cutout, providing momentary switch operation with SPST contact configuration. It operates at an AC voltage of 250V and supports a contact current of 400mA. The switch features a yellow LED illumination and a black button actuator constructed with a durable thermoplastic case.
This switch is sealed to an IP67 rating making it waterproof and suitable for demanding applications in electrical, automation, and industrial equipment. It has a maximum operating temperature of 85°C and comes with a long mechanical life expectancy of 1,000,000 cycles ensuring reliable performance under intensive use.
The LED illumination requires an external resistor (typically 1,200 Ohms 0.5W) to limit the LED current to approximately 20mA. The switch complies with CSA and UL standards, providing assured quality and safety for industrial and commercial applications. This product is manufactured in China.
Commonly used in electrical assemblies, control panels, automation systems, and industrial machinery, the DPWL1CGKY switch is ideal for applications where compact, illuminated, momentary panel switches are required with reliable on/off control.
The switch's compact miniature size allows integration in tight panel spaces. The IP67 rating protects against dust ingress and water immersion. The yellow LED indicator improves user interface visibility and status indication.
Thermoplastic casing offers chemical and impact resistance. Browse our extensive selection of Push Button Switches from KNITTER-SWITCH and other trusted brands at EnvMart for your industrial, electrical, and automation control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C.
This switch has an IP67 rating, making it waterproof and dust-tight.
It features a single pole single throw (SPST) contact configuration suitable for on-off switching.
The required panel cutout size for this switch is 12.9 mm.
The switch supports a contact current of 400mA.
It operates at an AC voltage of up to 250V.
This switch has a black button style actuator.
The LED requires an external current limiting resistor, typically 1,200 Ohms 0.5W, to limit the current to approximately 20mA.
The switch has a mechanical life expectancy of at least 1,000,000 cycles.
It complies with CSA and UL standards for safety and quality.
This model is designed for panel mounting.
It is commonly used in electrical assemblies, control panels, automation systems, and industrial machinery.
