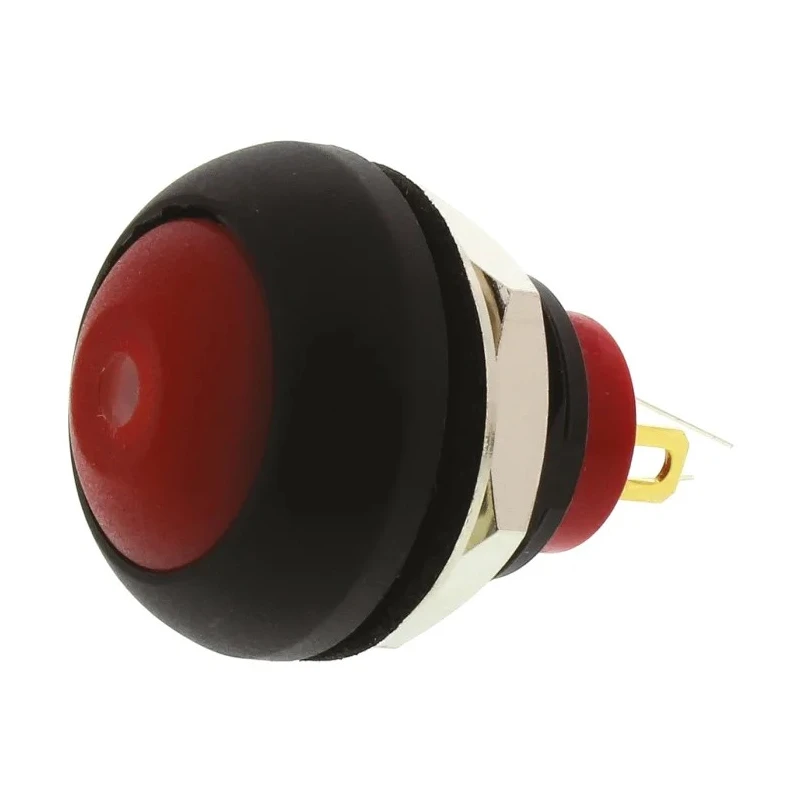

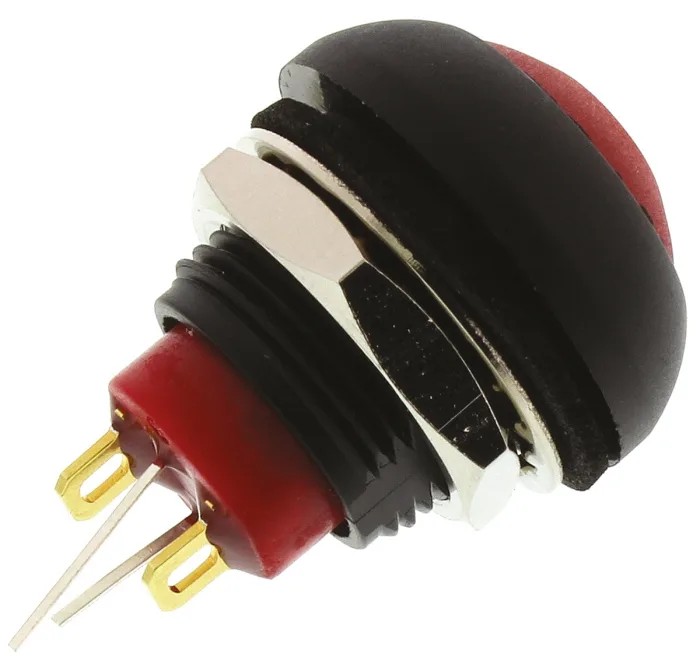

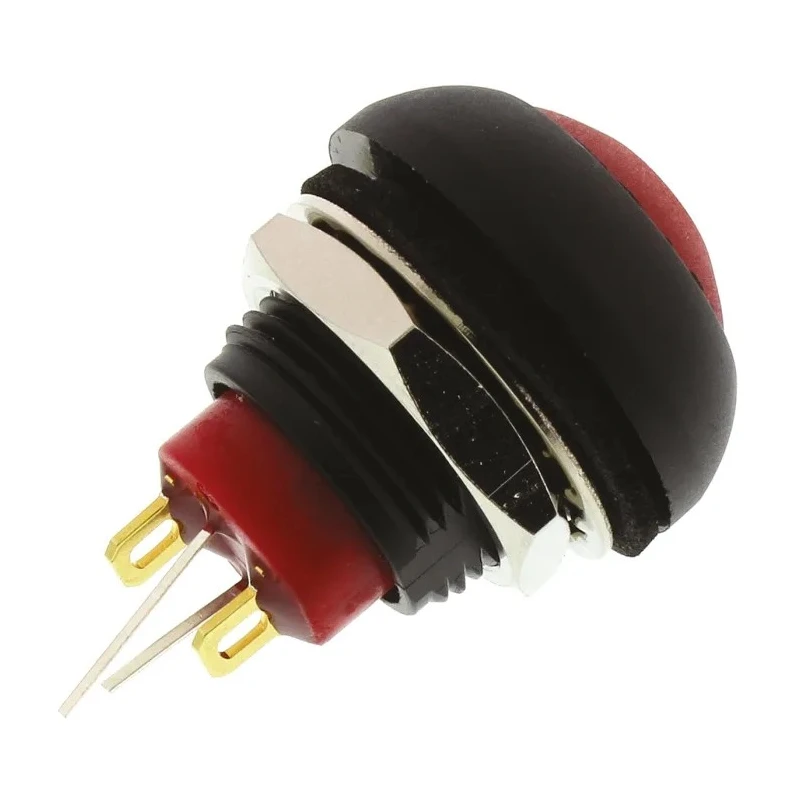

KNITTER-SWITCH DPWL Series Illuminated Miniature Push Button Switch, Momentary, Panel Mount, 12.9 mm Cutout, SPST DPWL1CGRG
Specifications
| Country of Origin | China |
|---|---|
| Brand | KNITTER-SWITCH |
| Model | DPWL1CGRG |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | DPWL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | On-Off |
| Panel Cutout Size | 12.9 mm |
| Terminal type | Solder |
| Standards/Approvals | CSA, UL |
| LED Colour | Green |
| Switch Operation | Momentary |
| Actuator Colour | Red |
| Actuator Style | Button |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 250V ac |
Key Features
- The switch is momentary with on-off operation and SPST contact configuration.
- It features a red actuator button and a green illuminated LED.
- Designed for panel mounting with a 12.9 mm panel cutout size.
- Provides IP67 waterproof rating suitable for harsh environments.
- Supports a contact AC voltage up to 250V and a contact current of 400mA.
- Constructed with a thermoplastic case offering high durability and a long mechanical life of 1,000,000 cycles.
- Operates reliably up to a maximum temperature of 85°C.
- Complies with CSA and UL safety standards for quality assurance.
Product Description
KNITTER-SWITCH DPWL1CGRG is an illuminated miniature push button switch designed for momentary operation with a panel mount installation requiring a 12.9 mm cutout size. The switch operates with a single-pole, single-throw (SPST) contact configuration and is equipped with a green LED indicator along with a red actuator button. It is engineered to meet demanding environmental conditions with an IP67 waterproof rating, protecting the internal components from dust and immersion in water.
The switch is housed in a robust thermoplastic case that ensures mechanical durability, boasting a long operational life exceeding 1,000,000 cycles. It supports an AC contact voltage rating of up to 250V and can handle a switch contact current of 400mA, making it suitable for various industrial control and automation applications.
The maximum operating temperature rating of the device is 85°C, allowing performance stability in elevated temperature conditions. This product complies with CSA and UL certifications, assuring conformity to established safety and quality standards. The LED requires a current-limiting resistor when used, typically a 1,200 Ohm 0.5W resistor for 24V LED operation.
This DPWL series switch is ideal for use in electrical panels, industrial automation systems, and other environments where reliable panel-mounted push button switches are needed. Its sealed design and quality approvals make it suitable for professional and demanding settings.
The switch is momentary with on-off operation and SPST contact configuration. It features a red actuator button and a green illuminated LED. Designed for panel mounting with a 12.9 mm panel cutout size. Provides IP67 waterproof rating suitable for harsh environments.
Supports a contact AC voltage up to 250V and a contact current of 400mA. Constructed with a thermoplastic case offering high durability and a long mechanical life of 1,000,000 cycles. Operates reliably up to a maximum temperature of 85°C.
Complies with CSA and UL safety standards for quality assurance. LED versions require a resistor to limit current, typically 1,200 Ohms 0.5W for 24V operation. Ideal for industrial, automation, and electrical control panel applications.
Explore a broad selection of Push Button Switches from KNITTER-SWITCH and other brands at EnvMart for reliable electrical component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C, allowing it to perform reliably in elevated temperature conditions.
This switch requires a panel cutout size of 12.9 mm for proper installation.
It features a single-pole, single-throw (SPST) contact configuration, suitable for on-off operation.
This model has an IP67 rating, making it waterproof and dust-tight, suitable for harsh environments.
The switch supports a contact AC voltage rating of up to 250V.
It can handle a switch contact current of 400mA.
This model complies with CSA and UL safety standards, ensuring quality assurance.
The actuator button is red, while the LED indicator is green.
The switch uses solder terminals for connection.
It boasts a long mechanical life of over 1,000,000 cycles.
For 24V LED operation, a current-limiting resistor of approximately 1,200 Ohms 0.5W is typically required.
It is suitable for various industrial control and automation applications, particularly in electrical panels.
