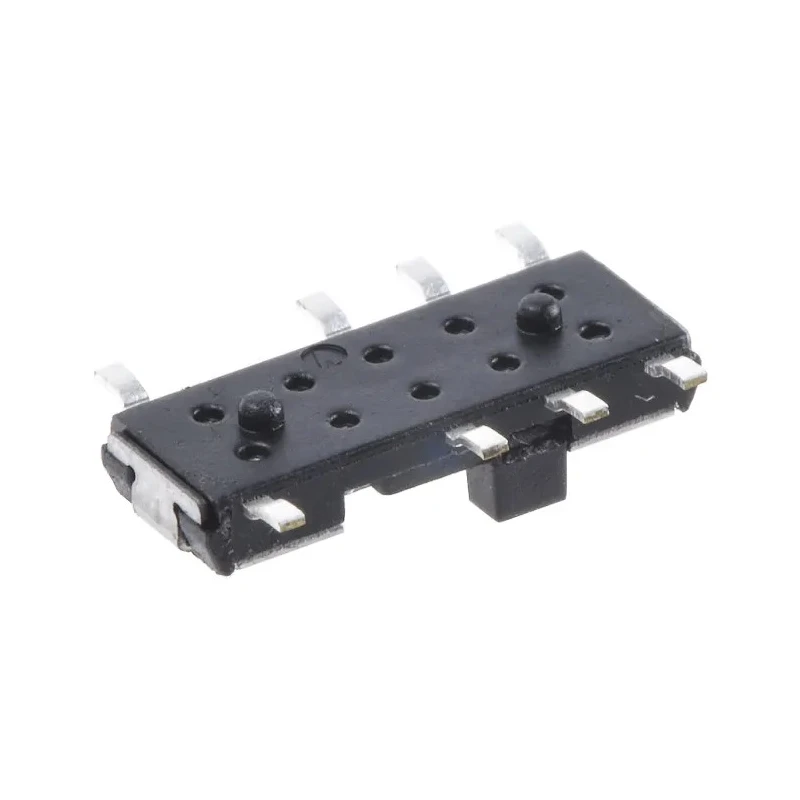

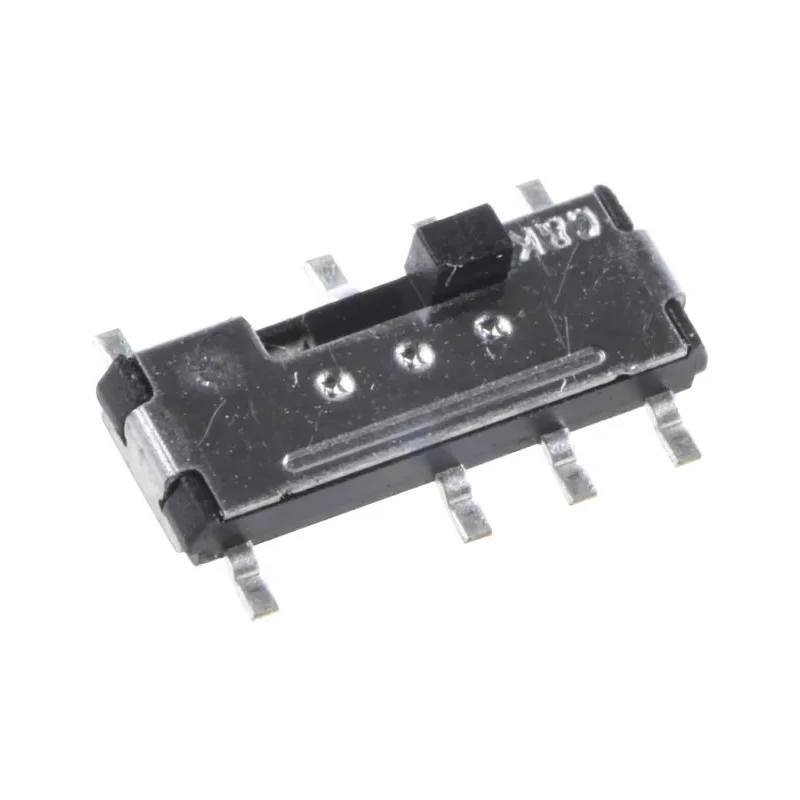

C & K PCB Slide Switch DP3T On-On-On 100mA Fibreglass Reinforced Nylon
Specifications
| Country of Origin | India |
|---|---|
| Brand | C & K |
| Length | 9.8mm |
| Model | DP3T |
| Depth | 3mm |
| Width | 4.5mm |
| Mount Type | PCB |
| Series | AYZ |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DP3T |
| Switch Configuration | On-On-On |
| Minimum Operating Temperature | -10°C |
| Terminal type | PC Terminal |
| Standards/Approvals | UL, RoHS |
| Switch Operation | On-On-On |
| Contact DC Voltage | 12V dc |
| Switch Contact Current | 100mA |
| Mechanical Life | 10000Operations |
| Actuator Material | Fibreglass Reinforced Nylon |
Key Features
- Compact dimensions with 9.8mm length and 4.5mm width make it ideal for PCB mounting.
- Switch configuration is triple pole triple throw (DP3T) with On-On-On operation.
- Supports contact DC voltage up to 12V dc for low power applications.
- Fibreglass reinforced nylon actuator provides mechanical strength and a long life of 10,000 operations.
- Meets UL and RoHS standards ensuring quality and environmental compliance.
- Maximum operating temperature is 60°C and minimum is -10°C suitable for standard environments.
- Terminal type is PC Terminal designed for direct PCB soldering without additional connectors.
- Non-illuminated design for basic switching functionality without indicator lights.
Product Description
C & K AYZ0203AGRLC PCB Slide Switch DP3T On-On-On 100mA is a miniature slide switch designed specifically for PCB mounting applications. Featuring a fibreglass reinforced nylon actuator and housing, this switch combines durability with compact size. It operates at 100mA contact current and supports DC voltages up to 12V, making it suitable for low power electronic circuits.
The DP3T (double pole triple throw) configuration with On-On-On switching operation enables flexible circuit connectivity and control. With physical dimensions of 9.8mm length, 4.5mm width, and 3mm depth, it fits snugly on printed circuit boards where space constraints are critical.
Reliability is ensured by a mechanical life rating of 10,000 operations, meaning it can withstand repeated switching cycles in industrial and commercial electronic devices. The switch is compliant with UL and RoHS certifications, ensuring safety and environmental standards are met.
The terminal type designed as PC Terminal allows straightforward soldering onto PCBs, facilitating manufacturing efficiency. Its operating temperature range of -10°C to 60°C makes it compatible with typical electronics and telecommunications equipment environments.
C & K AYZ Series miniature switches like this model are commonly used in telecommunications, test and measurement instruments, instrumentation panels, and various electronic control systems requiring reliable low-current switching components.
Compact footprint and low profile ideal for PCB mounting. Durable fibreglass reinforced nylon actuator and housing. DP3T On-On-On switch configuration for versatile circuit control. 100mA contact current rating with 12V DC voltage suitability.
Mechanical durability rated for 10,000 switch operations. UL and RoHS compliant for quality and environmental standards. Temperature operation range from -10°C to 60°C. Non-illuminated, suitable for basic switching applications.
Explore EnvMart’s wide selection of PCB Slide Switches and other electronic switch components for industrial, laboratory, manufacturing, and telecommunications uses.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this model is 100mA, making it suitable for low power electronic circuits.
It supports a maximum contact DC voltage of 12V, suitable for low power applications.
The dimensions of this switch are 9.8mm in length, 4.5mm in width, and 3mm in depth, making it compact for PCB mounting.
This switch has a mechanical life rating of 10,000 operations, ensuring it can withstand repeated use.
The operating temperature range for this unit is from -10°C to 60°C, suitable for typical electronics environments.
It features a PC Terminal type, designed for direct soldering onto printed circuit boards without additional connectors.
This model complies with UL and RoHS standards, ensuring quality and environmental compliance.
The switch configuration is DP3T (double pole triple throw) with On-On-On operation, allowing flexible circuit control.
The actuator is made of fibreglass reinforced nylon, providing mechanical strength and durability.
This switch is commonly used in telecommunications, test and measurement instruments, and various electronic control systems.
The non-illuminated design provides basic switching functionality without indicator lights, making it suitable for straightforward applications.
This model belongs to the C & K AYZ Series, which includes miniature switches designed for PCB mounting applications.
