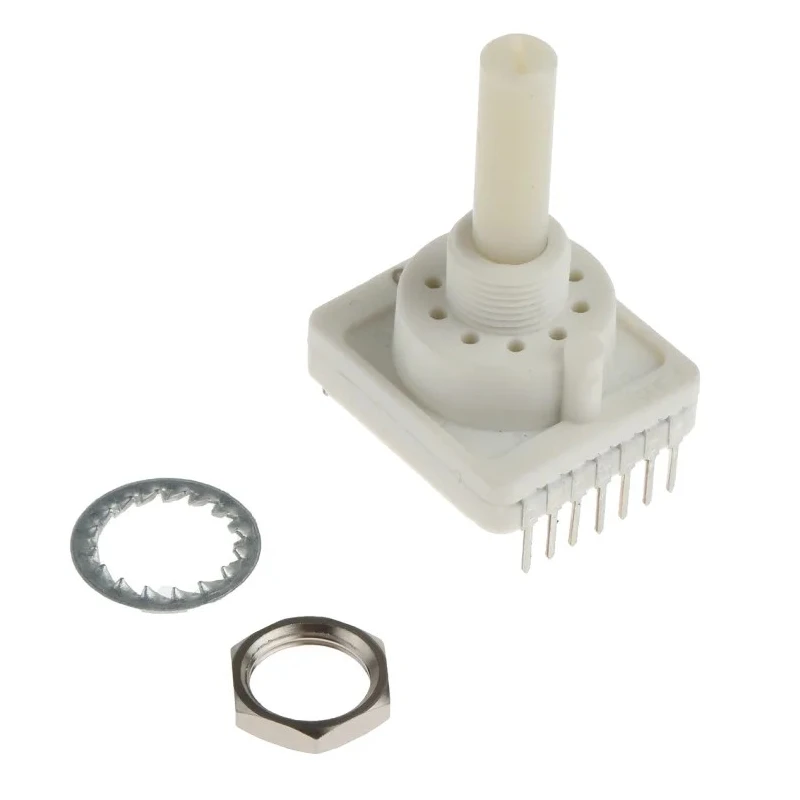

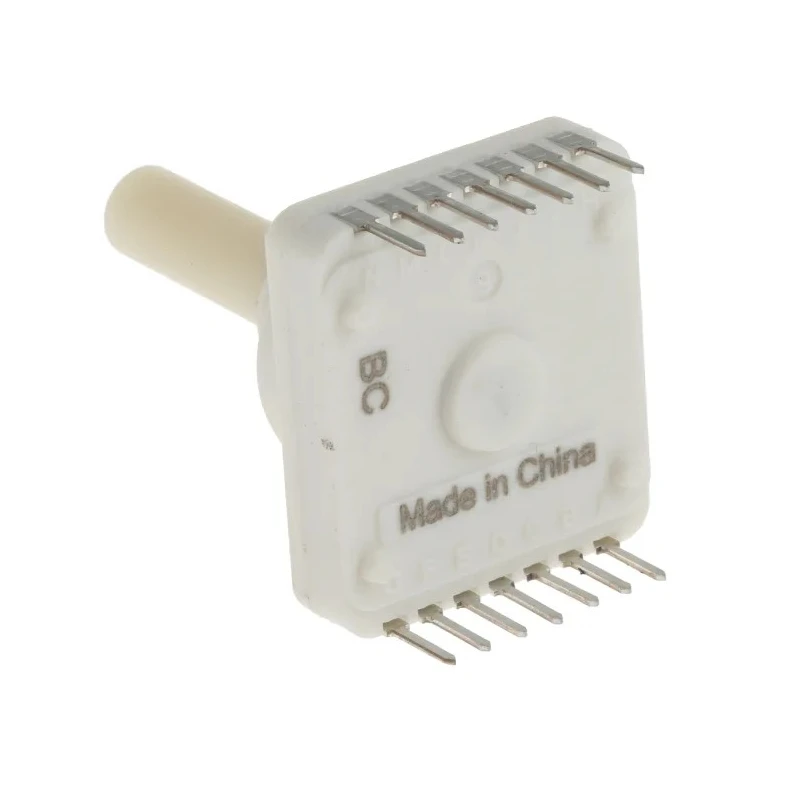

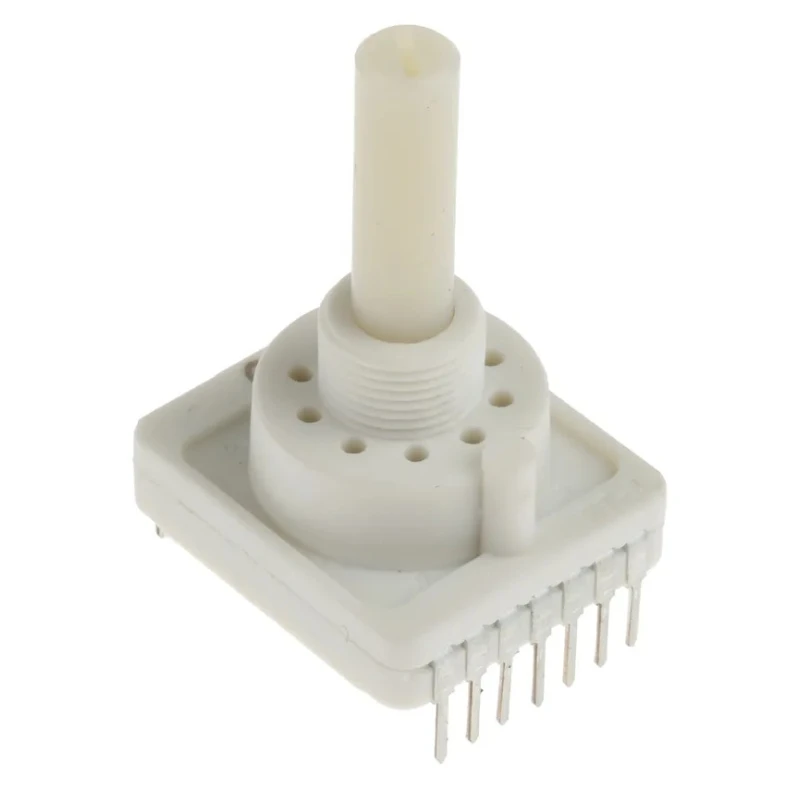

C & K 10 Position SPST Rotary Switch, 150mA, Through Hole PCB Mount Thermoplastic Housing RTAP4ES10M25NS

C & K RTAP4ES10M25NS is a high-precision 10 Position SPST Rotary Switch engineered for industrial and manufacturing applications requiring precise switch control. It features a robust thermoplastic housing and through-hole terminal type suitable for PCB mounting, allowing straightforward integration into control panels and electronic devices.

The switch employs a BCD 10-position mechanism with silver-plated brass, break-before-make contacts guaranteeing reliable and consistent switching performance. Rated for a maximum switch contact current of 150mA and supporting both AC and DC voltages up to 60 volts, it ensures dependable electrical characteristics for low-voltage circuits.

Its mechanical design supports up to 10,000 operational cycles with an angle of throw of 36 degrees, providing tactile feedback and precise position control. The switch dimensions - 43.6mm height, 25.8mm width, 22mm depth - make it compact yet practical for use in various electrical and automation systems.

This rotary switch is suitable for use in industrial automation, electrical equipment, instrumentation, and laboratory applications. It withstands operating temperatures from -20°C to 70°C and incorporates RoHS compliant materials, affirming its environmental and safety compliance.

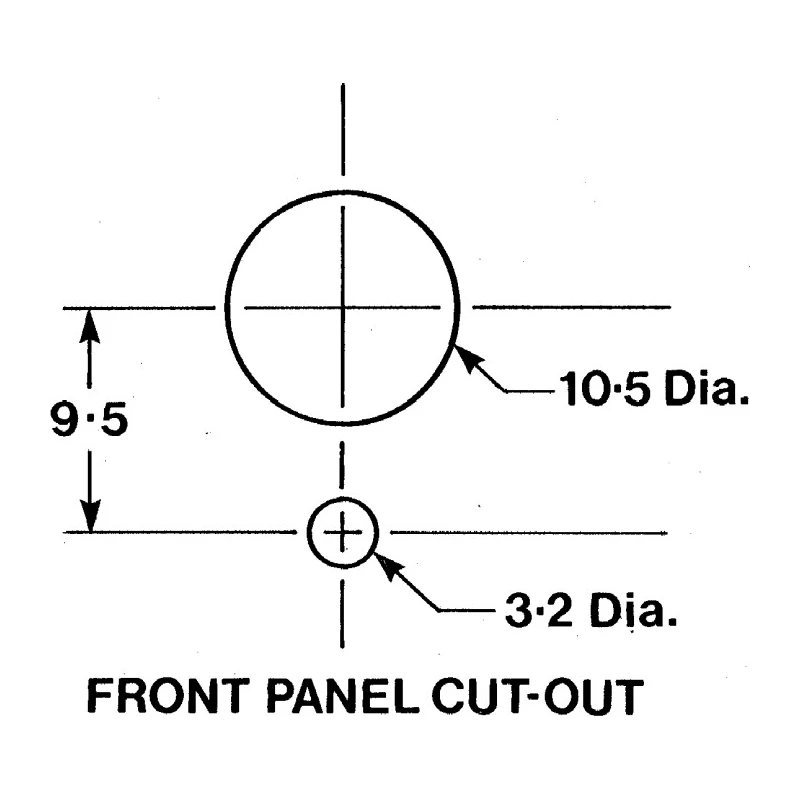

The device is panel mountable using its threaded M10 mounting bush and requires a panel cut-out of 10.5mm diameter for installation. The shaft diameter of 6mm secures ergonomic operation with standard rotary switch actuators. Non-illuminated, it is ideal for applications where visual indication is not required.

Features a 10-position BCD operation with SPST contact configuration. Durable thermoplastic housing with through-hole PCB mounting terminals. Supports a 150mA switch contact current at 60V AC/DC. Compact dimensions facilitate integration into electronic assemblies.

Mechanical life of 10,000 cycles ensures reliability over time. RoHS compliant for environmental safety standards. Operating temperature range from minus 20 to 70 degrees Celsius. Panel mountable with included threaded M10 bush and specified panel cut-out size.

Silver-plated brass contacts for enhanced conductivity and durability. Non-illuminated type with a 36-degree angle of throw between positions. Explore more high-quality Rotary Switches and related electrical components at EnvMart for your industry automation, control systems, and electrical design needs.
