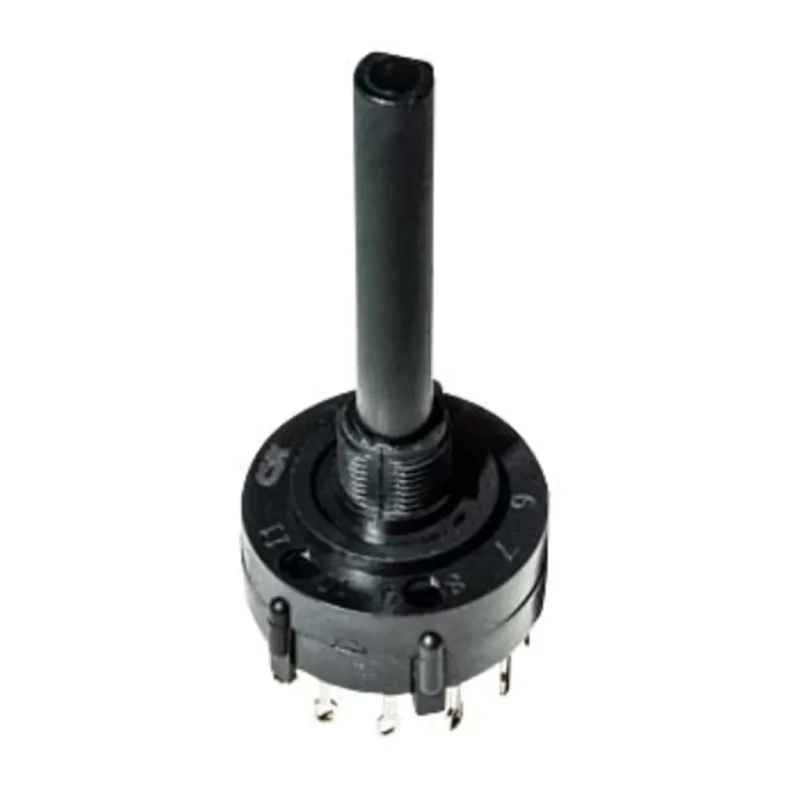

C & K 4 Position SP4T Rotary Switch, 2.5A, Terminal, Panel Mount, Black Actuator SP4T

C & K SP4T 4 Position SP4T Rotary Switch is a high-quality rotary switch designed for panel mounting in electrical, automation, and cable systems. It supports a switch contact current of 2.5 amperes and operates safely up to 125 volts AC or DC, ensuring versatility in multiple industrial and commercial applications.

The switch features a robust housing made from glass filled polyamide 66, providing durability and resistance to environmental stresses. It offers a 4-position, single-pole four-throw (SP4T) configuration with a 90° angle of throw, providing reliable and precise switching action.

The actuator is black-colored and the switch is designed for panel mounting, with compact dimensions measuring 26.2 mm in diameter, 26.19 mm in width, 14.48 mm depth, and a height of 58.94 mm. This compact form factor is ideal for applications where space is limited.

This rotary switch operates reliably between -30°C to +85°C, making it suitable for a broad range of industrial, automotive, consumer electronics, telecommunication devices, HVAC, and building automation systems. It offers a mechanical life expectancy of 15,000 cycles, making it a durable choice for long-term use.

The terminal type is terminal screws, facilitating secure and straightforward wiring. The product fully complies with industry standards including cULus, RoHS, and UL 94 V-0 for safety, environmental care, and flammability resistance.

This rotary switch features a 4-position SP4T contact configuration for versatile switching needs. Constructed with glass filled polyamide 66 housing for enhanced durability. Panel mounting ensures secure installation in diverse environments.

Operates within -30°C to 85°C temperature range suitable for industrial and consumer applications. The actuator is black-colored with a 90° angle of throw for precise mechanical operation. Supports a maximum voltage of 125V AC and 125V DC for reliable electrical performance.

Mechanical life rated at 15,000 cycles offering long-term usage reliability. Compact dimensions of 26.2mm diameter and 58.94mm height for space-saving integration. Terminals use screw terminal type for easy wiring and maintenance.

Complies with cULus, RoHS, and UL 94 V-0 standards ensuring safety and environmental compliance.

This Rotary Switch is ideal for industries such as automotive manufacturing, industrial equipment, HVAC air conditioning systems, telecommunications, consumer electronics, test and medical equipment, and building automation. Its positive detent, multi-pole, and multi-position design support applications requiring reliable and repeatable switching.
