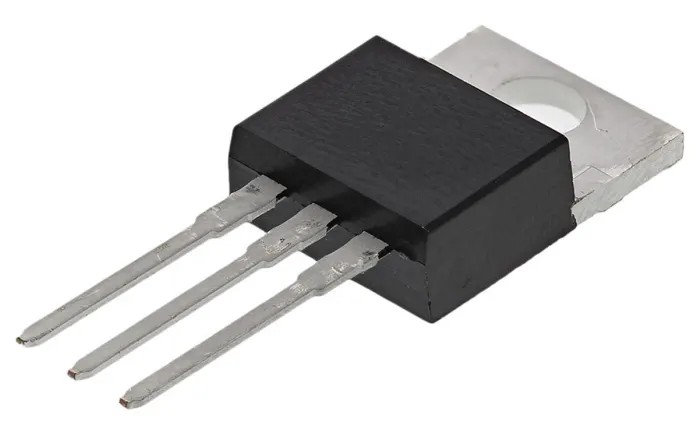

STMicroelectronics Through Hole 3-Pin TRIAC 800 V Gate Trigger 1.3 V BTB16-600SWRG
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 15.9mm |
| Length | 10.4mm |
| Model | BTB16-600SWRG |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 16A |
| Repetitive Peak Reverse Voltage VDRM | 800V |
| Surge Current Rating | 168A |
| Maximum Gate Trigger Current Igt | 10mA |
| Maximum Holding Current Ih | 15mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Peak On-State Voltage | 1.55V |
| Repetitive Peak Off-State Current | 2mA |
| Peak Gate Power Dissipation | 1W |
Key Features
- Rated average on-state current is 16 amperes for robust power control.
- Designed with TO-220 package for efficient heat dissipation.
- Maximum gate trigger current is 10 milliamperes, enabling precise actuation.
- Supports repetitive peak reverse voltage of 800 volts for high voltage environments.
- Surge current rating of 168 amperes, suitable for transient conditions.
- Operating temperature range from -40°C to 125°C for versatile applications.
- Compact dimensions with height 15.9 mm and length 10.4 mm for space-saving designs.
- Single configuration with 3 pins for through-hole mounting on PCBs.
Product Description
STMicroelectronics BTB16-600SWRG is a high-performance, through-hole mounted TRIAC designed for AC power control applications. Featuring a 3-pin TO-220 package, this device supports an 800 V repetitive peak reverse voltage, making it suitable for industrial and consumer electronics where dependable high-voltage switching is required. The low gate trigger voltage of 1.3 V and gate trigger current of 10 mA allow for precise and efficient control of the TRIAC.
This TRIAC handles an average on-state current of 16 A and a surge current rating of 168 A, enabling reliable operation during transient surges. The device operates effectively across a wide temperature range from -40°C to 125°C, ensuring performance stability under harsh environmental conditions.
The compact design, with a height of 15.9 mm and length of 10.4 mm, facilitates integration into space-constrained applications. Its single configuration with a 3-pin layout supports straightforward through-hole PCB mounting, ideal for power control circuits in industrial automation, motor control, lighting systems, and HVAC equipment.
Rated average on-state current of 16 amperes for reliable power switching. TO-220 package type enhances thermal management during operation. Maximum gate trigger current of 10 milliamperes for efficient triggering. Repetitive peak reverse voltage of 800 volts suitable for high-voltage applications.
Surge current rating of 168 amperes supports transient power spikes. Temperature range from -40°C to 125°C for extended operational conditions. Compact dimensions of 15.9 mm height and 10.4 mm length. Single configuration with 3 pins for easy through-hole PCB mounting.
Low peak on-state voltage of 1.55 volts for energy-efficient switching. Peak gate power dissipation of 1 watt ensuring operational reliability.
This TRIAC from STMicroelectronics is essential for applications requiring precise and durable semiconductor switching components, including industrial machinery control, lighting dimmers, and energy management systems. Its robust electrical characteristics and packaging make it a dependable choice for semiconductors professionals and electronics engineers.
Explore more high-quality semiconductor components and TRIACs suitable for demanding industrial and commercial electronics projects on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current for this model is 16 amperes, suitable for reliable power switching applications.
This TRIAC supports a maximum repetitive peak reverse voltage of 800 volts, making it suitable for high-voltage environments.
The surge current rating of this model is 168 amperes, allowing it to handle transient power spikes effectively.
The maximum gate trigger current for this TRIAC is 10 milliamperes, enabling precise actuation.
The dimensions of this model are 15.9 mm in height and 10.4 mm in length, facilitating integration into space-constrained applications.
This TRIAC operates effectively across a temperature range from -40°C to 125°C, ensuring performance stability under various conditions.
It supports through-hole mounting, which is ideal for PCB integration in various applications.
The package type for this model is TO-220, designed for efficient heat dissipation during operation.
This TRIAC has a single configuration with 3 pins, suitable for straightforward PCB mounting.
The peak on-state voltage for this model is 1.55 volts, contributing to energy-efficient switching.
The maximum holding current for this TRIAC is 15 milliamperes, which is important for maintaining operation once triggered.
This TRIAC is suitable for applications in industrial automation, motor control, lighting systems, and HVAC equipment.
