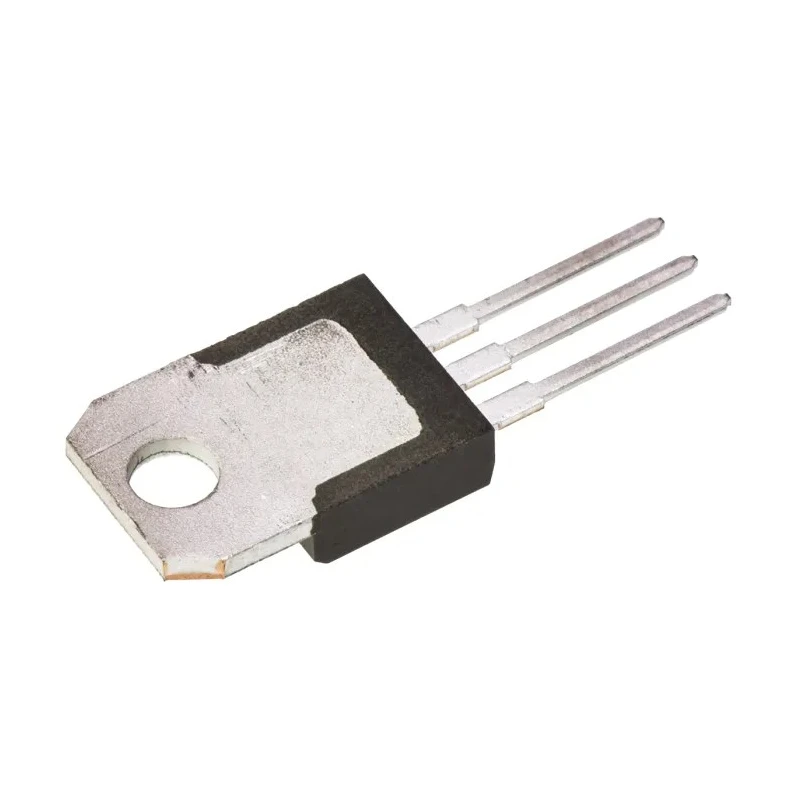

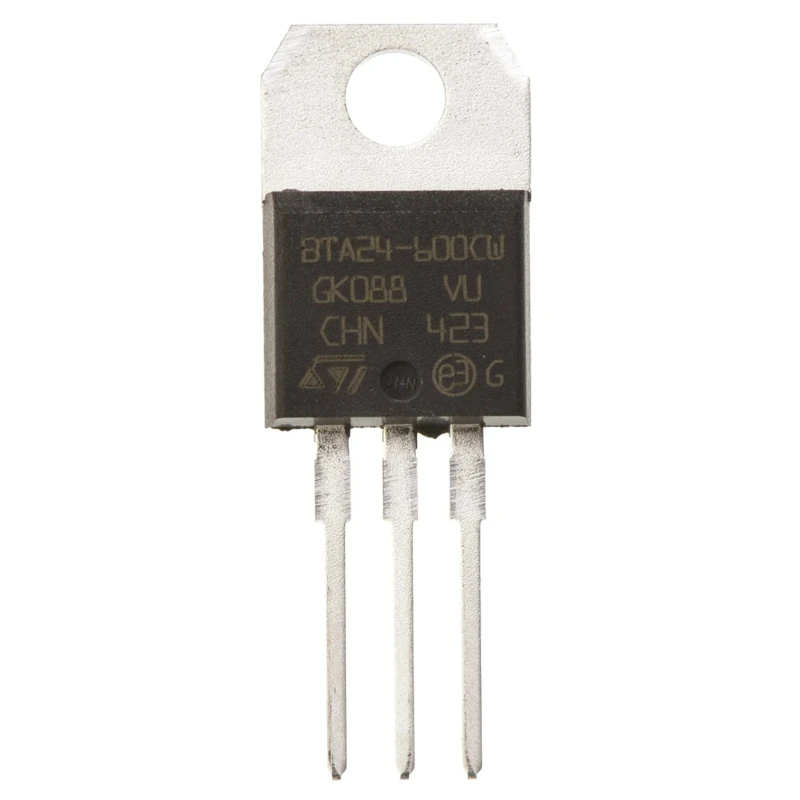

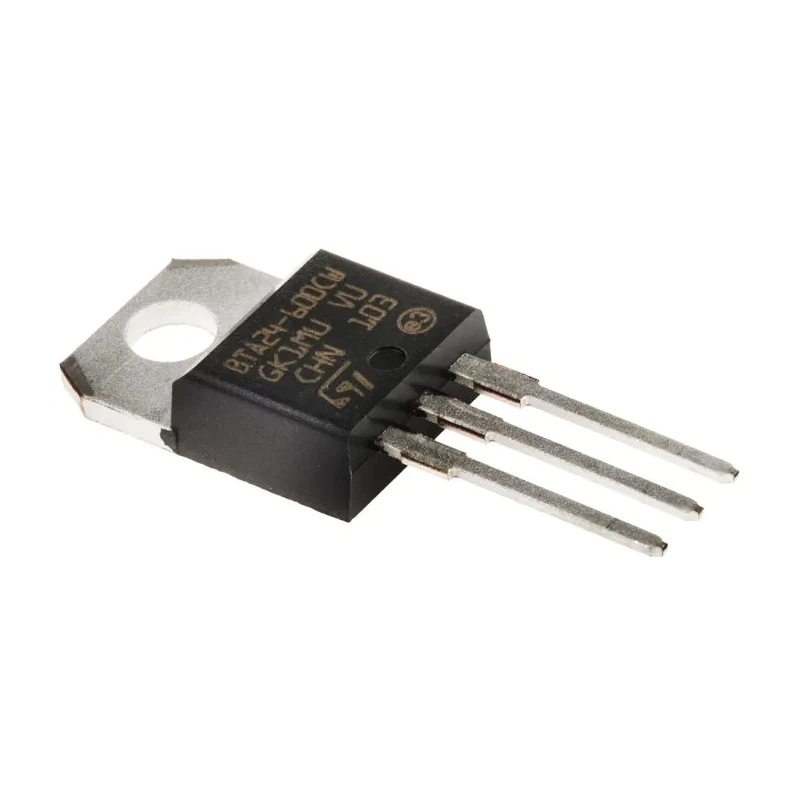

STMicroelectronics Through Hole 3-Pin TRIAC 600 V, Gate Trigger 1.3 V BTA24-600CWRG
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.3mm |
| Length | 10.4mm |
| Model | BTA24-600CWRG |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 25A |
| Repetitive Peak Reverse Voltage VDRM | 600V |
| Surge Current Rating | 260A |
| Maximum Gate Trigger Current Igt | 35mA |
| Maximum Holding Current Ih | 50mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Peak On-State Voltage | 1.55V |
| Repetitive Peak Off-State Current | 5μA |
| Peak Gate Power Dissipation | 1W |
Key Features
- Rated average on-state current is 25 A.
- Featuring a TO-220 package with a through-hole mount type.
- Maximum gate trigger current is 35 mA for reliable triggering.
- Can withstand surge currents of up to 260 A.
- Operates within a temperature range from -40°C to 125°C.
- Low repetitive peak off-state current of 5 μA for energy efficiency.
- Peak on-state voltage of 1.55 V ensuring low conduction losses.
- Designed for single configuration with 3 pins.
Product Description
STMicroelectronics BTA24-600CWRG through hole 3-pin TRIAC is engineered for AC power control with robust electrical characteristics and reliable performance, rated at 600 V and featuring a gate trigger voltage of 1.3 V. This TRIAC is packaged in a TO-220 configuration, allowing easy mounting through holes on PCBs, making it suitable for industrial automation, HVAC systems, motor controls, and lighting control applications.
It supports a rated average on-state current of 25 A with a surge current capability up to 260 A, ensuring it can handle transient electrical conditions effectively. The maximum gate trigger current of 35 mA ensures efficient gate drive requirements. With operating temperature limits from -40°C to 125°C, it is suitable for harsh environmental conditions.
This single configuration TRIAC features 3 pins and compact dimensions of 9.3 mm in height and 10.4 mm in length, facilitating integration within space-constrained circuits. The low peak off-state current of 5 μA minimizes power loss during off states, while the peak on-state voltage of 1.55 V reduces conduction losses, contributing to overall energy efficiency.
The device is designed without specific automotive or industrial standards certifications but meets the necessary technical specifications for various discrete semiconductor applications in power electronics. It is ideal for use in manufacturing equipment, industrial electronic devices, and commercial electronic assemblies requiring reliable and efficient AC switching capability.
Rated average on-state current of 25 A. TO-220 package with through-hole mounting. Maximum gate trigger current of 35 mA. Surge current rating of 260 A. Operating temperature range from -40°C to 125°C. Compact size with 9.3 mm height and 10.4 mm length.
Low repetitive peak off-state current at 5 μA. Peak on-state voltage of 1.55 V. Three-pin single configuration. Application in industrial, HVAC, motor control, and commercial electronic power switching. Explore more semiconductor power components and TRIAC devices on EnvMart to find the optimal solution for your electronic control requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current for this model is 25 A.
It has a surge current rating of up to 260 A.
The maximum gate trigger voltage is 1.3 V.
This unit operates within a temperature range from -40°C to 125°C.
It comes in a TO-220 package with a through-hole mounting style.
The dimensions are 9.3 mm in height and 10.4 mm in length.
The peak on-state voltage is 1.55 V, which helps reduce conduction losses.
The repetitive peak off-state current is low at 5 μA.
The maximum gate trigger current is 35 mA.
It is suitable for applications in industrial automation, HVAC systems, motor controls, and lighting control.
The maximum holding current for this model is 50 mA.
This TRIAC features a single configuration with 3 pins.
